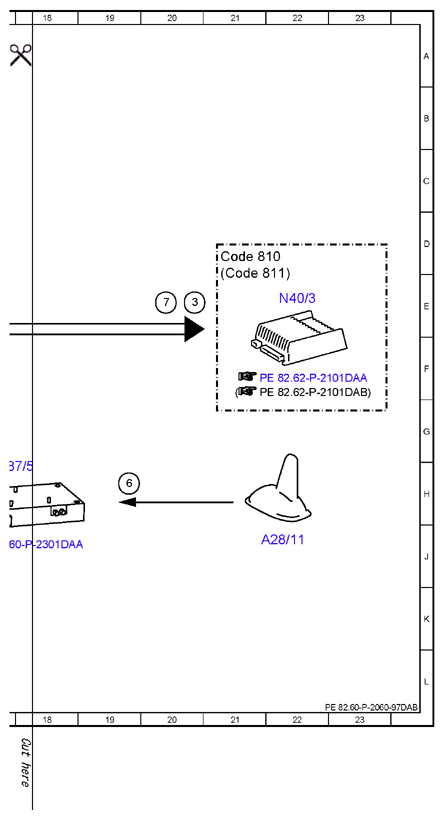

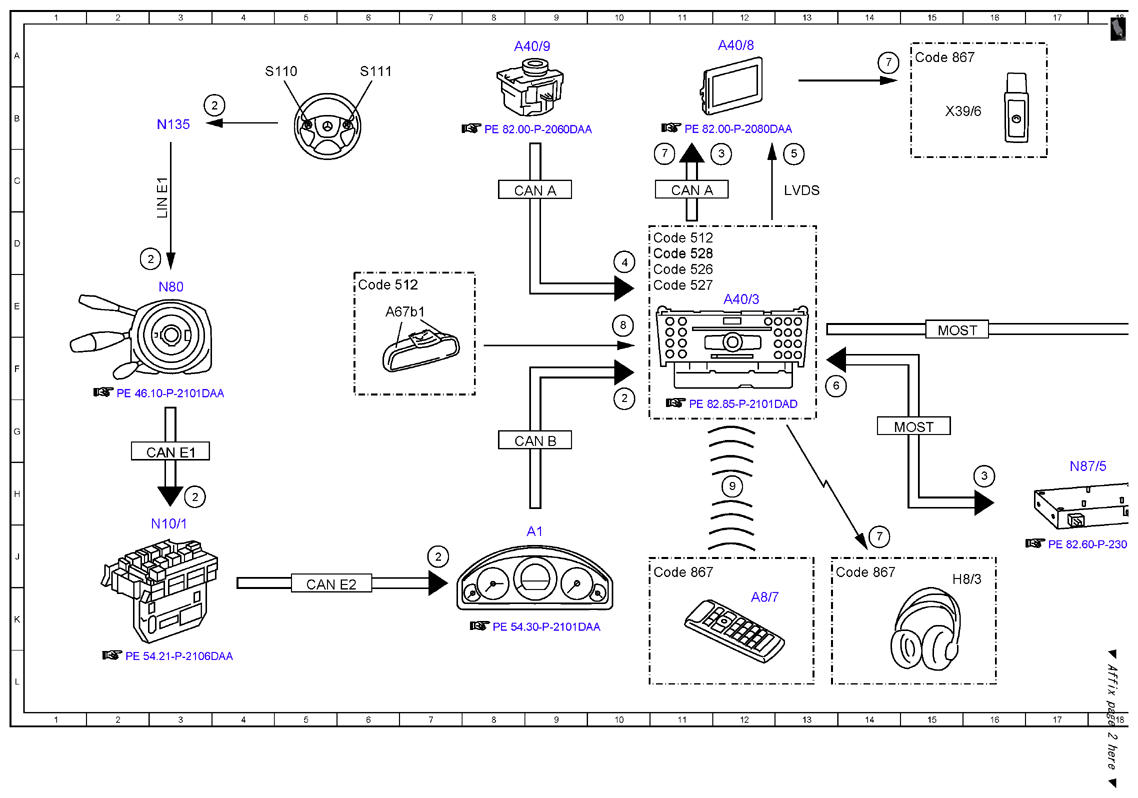

Electrical function schematic for SDAR function - PE82.60-P-2060-97DAB
MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 536 (SIRIUS satellite radio)
| Code: | Designation: | Position: |
|---|---|---|
| 2 | Multifunction steering wheel button group, signal | 2D |
| 2 | Multifunction steering wheel button group, signal | 7J |
| 2 | Multifunction steering wheel button group, signal | 10G |
| 2 | Multifunction steering wheel button group, signal | 4B |
| 2 | Multifunction steering wheel button group, signal | 3H |
| 3 | Switch-on request, signal | 12C |
| 3 | Switch-on request, signal | 20E |
| 3 | Switch-on request, signal | 16H |
| 4 | Audio/COMAND controller, request | 10D |
| 5 | Audio/COMAND display, message | 13C |
| 6 | SDAR antenna, signal | 13F |
| 6 | SDAR antenna, signal | 19H |
| 7 | Audio, signal | 20E |
| 7 | Audio, signal | 11C |
| 7 | Audio, signal | 14J |
| 7 | Audio, signal | 14A |
| 8 | Voice input, signal | 10E |
| 9 | Operation, signal | 12H |
| A1 | Instrument cluster | 9J |
| A28/11 | Multifunction antenna | 21J |
| A40/3 | COMAND control unit | 12E |
| A40/8 | Audio/COMAND display | 12A |
| A40/9 | Audio/COMAND control panel | 8A |
| A67b1 | Hands-free system microphone | 6E |
| A8/7 | Remote control | 12K |
| CAN A | Telematics CAN | 9C |
| CAN A | Telematics CAN | 11C |
| CAN B | Interior CAN | 9G |
| CAN E1 | Chassis CAN 1 | 3G |
| CAN E2 | Chassis CAN 2 | 5K |
| Code 512 | COMAND APS with DVD changer | 6E |
| Code 512 | COMAND APS with DVD changer | 11D |
| Code 526 | COMAND with single DVD drive (without navigation) | 11D |
| Code 527 | COMAND APS (with navigation) | 11E |
| Code 528 | COMAND with DVD changer | 11D |
| Code 810 | Sound system | 21D |
| Code 811 | Extended sound system | 21E |
| Code 867 | SPLITVIEW | 13J |
| Code 867 | SPLITVIEW | 11J |
| Code 867 | SPLITVIEW | 15A |
| H8/3 | Radio frequency headphones | 15J |
| LIN E1 | Steering LIN | 3C |
| LVDS | Low voltage differential signal | 13C |
| MOST | Media Oriented System Transport | 15G |
| MOST | Media Oriented System Transport | 15E |
| N10/1 | Front SAM control unit with fuse and relay module | 3J |
| N135 | Steering wheel electronics | 3B |
| N40/3 | Sound system amplifier control unit | 22E |
| N80 | Steering column module control unit | 3E |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 17H |
| S110 | Left multifunction steering wheel button group | 4A |
| S111 | Right multifunction steering wheel button group | 6A |
| X39/6 | Headphones electrical connector (cabled) | 15B |
