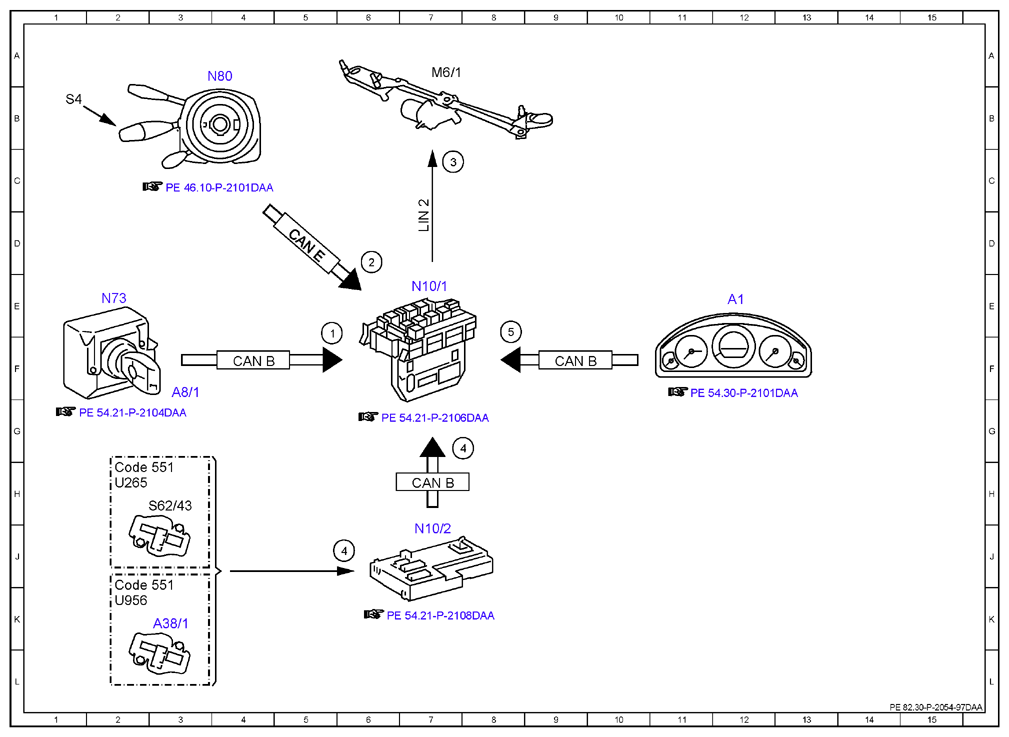

Electrical function diagram for windshield wipe-stop function - PE82.30-P-2054-97DAA
MODEL 212.0 /2 with CODE (551) Anti-theft alarm system (ATA [EDW])
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 2 | Combination switch, status | 6D |
| 3 | Wiper motor, actuation | 7C |
| 4 | Engine hood contact switch, status | 8G |
| 4 | Engine hood contact switch, status | 6J |
| 5 | Vehicle speed, signal | 8E |
| A1 | Instrument cluster | 12E |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 3K |
| A8/1 | Transmitter key | 3F |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 7H |
| CAN E | Chassis CAN | 5D |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 2H |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 2K |
| LIN 2 | Wiper/inside rearview mirror LIN | 7D |
| M6/1 | Wiper motor | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N10/2 | Rear SAM control unit with fuse and relay module | 7J |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 3A |
| S4 | Combination switch | 1B |
| S62/43 | Left engine hood contact switch | 3H |
| U265 | Not valid for pedestrian protection | 2H |
| U956 | Valid for pedestrian protection | 2K |
