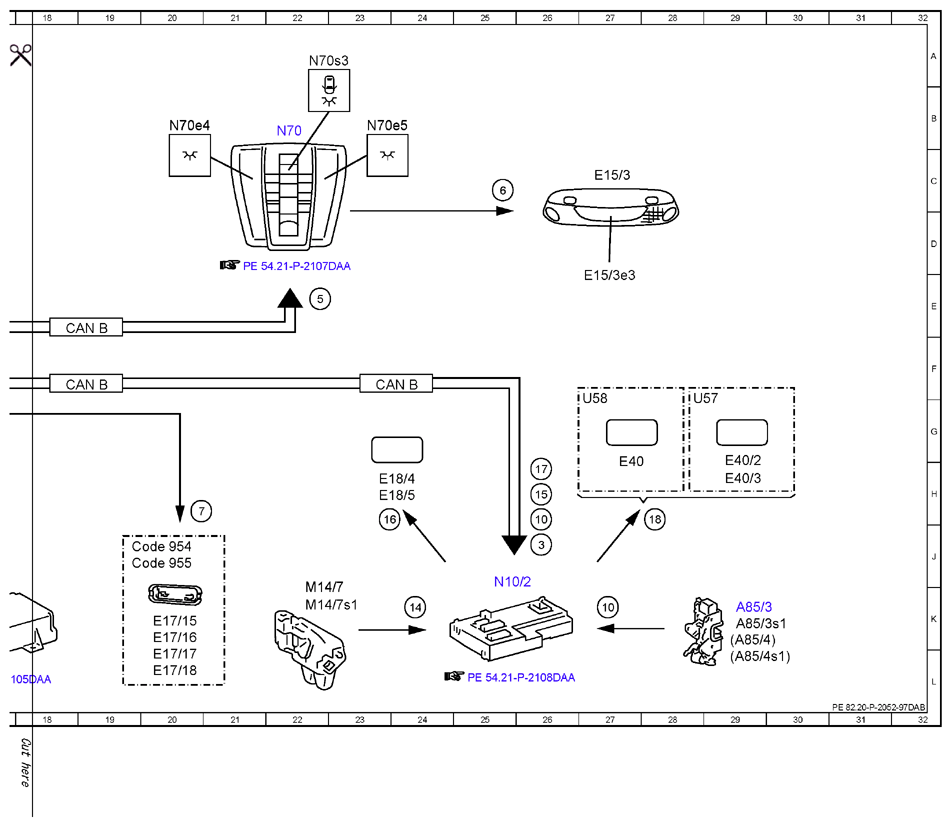

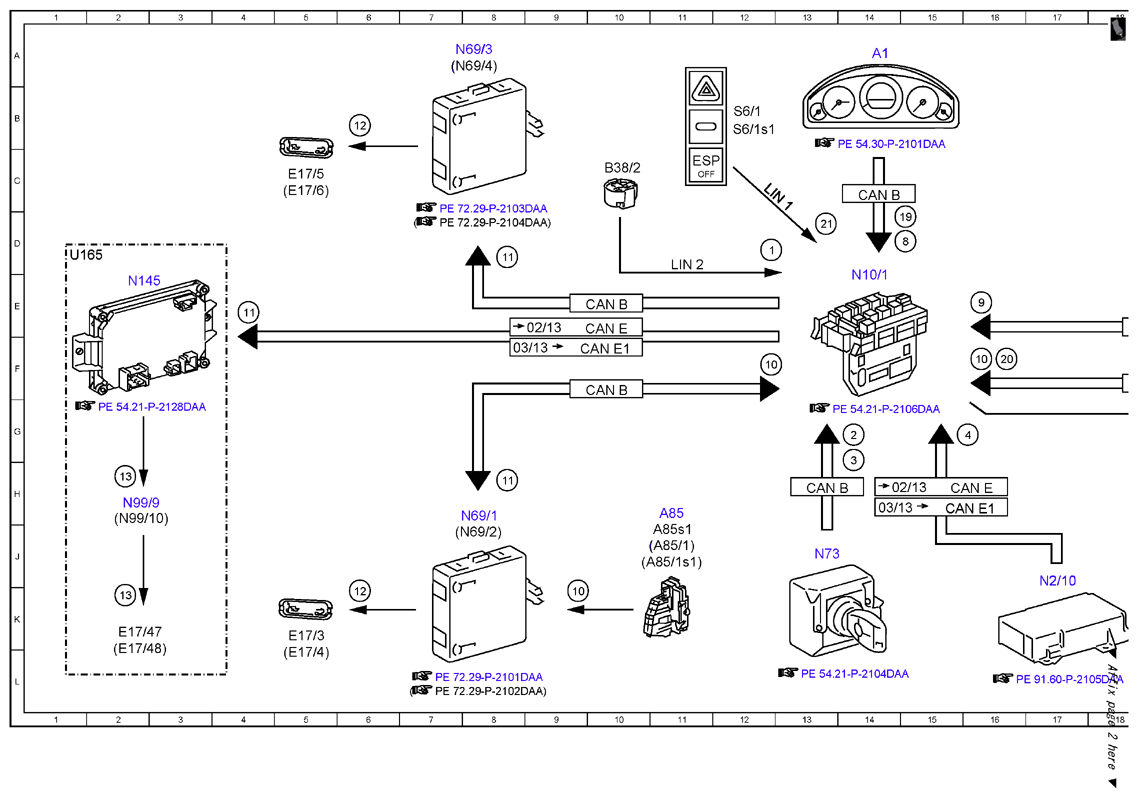

Automatic interior lights control electrical function schematic - PE82.20-P-2052-97DAB
MODEL 212 with CODE 414 (Power glass tilting/sliding roof)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Rain/light sensor, status | 12D |
| 10 | Door rotary tumbler switch, status | 9K |
| 10 | Door rotary tumbler switch, status | 12F |
| 10 | Door rotary tumbler switch, status | 16F |
| 10 | Door rotary tumbler switch, status | 27K |
| 10 | Door rotary tumbler switch, status | 26H |
| 11 | Exit and warning lamp, request | 8H |
| 11 | Exit and warning lamp, request | 8D |
| 11 | Exit and warning lamp, request | 4E |
| 12 | Exit and warning lamp, actuation | 6K |
| 12 | Exit and warning lamp, actuation | 6B |
| 13 | Illuminated door sill molding actuation | 2K |
| 13 | Illuminated door sill molding actuation | 2H |
| 14 | Rotary tumbler switch, status | 24K |
| 15 | Trunk illumination, request | 26H |
| 16 | Trunk illumination, actuation | 23H |
| 17 | Ambient lamp, request | 26H |
| 18 | Ambient lamp, actuation | 28H |
| 19 | Vehicle speed, signal | 15D |
| 2 | Central locking (CL[ZV]), status | 14G |
| 20 | ATA [EDW] alarm, signal | 16F |
| 21 | Hazard warning flasher switch, status | 13D |
| 3 | Circuit 15, status | 14H |
| 3 | Circuit 15, status | 26J |
| 4 | Crash, signal | 16G |
| 5 | Interior lamp, request | 22E |
| 6 | Interior lamp, actuation | 25C |
| 7 | Footwell lamp, actuation | 20H |
| 8 | OFF delay time, status | 15D |
| 9 | Automatic function switch, status | 16E |
| A1 | Instrument cluster | 14A |
| A85 | Left front door lock | 11H |
| A85/1 | Right front door lock | 11J |
| A85/1s1 | Right front door rotary tumbler switch | 11J |
| A85/3 | Left rear door lock | 29K |
| A85/3s1 | Left rear door rotary tumbler switch | 29K |
| A85/4 | Right rear door lock | 29K |
| A85/4s1 | Right rear door rotary tumbler switch | 29L |
| A85s1 | Left front door rotary tumbler switch | 11J |
| B38/2 | Rain/light sensor | 10C |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 19F |
| CAN B | Interior CAN | 10E |
| CAN B | Interior CAN | 14C |
| CAN B | Interior CAN | 19E |
| CAN B | Interior CAN | 23F |
| CAN E | Chassis CAN | 10E |
| CAN E | Chassis CAN | 16H |
| CAN E1 | Chassis CAN 1 | 10F |
| CAN E1 | Chassis CAN 1 | 15H |
| Code 954 | AVANTGARDE | 19J |
| Code 955 | ELEGANCE | 19J |
| E15/3 | Rear dome lamp | 27C |
| E15/3e3 | Rear interior lamp | 27E |
| E17/15 | Right front footwell lamp | 20K |
| E17/16 | Left front footwell lamp | 20K |
| E17/17 | Left rear footwell lamp | 20L |
| E17/18 | Right rear footwell lamp | 20L |
| E17/3 | Left front door exit and warning lamp | 5K |
| E17/4 | Right front door exit and warning lamp | 5L |
| E17/47 | Left front illuminated door sill molding | 2K |
| E17/48 | Right front illuminated door sill molding | 2L |
| E17/5 | Left rear door exit and warning lamp | 5C |
| E17/6 | Right rear door exit and warning lamp | 5C |
| E18/4 | Right luggage compartment lamp | 23H |
| E18/5 | Left luggage compartment lamp | 23H |
| E40 | Trunk lid ambient lamp | 27H |
| E40/2 | Left tailgate ambient lamp and warning lamp | 29H |
| E40/3 | Right tailgate ambient lamp and warning lamp | 29H |
| LIN 1 | Instrument panel LIN | 12C |
| LIN 2 | Wiper/inside rearview mirror LIN | 11D |
| M14/7 | Central Motor trunk lid | 22K |
| M14/7s1 | Switch rotary latch trunk lid | 22K |
| N10/1 | Front SAM control unit with fuse and relay module | 14E |
| N10/2 | Rear SAM control unit with fuse and relay module | 25J |
| N145 | Transmission mode control unit | 2E |
| N2/10 | Supplemental restraint system control unit | 17J |
| N69/1 | Left front door control unit | 8H |
| N69/2 | Right front door control unit | 8J |
| N69/3 | Left rear door control unit | 8A |
| N69/4 | Right rear door control unit | 8A |
| N70 | Overhead control panel control unit | 22B |
| N70e4 | Left front interior lamp | 20B |
| N70e5 | Right front interior lamp | 23B |
| N70s3 | Interior lamp automatic function switch | 22A |
| N73 | Electronic ignition switch control unit | 13J |
| N99/10 | Right front illuminated door sill molding voltage converter | 2H |
| N99/9 | Left front illuminated door sill molding voltage converter | 2H |
| S6/1 | Instrument panel switch group | 12B |
| S6/1s1 | Hazard warning flasher switch | 12B |
| U165 | Valid for AMG | 1D |
| U57 | Valid for model 212.2 | 28G |
| U58 | Valid for model 212.0/1 | 27G |
