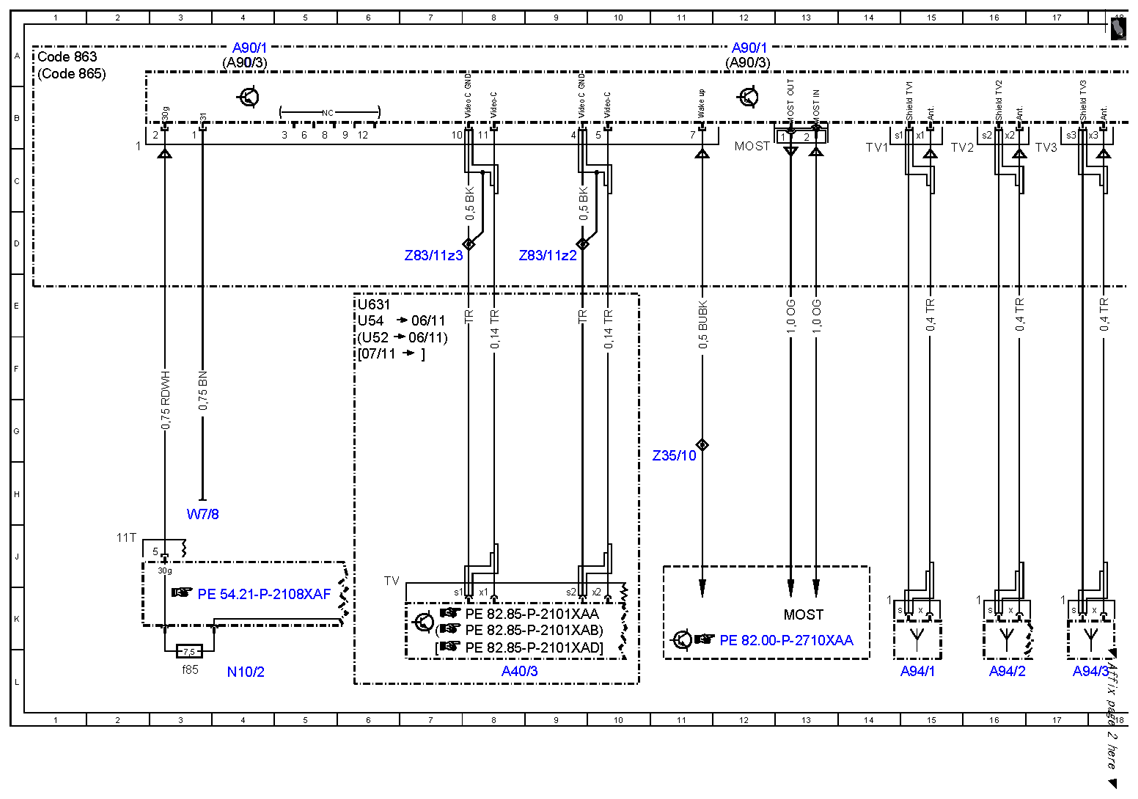

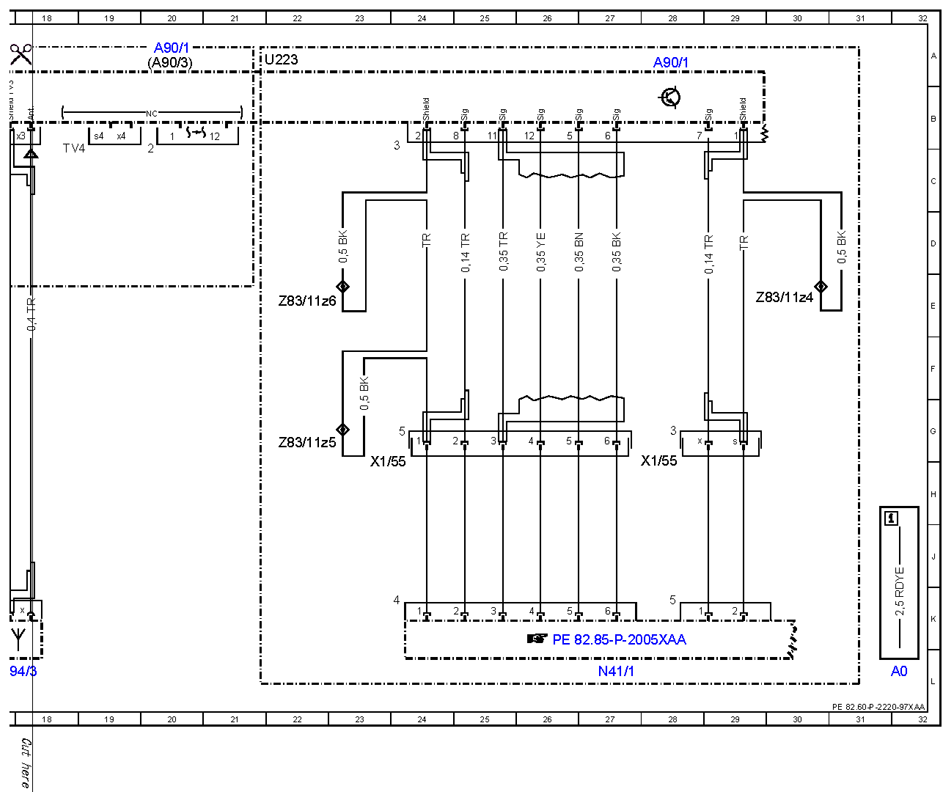

| A0 |
Color code key |
32L |
| A40/3 |
COMAND control unit |
8L |
| A90/1 |
TV tuner (analog/digital) |
4A |
| A90/1 |
TV tuner (analog/digital) |
12A |
| A90/1 |
TV tuner (analog/digital) |
28A |
| A90/1 |
TV tuner (analog/digital) |
20A |
| A90/3 |
TV digital tuner |
4A |
| A90/3 |
TV digital tuner |
12A |
| A90/3 |
TV digital tuner |
20A |
| A94/1 |
TV 1 antenna amplifier |
15L |
| A94/2 |
TV 2 antenna amplifier |
16L |
| A94/3 |
TV 3 antenna amplifier |
17L |
| Code 863 |
Digital/analog TV tuner |
1A |
| Code 865 |
TV tuner (digital) |
1A |
| MOST |
Media Oriented System Transport |
13K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4L |
| N10/2f85 |
Fuse 85 |
N/A |
| N41/1 |
Navigation processor |
27L |
| U223 |
Valid for external navigation |
21A |
| U52 |
Valid for Japan |
6F |
| U54 |
Valid for all except Japan |
6E |
| U631 |
Valid for COMAND |
6E |
| W7/8 |
Right wheelhouse trunk ground point |
3H |
| X1/55 |
External navigation electrical connector |
28H |
| X1/55 |
External navigation electrical connector |
23H |
| Z35/10 |
MOST wake-up signal connector sleeve |
11G |
| Z83/11z2 |
Shielding connector sleeve |
9D |
| Z83/11z3 |
Shielding connector sleeve |
7D |
| Z83/11z4 |
Shielding connector sleeve |
30E |
| Z83/11z5 |
Shielding connector sleeve |
22G |
| Z83/11z6 |
Shielding connector sleeve |
22E |
