Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100EL
MODEL 218 up to model year 2015

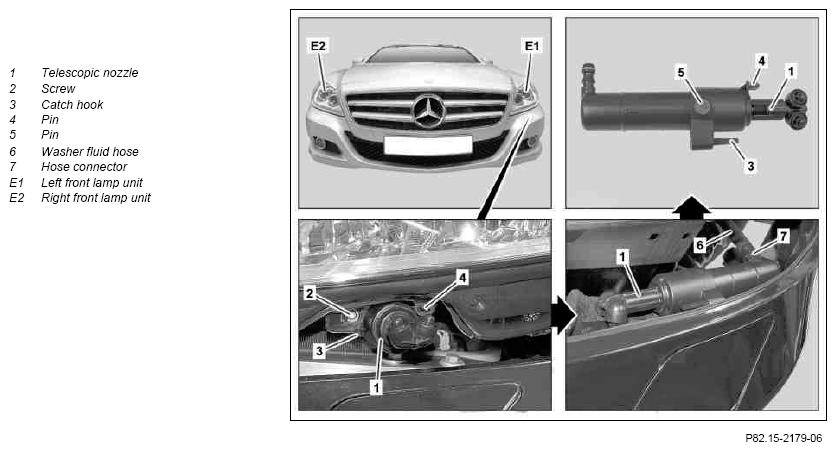

Shown on left telescopic nozzle (1)
| Remove/install | |||
| 1.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 218 up to model year 2015 without CODE 889 (KEYLESS-GO) |
|
| 1.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 218 up to model year 2015 |
|
| 2.1 | Remove bottom section of soundproofing at front | MODEL 218 with ENGINE 642, 651 up to model year 2015 | |
| AR94.30-P-5300EW | |||
| 2.2 | Remove front engine compartment paneling | MODEL 218 with ENGINE 157, 276, 278 up to model year 2015 | |
| AR61.20-P-1105EW | |||
| 3.1 | Detach front bumper far enough to gain access to left or right telescopic nozzle (1) | When removing the left or right telescopic nozzle (1) individually. | |
| AR88.20-P-2000-01EL | |||
| Gap dimensions on hoods, doors and lids | AR60.00-P-0700-01EL | ||
| Gap dimension | *BE60.00-P-1001-01O | ||
| Figure | |||
| Figure | |||
| Figure | |||
| 3.2 | Remove front bumper | When removing the left and right telescopic nozzle (1) together. | |
| AR88.20-P-2000EL | |||
| 4 | Remove screw/bolt (2) from left front lamp unit (E1) or right front lamp unit (E2) | ||
| 5 | Release catch hook (3) and slide telescopic nozzle (1) towards rear and guide pins (4, 5) out of left front lamp unit (E1) or right front lamp unit (E2) | ||
| 6 | Slide telescopic nozzle (1) forwards until the hose coupling (7) is accessible | ||
| 7 | Detach washer fluid hose (6) at hose coupling (7) from telescopic nozzle (1) | ||
| 8 | Remove telescopic nozzle (1) | ||
| 9 | Install in the reverse order | ||
| 10 | Check headlamp cleaning system spray nozzle settings and adjust if necessary | ||
| AP82.30-P-8252EW |
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | MODEL 218.9 | MODEL 218.3 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01O | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4, 0 (±1) | 4, 0 (±1) |
| Engine hood to headlamp | Dimension "B" | mm | 4, 0 (±1) | 4, 0 (±1) | ||
| Engine hood to bumper | Dimension "C" | mm | 4, 0 (±1) | 4, 0 (±1) | ||
| Engine hood to A-pillar | Dimension "Q" | mm | 4, 5 (±1) | 4, 5 (±1) | ||
| Fender to headlamp | Dimension "R" | mm | 4, 0 (±1) | 4, 0 (±1) | ||
| Bumper to headlamp (circumferential) | Dimension "S" | mm | 3, 5 (±1) | 3, 5 (±1) | ||
| Mounting rail, bumper to engine hood | Dimension "T" | mm | 7, 5 (+0, 5) | 7, 5 (+0, 5) | ||
| Mounting rail, bumper to engine hood | Dimension "U" | mm | 1, 0 (±0, 5) | 1, 0 (±0, 5) | ||
| Picture | AR60.00-P-0700-01E L | AR60.00-P-0700-01E L | ||||
