Remove/install rear fog lamp - AR82.10-P-5105EL
MODEL 218.3 without CODE 460 (Canada version) without CODE 494 (US version)
MODEL 218.974/975/976/992
MODIFICATION NOTES
| 7.10.14 | Lift vehicle on vehicle lift added. | Operation step 1 |

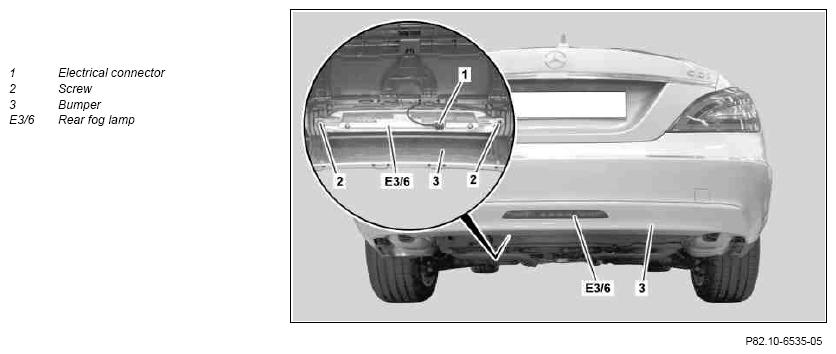

Illustrated in model 218.3
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | ||
| 2 | Disconnect electrical connector (1) | ||
| 3 | Remove bolts (2) | ||
| 4 | Remove rear fog lamp (E3/6) from bumper (3) | ||
| 5 | Install in the reverse order |
