Remove/install fan for lamp unit - AR82.10-P-4742EL
MODEL 207, 212, 218 with CODE 632 (Headlamps, LED, static, right-side traffic)
MODEL 207, 212, 218 with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 207, 212, 218 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)
MODEL 207, 212 with CODE 631 (Scheinwerfer LED statisch Linksverkehr)
MODEL 207, 212 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
MODEL 218 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 218 with CODE 622 (Intelligent Light System)
MODEL 218 with CODE 631 (LED high-performance headlamps)
MODEL 218 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED)

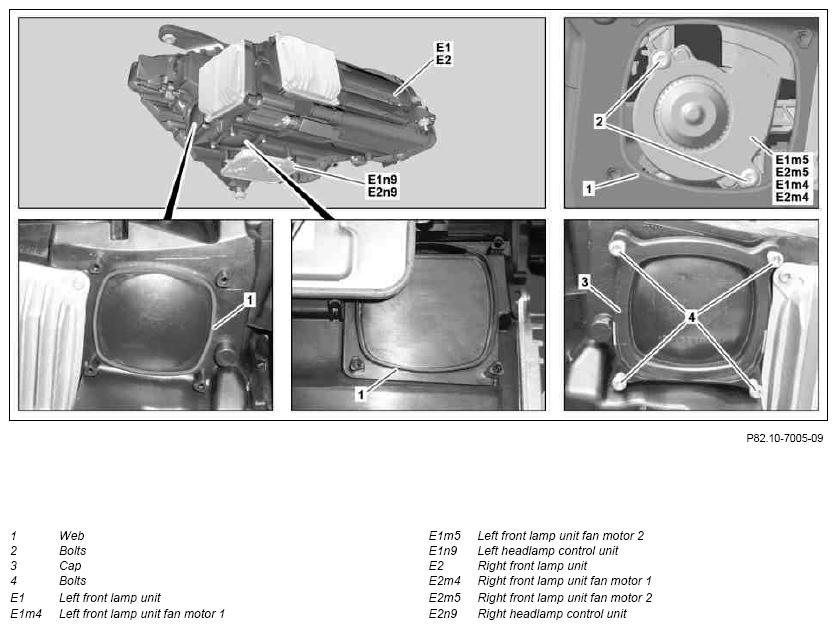

Shown on model 218
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1.1 | Remove left or right fender liner front section | When replacing left front lamp unit fan motor 1 (E1m4) or right front lamp unit fan motor 1 (E2m4). | |
| AR88.10-P-1300ELX | |||
| 1.2 | Remove left front lamp unit (E1) or right front lamp unit (E2) | When replacing left front lamp unit fan motor 2 (E1m5) or right front lamp unit fan motor 2 (E2m5). | |
| MODEL 207 as of model year 2014 with CODE 631 (Scheinwerfer LED statisch Linksverkehr) MODEL 207 as of model year 2014 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 207 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 207 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 207 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4730ECM | ||
| MODEL 212 as of model year 2014 with CODE 631 (Scheinwerfer LED statisch Linksverkehr) MODEL 212 as of model year 2014 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 212 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 212 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 212 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4730EWM | ||
| MODEL 218 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 with CODE 622 (Intelligent Light System) MODEL 218 with CODE 631 (LED high-performance headlamps) MODEL 218 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 218 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) MODEL 218 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 218 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4730EL | ||
| 2 | Remove detachable parts in area of bar (1) or cap (3) | ||
| 3.1 | Use hot knife to cut open the housing of the left front lamp unit (E1) or the right front lamp unit (E2) within the bar (1), along the notch. | If the cap (3) is not fitted. Otherwise, the components in the housing of the left front lamp unit (E1) or the right front lamp unit (E2) may be damaged. |
|
| Fig 2 | |||
| 3.2 | Detach cap (3) | If the cap (3) is fitted. | |
| 4 | Remove left front lamp unit fan motor 1 (E1m4) or right front lamp unit fan motor 1 (E2m4) or left front lamp unit fan motor 2 (E1m5) or right front lamp unit fan motor 2 (E2m5) and remove from housing until the electrical connection is accessible | ||
| 5 | Disconnect electrical connection from left front lamp unit fan motor 1 (E1m4) or right front lamp unit fan motor 1 (E2m4) or left front lamp unit fan motor 2 (E1m5) or right front lamp unit fan motor 2 (E2m5) | ||
| Install | |||
| 6 | Connect electrical connection to left front lamp unit fan motor 1 (E1m4) or right front lamp unit fan motor 1 (E2m4) or left front lamp unit fan motor 2 (E1m5) or right front lamp unit fan motor 2 (E2m5) | ||
| 7 | Install left front lamp unit fan motor 1 (E1m4) or right front lamp unit fan motor 1 (E2m4) or left front lamp unit fan motor 2 (E1m5) or right front lamp unit fan motor 2 (E2m5) | ||
| 8 | Insert cap (3) | Otherwise, the housing of the left front lamp unit (E1) or the right front lamp unit (E2) may start to leak. |
|
| 9 | Tighten cap (3) using screws/bolts (4) | ||
| 10 | Mount detachable parts in area of bar (1) or cap (3) | ||
| 11.1 | Install left front lamp unit (E1) and right front lamp unit (E2) | When replacing left front lamp unit fan motor 2 (E1m5) or right front lamp unit fan motor 2 (E2m5). | |
| MODEL 207 as of model year 2014 with CODE 631 (Scheinwerfer LED statisch Linksverkehr) MODEL 207 as of model year 2014 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 207 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 207 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 207 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4730ECM | ||
| MODEL 212 as of model year 2014 with CODE 631 (Scheinwerfer LED statisch Linksverkehr) MODEL 212 as of model year 2014 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 212 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 212 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 212 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4730EWM | ||
| MODEL 218 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 with CODE 622 (Intelligent Light System) MODEL 218 with CODE 631 (LED high-performance headlamps) MODEL 218 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 218 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) MODEL 218 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 218 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4730EL | ||
| 11.2 | Install left or right fender liner front section | When replacing left front lamp unit fan motor 1 (E1m4) or right front lamp unit fan motor 1 (E2m4). | |
| AR88.10-P-1300ELX |
