Retrofit Mercedes-Benz InCar Internet - AZ82.85-P-0005EL

MODEL 218.3## 1# up to 5/31/12 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 830 (Vehicles for China, additional parts)

MODEL 218.3## 1# up to 5/31/12 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 088 (Control code NTG 4.5) without CODE 830 (Vehicles for China, additional parts)

MODEL 218.3## 1# up to 5/31/12 up to model year 2013 with CODE 528 (COMAND with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 830 (Vehicles for China, additional parts)

System overview on vehicles with CODE 518 (Media Interface)

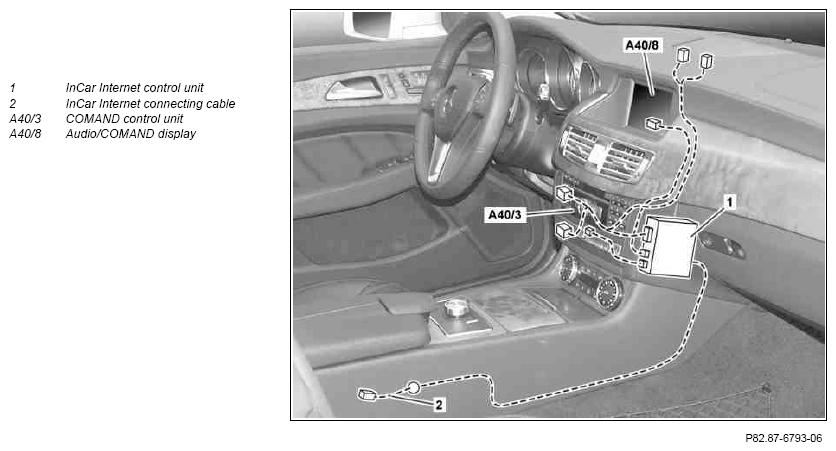

Fig 1: Identifying InCar Internet Control Unit Wiring Harness

Courtesy of MERCEDES-BENZ USA

System overview on vehicles without CODE 518 (Media Interface)

Fig 2: Identifying InCar Internet Control Unit Wiring Harness

Courtesy of MERCEDES-BENZ USA

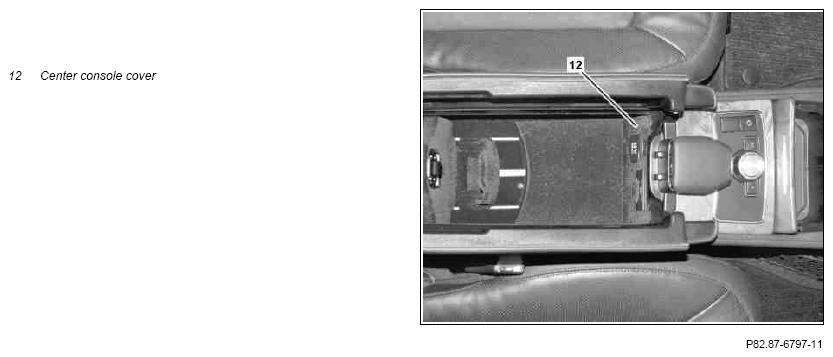

Fig 3: Identifying Center Console Cover

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move front passenger seat toward rear
2	Remove glove compartment
			AR68.10-P-1400EL
3	Remove COMAND controller unit (A40/3)
			AR82.60-P-7502EW
4	Remove Audio/COMAND display (A408)	Model 218.3## 1# up to 31.05.12
			AR82.60-P-7722EL
5	Remove front center console
			AR68.20-P-2000EL
6	Remove center console cover (12)
			AR68.20-P-2150ELA
	Install
7	Retrofit InCar Internet adapter wiring harness		AZ82.85-P-0005-02EL
8	Retrofit low voltage differential signal (LVDS) wiring harness		AZ82.85-P-0004-03ELA
9	Install Audio/COMAND display (A40/8)	Model 218.3## 1# up to 31.05.12
			AR82.60-P-7722EL
10	Retrofit InCar Internet connecting cable (2)		AZ82.85-P-0005-05EL
11	Install center console cover (12)
			AR68.20-P-2150ELA
12	Install front center console
			AR68.20-P-2000EL
		The InCar Internet connecting cable (2) has to be routed into the front passenger footwell when installing the center console.
13	Install COMAND controller unit (A40/3)
			AR82.60-P-7502EW
		When installing the COMAND controller unit (A40/3), make sure that the wiring harnesses in the radio recess are not pinched. as otherwise there may be a short circuit. The installation of the COMAND controller unit (A40/3) is impeded by the size of the InCar Internet adapter wiring harness.
14	Retrofit InCar Internet control unit (1)		AZ82.85-P-0005-04EL
15	Install remaining parts	Operation steps 2 to 1.
	Update Vehicle Documentation (VeDoc)
16	Attach note "Mercedes-Benz InCar Internet retrofitted as per AZ82.85-P-0005EL " under field organization texts to design group 82
17	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
18	Carry out variant coding using software calibration number (SCN)	"ICI"
19	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
20	Perform function check of InCar Internet
