Retrofit InCar Hotspot - AZ82.80-P-0002EL

MODEL 218.3## (except 218.374/375/376/392) 1# up to 9/27/14 up to model year 2015 with CODE 386 (Comfort telephony) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE B04 (EASY-PACK boot box)

MODEL 218.3## (except 218.374/375/376/392) 1# up to 9/27/14 up to model year 2015 with CODE 525 (MB Audio 50 APS radio) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE B04 (EASY-PACK boot box)

MODEL 218.3## (except 218.374/375/376/392) 1# up to 9/27/14 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE B04 (EASY-PACK boot box)

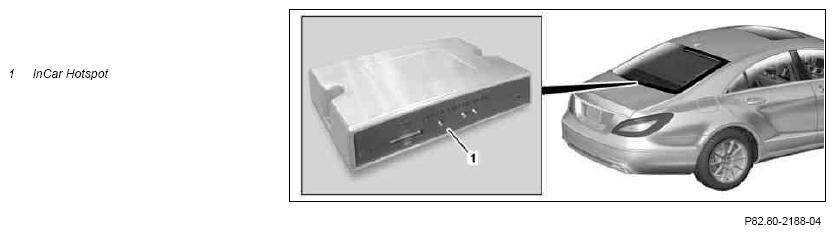

Fig 1: Identifying InCar Hotspot

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with CODE 889 (KEYLESS-GO).
2	Remove right side trim panel cover from trunk
3	Remove bag holder in trunk	The bag holder in trunk is discontinued.
4	Loosen trunk paneling at left
5	Remove seat cushion in the rear
			AR91.12-P-1020EL
6	Remove rear center console
			AR68.20-P-2020EL
7	Loosen center console at front in rear area
			AR68.20-P-2000EL
8	Release rear SAM control unit with fuse and relay module
			AR54.21-P-1258EW
		Only release rear SAM control unit with fuse and relay module, do not disconnect electrical connections.
	Install
9	Retrofit InCar Hotspot (1) with holder		AZ82.80-P-0002-02EW
		Anticorrosion grease 40 g/DB supply specification 6834.00	*BR00.45-Z-1006-06A
10	Retrofit wiring harness of InCar Hotspot (1)		AZ82.80-P-0002-01EL
		Wiring harness repair kit	Figure
11	Secure rear SAM control unit with fuse and relay module
			AR54.21-P-1258EW
12	Attach trunk paneling at left
13	Install right side trim panel cover in trunk
14	Fasten center console at front in rear area
			AR68.20-P-2000EL
15	Install rear center console
			AR68.20-P-2020EL
16	Install seat cushion in rear
			AR91.12-P-1020EL
17	Perform function test of InCar Hotspot (1)	See operator's  manual for InCar Hotspot (1).
18	Document retrofitted equipment through vehicle documentation (VeDoc)	Attach note "InCar Hotspot retrofitted in accordance with AZ82.80-P-0002EL " under field organization texts to design group 82.

Fig 2: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA
