Retrofit COMAND Online incl. DVD changer - AN82.85-P-0008EL

MODEL 218.3/9 with CODE 531 (COMAND APS) without CODE 357 (SD card navigation) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 505 (Radio 20 NTG5, not navigation-enabled) without CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT) without CODE 830 (Vehicles for China, additional parts)

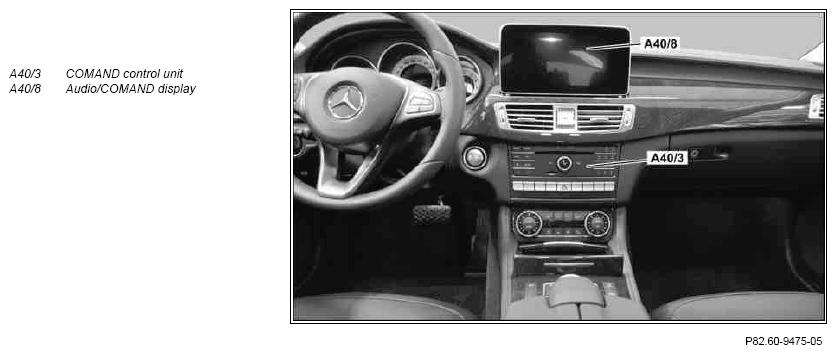

Fig 1: Identifying COMAND Control Unit

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove COMAND controller unit (A40/3)
			AR82.60-P-7502EW
		The COMAND controller unit (A40/3) is no longer required.
	Install
2	Install COMAND controller unit (A40/3) with DVD changer
			AR82.60-P-7502EW
	Update Vehicle Documentation (VeDoc)
3	Attach note "COMAND Online with DVD changer retrofitted as per AN82.85-P-0008EL " under field organization texts to design group 82
4	Delete special equipment in online vehicle data card via Vehicle Documentation System (VeDoc)	Delete:  - CODE 815 (DVD player)
5	Enter special equipment in on-line vehicle data card via vehicle documentation system (VeDoc)	Add:  - CODE 814 (DVD changer)
6	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
7	Perform variant coding with XENTRY using software calibration number (SCN) for "COMAND Online with DVD changer"
8	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
9	Perform function test	See operator's manual for COMAND Online with DVD changer.
