Check oil level in automatic transmission and correct if necessary. - AR27.00-P-0100NKB

TRANSMISSION 724.0 in MODEL 117, 156, 176, 242, 246

Shown on ENGINE 270

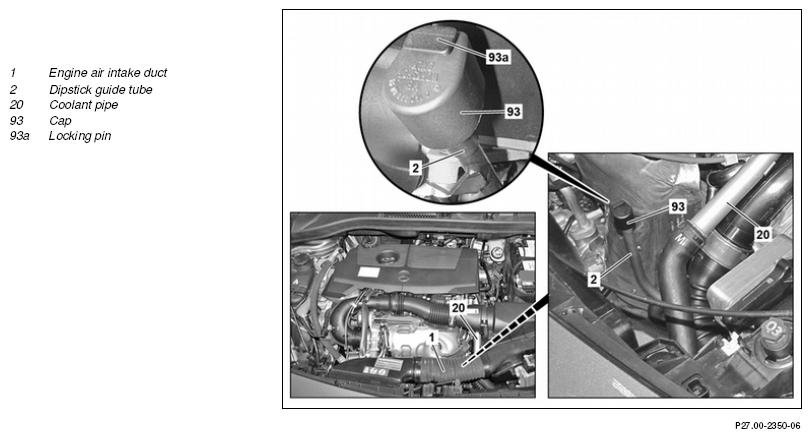

Fig 1: Engine Air Intake Duct, Dipstick Guide Tube, Coolant Pipe, Cap & Locking Pin

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Check
1	Lift vehicle on vehicle lift		AR00.60-P-1000AK
		The vehicle must be exactly horizontal in the longitudinal and transverse direction.
2	Remove rear lower engine compartment paneling	Model 117, 156, 176, 242, 246 with engine 270 with transmission 724.0 Model 156 with engine 607 with transmission 724.0 Model 156 with engine 651 with transmission 724.0	AR61.20-P-1105NKB
		Model 117, 156, 176, 246 with engine 607 with transmission 724.0 Model 117, 176, 246 with engine 651 with transmission 724.0	AR94.30-P-5300NKB
3	Check transmission for leaktightness and external damage, and repair if necessary
4	Perform oil change	If necessary.
			AP27.00-P-2702NK
5	Remove engine air intake duct (1) upstream of air filter	Transmission 724.0 in model 117, 156, 176, 246 with engine 651	AR09.10-P-1150OLB
		Transmission 724.0 in model 117, 156, 176, 242, 246.2 with engine 270	AR09.10-P-1150MT
		Transmission 724.0 in model 117, 156, 176, 246 with engine 607	AR09.10-P-1150ORA
6	Read out fault memory using the diagnostic system and delete if necessary
			AD00.00-P-2000-04A
7	Engage parking brake and start the engine	The transmission must be filled with transmission oil before starting the engine. The transmission will otherwise be damaged.
8	Perform commissioning using the diagnostic system
			AD00.00-P-2000-04A
		Conduct "Rev up" and "purge" sub items.
9	Warm up engine at idle speed in selector lever position "P"	The transmission oil level can be checked at a transmission oil temperature of 40°C/104°F  or 70°C/158°F.  A temperature tolerance of ±2°C or  ±3.6°F  is permissible for the measurement. Throughout the entire test, the parking brake must not be released and there must be no revving-up, and no other disturbance variables may be generated, that are not required for the work procedure. All these factors would result in the diagnostic system measurement being canceled and then require a restart.
10	Call up "Check transmission oil level" function in instrument cluster using diagnostic system	Before starting the oil level check the engine must have run for at least 2_minutes at idle speed. The following steps must be executed in the diagnostic system: Check transmission oil level → Diagnosis → Routine → Start sensor/actor calibration → Check transmission oil level A11 → Start function → Run → During the oil level check an "F"  must flash on and off in the instrument cluster.
11	Release cap (93)	Break of locking pin (93a) using suitable tool and remove any residue in the cap (93) by pushing it downwards.
12	Remove cap (93) from dipstick guide tube (2)
13	Check transmission oil level at idle speed and repeat procedure 3 times		AR27.00-P-0100-01NKB
		Use lint-free cloth to wipe dipstick (01) between measurements.
		Transmission 724.0 in model 117, 156, 176, 242, 246 Refill quantity	*BF27.00-P-1001-01F
		Dipstick	Fig 3
14	Extract or add automatic transmission fluid	If necessary. Observe Specifications for Operating Fluids. 200 ml to 250 ml of transmission oil lie between the scale values on the dipstick (interval 5 mm). To increase the oil level in the transmission by 1 mm, add approx. 50 ml of new automatic transmission fluid. To fill new automatic transmission fluid, use a funnel with filter function and always use new automatic transmission fluid. Replace the funnel filter before adding fluid.
		TRANSMISSION 724.0 in MODEL 117, 156, 176, 242, 246 Refill quantity	*BF27.00-P-1001-01F
		Funnel	Fig 2
		Hand pump	Fig 4
15	Check transmission oil level at idle speed and repeat procedure 3 times	If necessary. Check transmission oil level at a transmission oil temperature of 40°C/104°F  or 70°C/158°F.  A temperature tolerance of ±2°C or  ±3.6°F  is permissible. After filling or extracting automatic transmission fluid, the oil level check must be checked again as in operation step 13.
16	Fit cap (93) onto dipstick guide tube (2) and press in new locking pin (93a) until it latches into place
17	Disconnect diagnostic system from vehicle
18	Perform engine test run and, with engine running, check transmission for leaks and that it is functioning correctly
19	Install lower rear engine compartment paneling	ENGINE 270, 607, 651
		Model 117, 156, 176, 242, 246 with engine 270 with transmission 724.0 Model 156 with engine 607 with transmission 724.0 Model 156 with engine 651 with transmission 724.0	AR61.20-P-1105NKB
		Model 117, 176, 246 with engine 607 with transmission 724.0 Model 117, 176, 246 with engine 651 with transmission 724.0	AR94.30-P-5300NKB
20	Install engine air intake duct (1) upstream of air filter	Transmission 724.0 in model 117, 156, 176, 246 with engine 651	AR09.10-P-1150OLB
		Transmission 724.0 in model 117, 156, 176, 242, 246.2 with engine 270	AR09.10-P-1150MT
		Transmission 724.0 in model 117, 156, 176, 246 with engine 607	AR09.10-P-1150ORA

AUTOMATIC TRANSMISSION

Number	Designation				Transmission 724.0 in model 117.312/342	Transmission 724.0 in model 117.301/308/343
BF27.00-P-1001-01F	Refill quantity	with oil change		Liter	≈4, 8	≈5, 0
			Specification		Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1	Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Oil dipstick scale value at oil temperature	40 °C	Scale value	2, 5	3
			70 °C	Scale value	3, 5	4

AUTOMATIC TRANSMISSION

Number	Designation				Transmission 724.0 in model 117.302/303/305/344/345/346/347/350/351/352	Transmission 724.0 in model 156.912/942
BF27.00-P-1001-01F	Refill quantity	with oil change		Liter	≈5, 3	≈4, 8
			Specification		Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1	Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Oil dipstick scale value at oil temperature	40 °C	Scale value	4	2, 5
			70 °C	Scale value	5	3, 5

AUTOMATIC TRANSMISSION

Number	Designation				Transmission 724.0 in model 156.908/943	Transmission 724.0 in model 156.902/903/905/944/945/946/952
BF27.00-P-1001-01F	Refill quantity	with oil change		Liter	≈5, 0	≈5, 3
			Specification		Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1	Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Oil dipstick scale value at oil temperature	40 °C	Scale value	3	4
			70 °C	Scale value	4	5

AUTOMATIC TRANSMISSION

Number	Designation				Transmission 724.0 in model 176.000/007/011/012/041/042	Transmission 724.0 in model 176.001/043
BF27.00-P-1001-01F	Refill quantity	with oil change		Liter	≈4, 8	≈5, 0
			Specification		Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1	Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Oil dipstick scale value at oil temperature	40 °C	Scale value	2, 5	3
			70 °C	Scale value	3, 5	4

AUTOMATIC TRANSMISSION

Number	Designation				Transmission 724.0 in model 176.002/003/005/044/046/047/050/051/05 2	Transmission 724.0 in model 242.848
BF27.00-P-1001-01F	Refill quantity	with oil change		Liter	≈5, 3	≈5, 0
			Specification		Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1	Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Oil dipstick scale value at oil temperature	40 °C	Scale value	4	3
			70 °C	Scale value	5	4

AUTOMATIC TRANSMISSION

Number	Designation				Transmission 724 in model 246.200/207/211/212/242	Transmission 724 in model 246.201/208/243
BF27.00-P-1001-01F	Refill quantity	with oil change		Liter	≈4, 8	≈5, 0
			Specification		Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1	Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Oil dipstick scale value at oil temperature	40 °C	Scale value	2, 5	3
			70 °C	Scale value	3, 5	4

AUTOMATIC TRANSMISSION

Number	Designation				Transmission 724 in model 246.202/203/205/244/246/247
BF27.00-P-1001-01F	Refill quantity	with oil change		Liter	≈5, 3
			Specification		Automatic transmission fluid (ATF, Specification 236.21). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Oil dipstick scale value at oil temperature	40 °C	Scale value	4
			70 °C	Scale value	5

Fig 2: Funnel (126 589 12 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Dipstick (168 589 01 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
