Remove/install bass module speaker - AR82.62-P-7839NKC

MODEL 117 with CODE 810 (Sound system)

Shown on MODEL 117.3

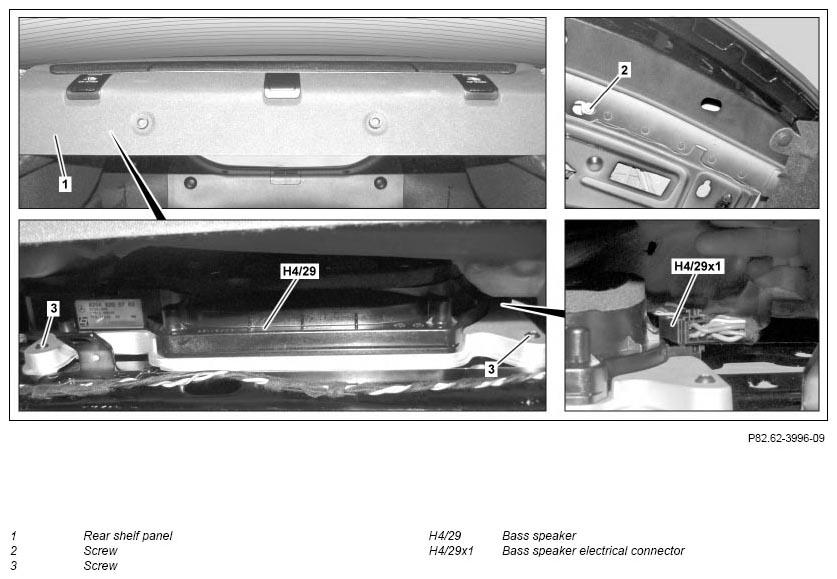

Fig 1: Bass Module Speaker Remove/Install Components - Shown On Model 117.3 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

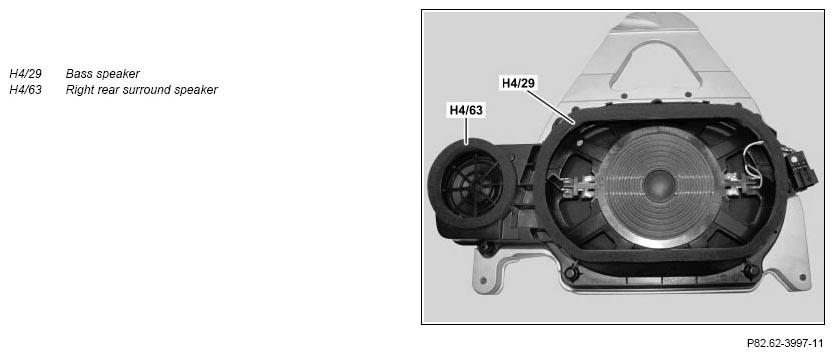

Fig 2: Bass Module Speaker Remove/Install Components - Shown On Model 117.3 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 117.9

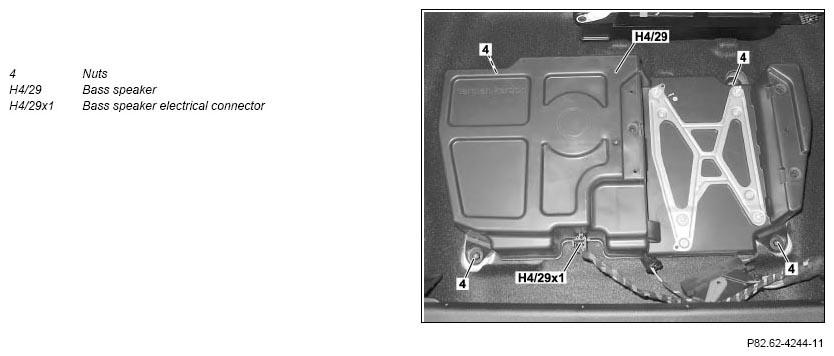

Fig 3: Bass Module Speaker Remove/Install Components - Shown On Model 117.9

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove audio power amplifier	Model 117.9
			AR82.62-P-7720NKC
2	Loosen screw/bolt (2) from trunk	Model 117.3
3	Detach rear shelf and lift until bass speaker (H4/29) is accessible	Model 117.3
			AR68.30-P-4581NKC
4	Disconnect bass speaker electrical connector (H4/29x1)
5.1	Remove screws/bolts (3)	Model 117.3
5.2	Unscrew nuts (4)	Model 117.9
6	Remove bass speaker (H4/29)
7	Remove right rear surround speaker (H4/63)	Model 117.3 Only when replacing bass speaker (H4/29).
8	Install in the reverse order
