Remove/install engine sound control unit - AR54.21-P-0024NKC
MODEL 117 with CODE B63 (Sporty engine sound)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of engine sound control unit (N40/1) | When replacing the engine sound control unit (N40/1). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove center console cover at front | AR68.20-P-2350NKB | |

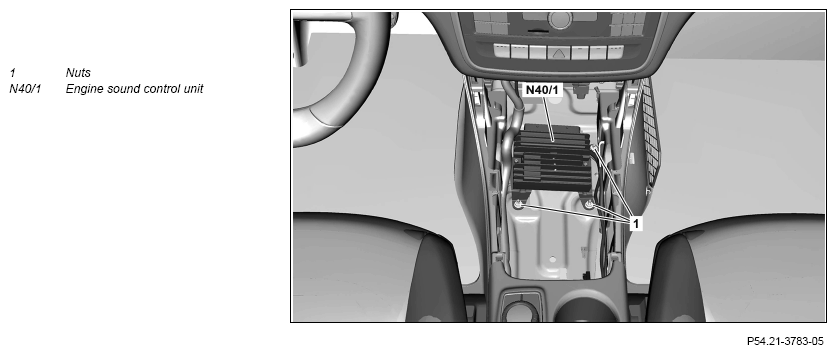

| 3 | Unscrew nuts (1) | ||
| 4 | Take out engine sound control unit (N40/1) far enough until the electrical connector on the engine sound control unit (N40/1) is accessible | ||
| 5 | Release and disconnect electrical connector on engine sound control unit (N40/1) | ||
| 6 | Take out engine sound control unit (N40/1) | ||
| 7 | Install in the reverse order |
