Remove/install 12 Volt socket - AR54.10-P-1000NKA

MODEL 117, 156, 176

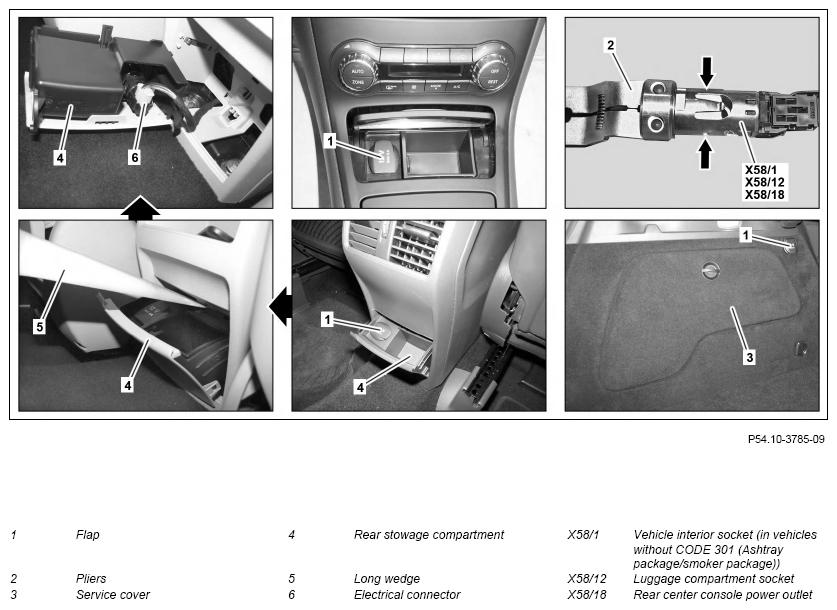

Fig 1: 12 Volt Socket Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key from electronic ignition lock control unit
2	Release rear stowage compartment (4) using long wedge (5), unhook and remove from center console and place to one side with electrical wiring harness still connected	When removing rear center console socket (X58/18).
		Long wedge	Fig 2
3	Disconnect electrical connector (6) from rear center console socket (X58/18)	When removing rear center console socket (X58/18).
4	Remove service cover (3) on left in trunk	When removing the trunk socket (X58/12).
5	Disconnect electrical connector from trunk socket (X58/12)	When removing the trunk socket (X58/12).
6	Open flap (1) of vehicle interior socket (X58/1) or trunk socket (X58/12) or rear center console socket (X58/18)
7	Release vehicle interior socket (X58/1) or trunk socket (X58/12) or rear center console socket (X58/18) using pliers (2) and pull out	The lugs of the pliers (2) must engage in the notches (arrows) of the housing of the vehicle interior socket (X58/1) or trunk socket (X58/12) or rear center console socket (X58/18). Installation:  Make sure that the installation position of the vehicle interior socket (X58/1) or trunk socket (X58/12) or rear center console socket (X58/18) is correct.
		Pliers	Figure
8	Disconnect electrical connector from vehicle interior socket (X58/1)	When removing the vehicle interior socket (X58/1).
9	Install in the reverse order

Fig 2: Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
