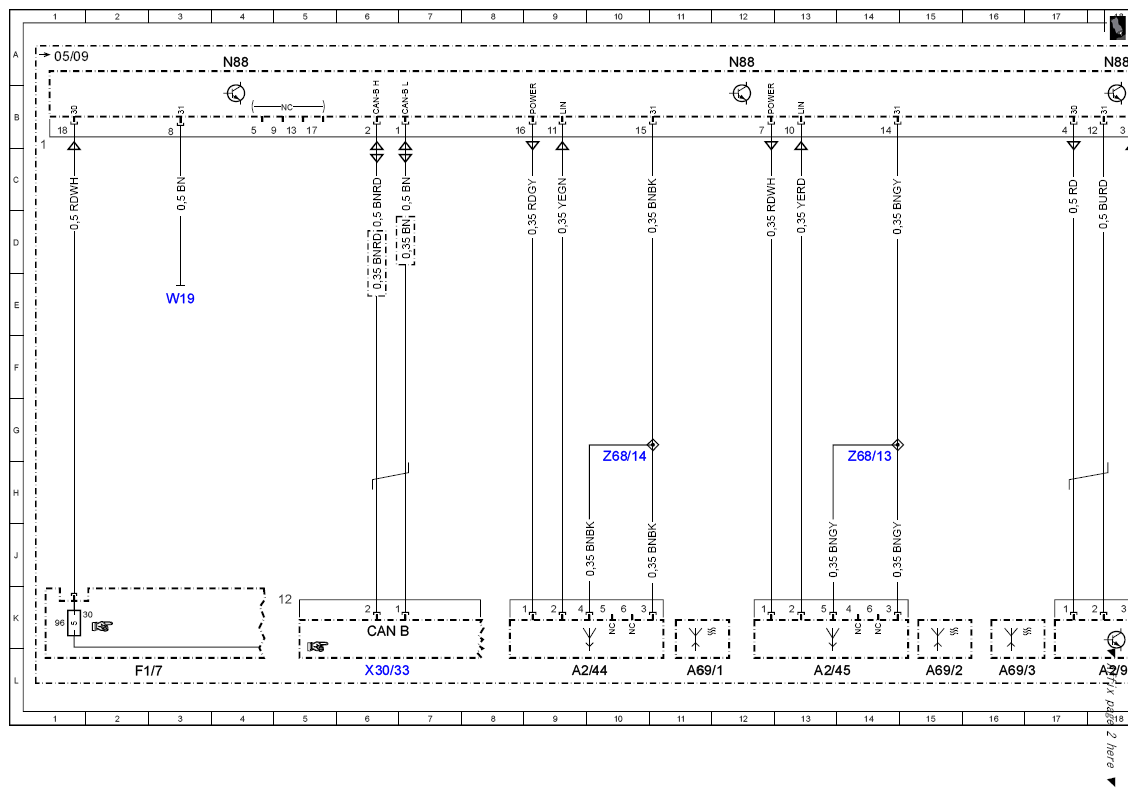

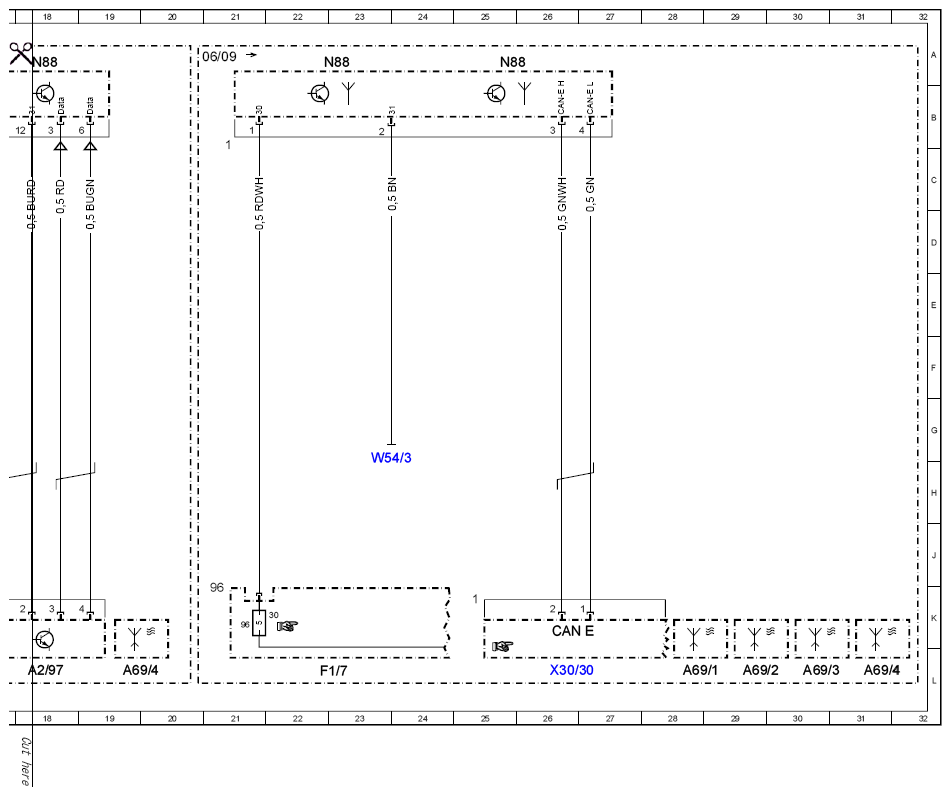

| A2/44 |
Left front TPM [RDK] wheel antenna |
9L |
| A2/45 |
Right front TPM [RDK] wheel antenna |
13L |
| A2/97 |
Central TPM [RDK] antenna |
18L |
| A69/1 |
Left front TPM [RDK] wheel sensor |
11L |
| A69/1 |
Left front TPM [RDK] wheel sensor |
28L |
| A69/2 |
Right front TPM [RDK] wheel sensor |
15L |
| A69/2 |
Right front TPM [RDK] wheel sensor |
29L |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
16L |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
30L |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
19L |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
31L |
| CAN B |
Interior CAN |
6K |
| CAN E |
Chassis CAN |
26K |
| F1/7 |
Left instrument panel fuse box |
3L |
| F1/7 |
Left instrument panel fuse box |
23L |
| F1/7f96 |
Fuse 96 |
1K |
| F1/7f96 |
Fuse 96 |
21K |
| N88 |
TPM [RDK] control unit |
4A |
| N88 |
TPM [RDK] control unit |
12A |
| N88 |
TPM [RDK] control unit |
18A |
| N88 |
TPM [RDK] control unit |
23A |
| N88 |
TPM [RDK] control unit |
25A |
| W19 |
Ground (right front seat crossmember) |
3E |
| W54/3 |
Ground (left rear wheelhouse) |
23H |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
26L |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
6L |
| Z68/13 |
TPM [RDK] LIN bus ground connector sleeve |
14G |
| Z68/14 |
TPM [RDK] LIN bus ground connector sleeve |
10G |
