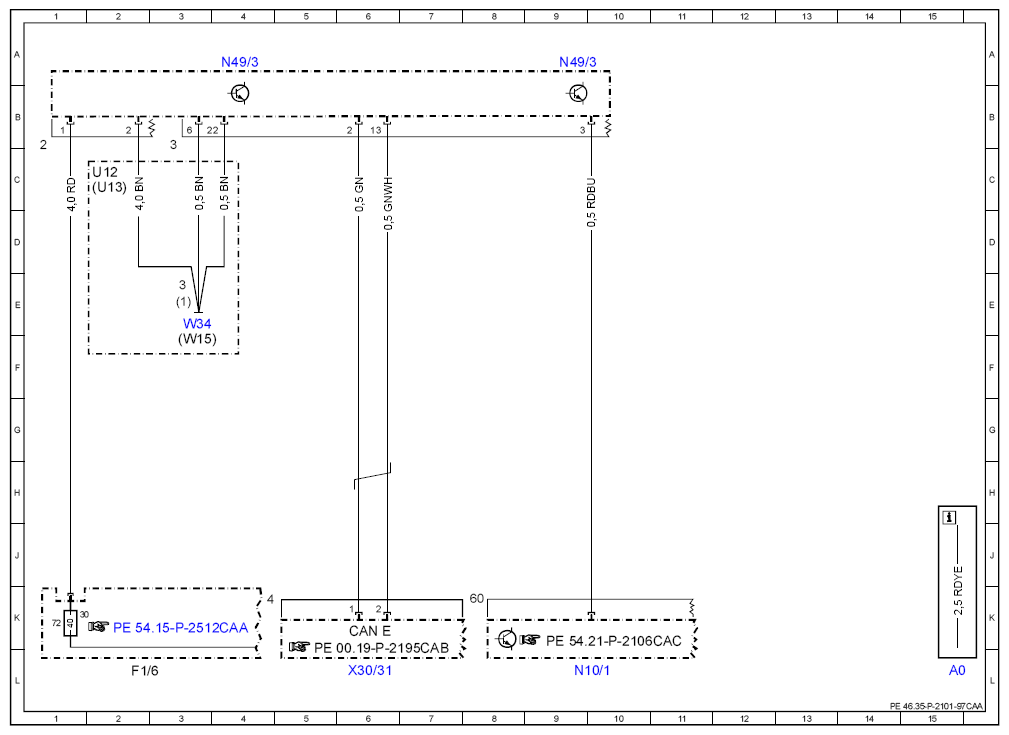

Wiring diagram for electric power steering control unit - PE46.35-P-2101-97CAA
MODEL 216.3 up to model year 2011 /CY 10 model refinement package, control unit N49/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| CAN E | Chassis CAN | 6K |
| F1/6 | Right instrument panel fuse box | 2L |
| F1/6f72 | Fuse 72 | 1K |
| N10/1 | Front SAM control unit with fuse and relay module | 9L |
| N49/3 | Electromechanical steering system control unit | 4A |
| N49/3 | Electromechanical steering system control unit | 9A |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 2C |
| W15 | Power ground (electronics) | 3F |
| W34 | Ground (left footwell) | 3E |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 6L |
