Electrical function diagram for maximum speed limitation - PE07.61-U-2779-97CAA

Code: Designation: Position:
1 Vehicle speed, signal 4G
CAN E Chassis CAN 4H
M16/6 Throttle valve actuator 1F
N3/10 ME-SFI [ME] control unit 3E
N47-5 ESP control unit 4J
Y62y1 Cylinder 1 fuel injection valve 3A
Y62y10 Cylinder 10 fuel injection valve 3D
Y62y11 Cylinder 11 fuel injection valve 3D
Y62y12 Cylinder 12 fuel injection valve 3D
Y62y2 Cylinder 2 fuel injection valve 3B
Y62y3 Cylinder 3 fuel injection valve 3B
Y62y4 Cylinder 4 fuel injection valve 3B
Y62y5 Cylinder 5 fuel injection valve 3B
Y62y6 Cylinder 6 fuel injection valve 3C
Y62y7 Cylinder 7 fuel injection valve 3C
Y62y8 Cylinder 8 fuel injection valve 3C
Y62y9 Cylinder 9 fuel injection valve 3C

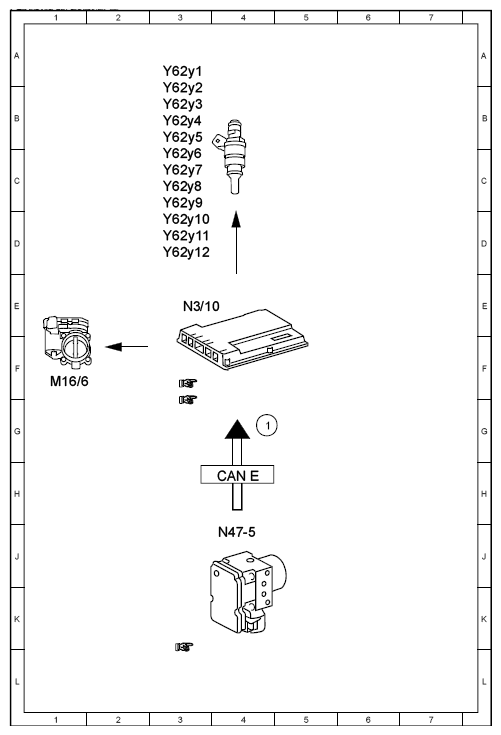

Fig 1: Maximum Speed Limitation Electrical Function Diagram
G10107949Courtesy of MERCEDES-BENZ USA
