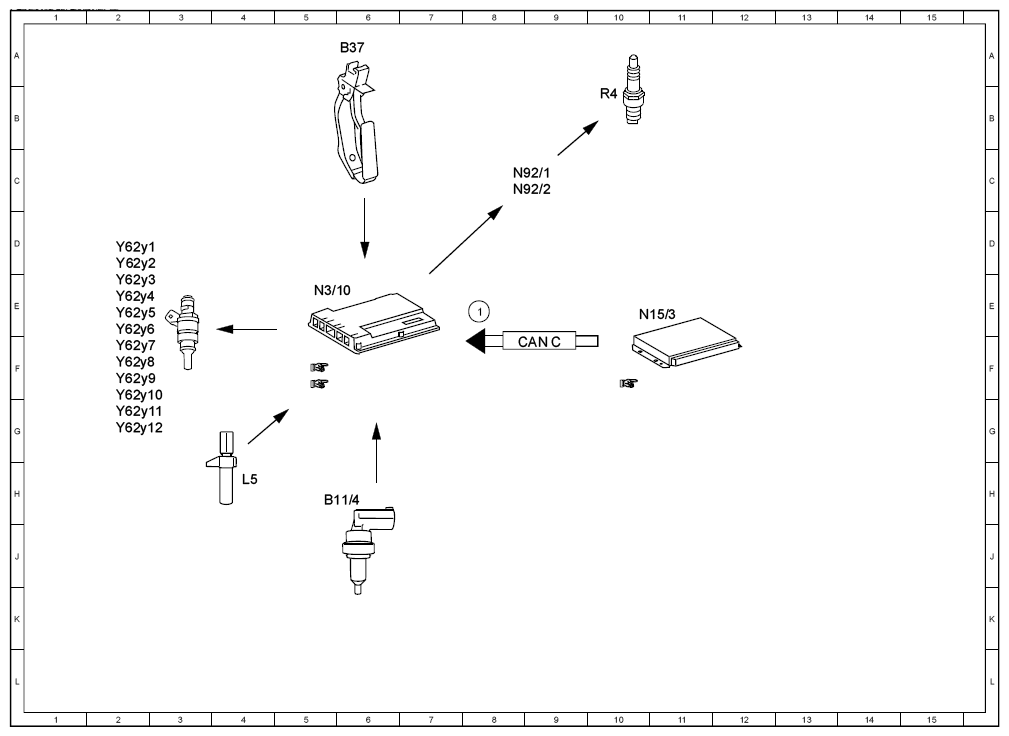

| 1 |
Shift stage, status |
8E |
| B11/4 |
Coolant temperature sensor |
5H |
| B37 |
Accelerator pedal sensor |
6A |
| CAN C |
Drive train CAN |
9F |
| L5 |
Crankshaft position sensor |
4H |
| N15/3 |
ETC [EGS] control unit |
10E |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| N92/1 |
ECI ignition module, right cylinder bank |
8C |
| N92/2 |
ECI ignition module, left cylinder bank |
8C |
| R4 |
Spark plugs |
10B |
| Y62y1 |
Cylinder 1 fuel injection valve |
2D |
| Y62y10 |
Cylinder 10 fuel injection valve |
2F |
| Y62y11 |
Cylinder 11 fuel injection valve |
2G |
| Y62y12 |
Cylinder 12 fuel injection valve |
2G |
| Y62y2 |
Cylinder 2 fuel injection valve |
2D |
| Y62y3 |
Cylinder 3 fuel injection valve |
2E |
| Y62y4 |
Cylinder 4 fuel injection valve |
2E |
| Y62y5 |
Cylinder 5 fuel injection valve |
2E |
| Y62y6 |
Cylinder 6 fuel injection valve |
2E |
| Y62y7 |
Cylinder 7 fuel injection valve |
2F |
| Y62y8 |
Cylinder 8 fuel injection valve |
2F |
| Y62y9 |
Cylinder 9 fuel injection valve |
2F |
