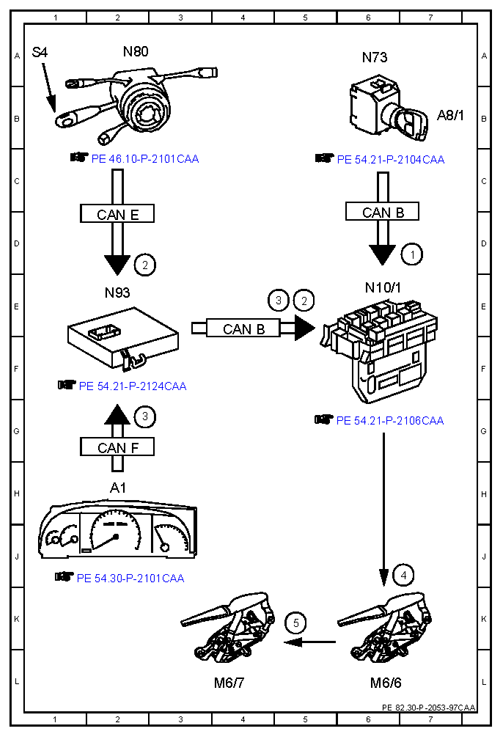

Electrical function schematic for automatic speed reduction - PE82.30-P-2053-97CAA
MODEL 216.3 except CODE (494) USA version as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7D |
| 2 | Combination switch, status | 5E |
| 2 | Combination switch, status | 3D |
| 3 | Vehicle speed, signal | 5E |
| 3 | Vehicle speed, signal | 2G |
| 4 | Master wiper motor, actuation | 6J |
| 5 | Slave wiper motor, actuation | 5K |
| A1 | Instrument cluster | 2H |
| A8/1 | Transmitter key | 7B |
| CAN B | Interior CAN | 6C |
| CAN B | Interior CAN | 4E |
| CAN E | Chassis CAN | 2C |
| CAN F | Central CAN | 2G |
| M6/6 | Master wiper motor | 6L |
| M6/7 | Slave wiper motor | 4L |
| N10/1 | Front SAM control unit with fuse and relay module | 8E |
| N73 | EIS [EZS] control unit | 6A |
| N80 | Steering column module | 2A |
| N93 | Central gateway control unit | 2E |
| S4 | Combination switch | 1A |
