Remove/install rain/light sensor - AR82.30-P-7800SX
MODEL 216.3
MODEL 221 except code Z07 (Top protection)
Shown on model 221.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2.1 | Unclip cover of rain/light sensor (B38/2) and remove | Model 216.3 up to model year 2011 Model 221 except code Z07 (Top protection) |
|
| Figure | |||
| 2.2 | Completely slide cover toward front and remove | Model 216.3 as of model year 2012 |
|

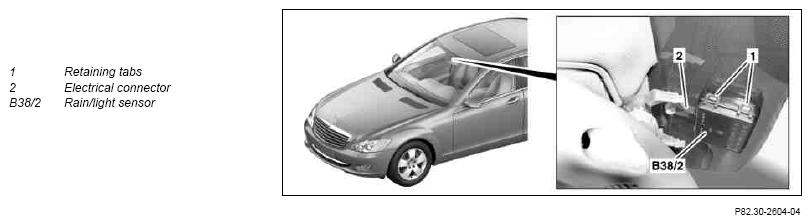

| 3 | Unhook retaining tabs (1) on both sides of rain/light sensor (B38/2) | ||
| 4 | Remove rain/light sensor (B38/2) | The surfaces of the rain/light sensor (B38/2) must not be touched. Otherwise, soiling may cause the rain/light sensor (B38/2) to malfunction. |
|
| 5 | Disconnect electrical connection (2) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform initial startup of rain/light sensor (B38/2) | ||
| AD00.00-P-2000-04A |
