Remove/install fog lamp - AR82.10-P-5103SC
MODEL 216.3 up to model year 2011

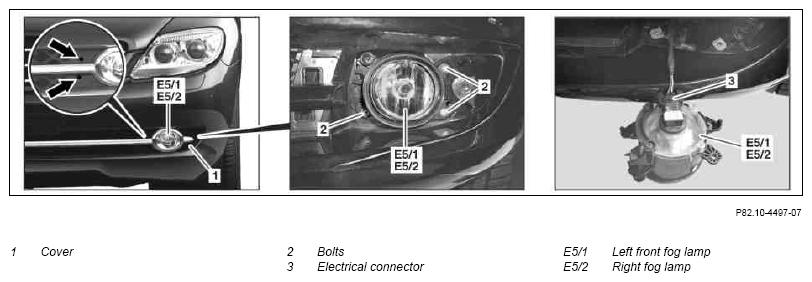

Shown on left fog lamp
| Remove/install | |||
| 1 | Unclip left or right cover (1) from the front bumper (arrows) | ||
| 2 | Unscrew screws (2) and remove left front fog lamp (E5/1) or right front fog lamp (E5/2) from the front bumper | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Install in the reverse order | ||
| 5 | Check the setting of the left front fog lamp (E5/1) or the right front fog lamp (E5/2) and correct if necessary | ||
| Check and correct the adjustment of the headlamps | AP82.10-P-8260SX |
