Remove/install inner tie rod with axial joint - AR46.40-P-0201SX

MODEL 221.0/1, 216

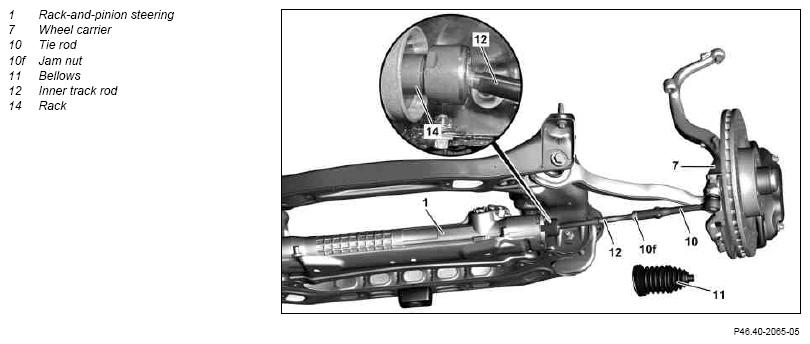

Fig 1: Identifying Axial Joint Inner Tie Rod Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove track rod (10)		AR46.40-P-0200SX
2	Unscrew lock nut (10f).
3	Remove bellows (11)		AR46.40-P-0400SX
4	Counterhold steering rack (14) using open end wrench and undo inner tie rod (12)		Fig 2
			*BA46.40-P-1003-01M
5	Unscrew inner tie rod (12)
6	Install in the reverse order

TIE ROD

Number	Designation		Model 216	Model 221
BA46.40-P-1003-01M	Inner tie rod to rack-and-pinion steering	Nm	110	110

Fig 2: Identifying Open End Wrench (201 589 00 01 00)

Courtesy of MERCEDES-BENZ USA
