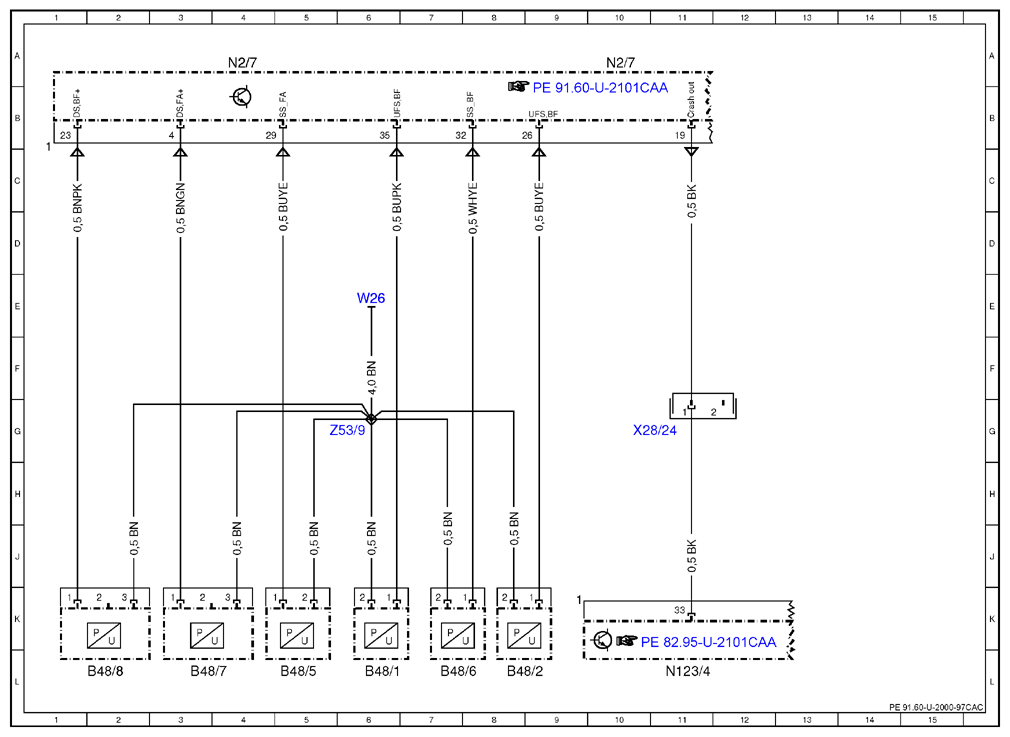

| B48/1 |
Driver-side frontal acceleration sensor |
6L |
| B48/2 |
Passenger-side frontal acceleration sensor |
8L |
| B48/5 |
Airbag system driver assist |
5L |
| B48/6 |
Airbag system front passenger assist |
7L |
| B48/7 |
Driver door pressure sensor |
3L |
| B48/8 |
Front passenger door pressure sensor |
2L |
| N123/4 |
Emergency call system control unit |
11L |
| N2/7 |
Restraint systems control unit |
4A |
| N2/7 |
Restraint systems control unit |
10A |
| W26 |
Ground (restraint systems control unit) |
6E |
| X28/24 |
Interior/telematics connector |
11G |
| Z53/9 |
Interior sleeve connector, airbag circuit 31 |
6G |
