| B48/3 |
Belt tension sensor |
12L |
| B48/3x1 |
Belt tension sensor connector |
11E |
| B48/4 |
Seat occupied recognition pressure sensor |
10L |
| CAN B |
Interior CAN |
8K |
| F1/7 |
Left instrument panel fuse box |
3L |
| F1/7f93 |
Fuse 93 |
2K |

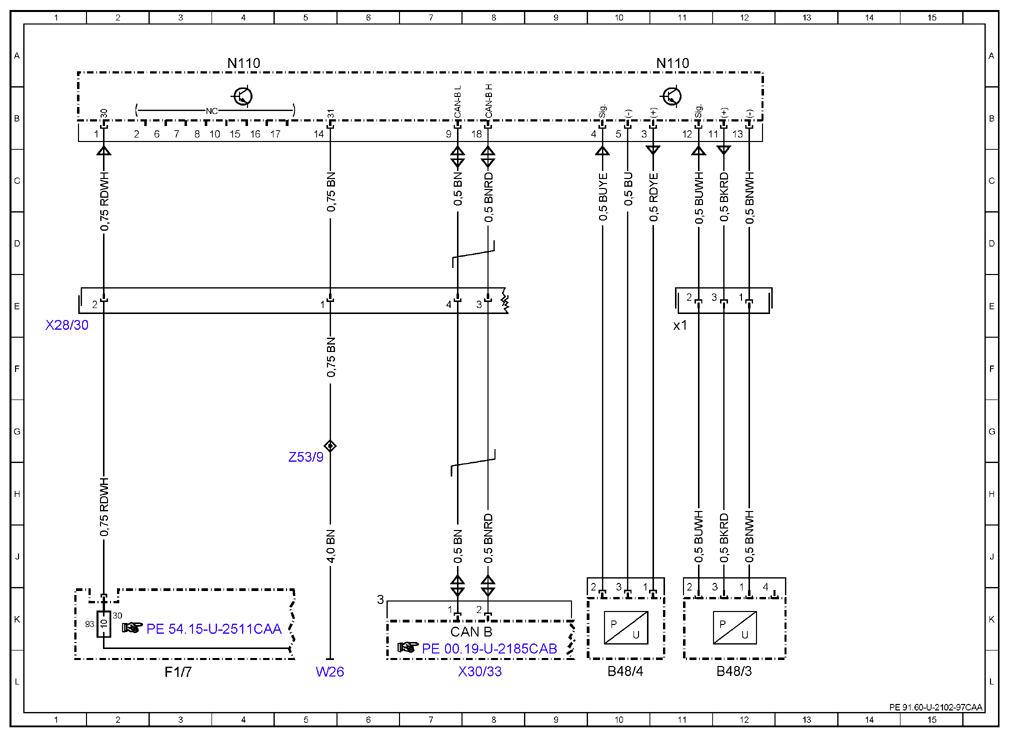

| N110 |
Weight Sensing System (WSS) control unit |
4A |
| N110 |
Weight Sensing System (WSS) control unit |
11A |
| W26 |
Ground (restraint systems control unit) |
5L |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
1E |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
8L |
| Z53/9 |
Interior sleeve connector, airbag circuit 31 |
5G |
