Removing rear head restraint - AR91.16-P-1770SC

MODEL 216.3

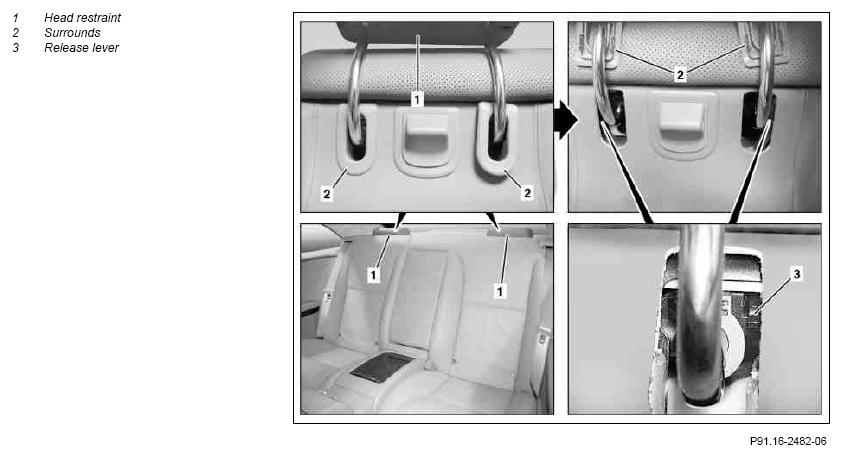

Fig 1: Identifying Rear Head Restraint

Courtesy of MERCEDES-BENZ USA

	Removing
1	Assemble head restraint (1) to be removed
2	Unclip coverings (2)		Fig 2
3	Push down left and right release levers (3) using a suitable tool and remove head restraint (1) from head restraint mechanism
	Install
4	Insert head restraint (1) into head restraint mechanism	Head restraint (1) must latch audibly on both sides.
5	Assemble head restraint (1) and clip in coverings (2)

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
