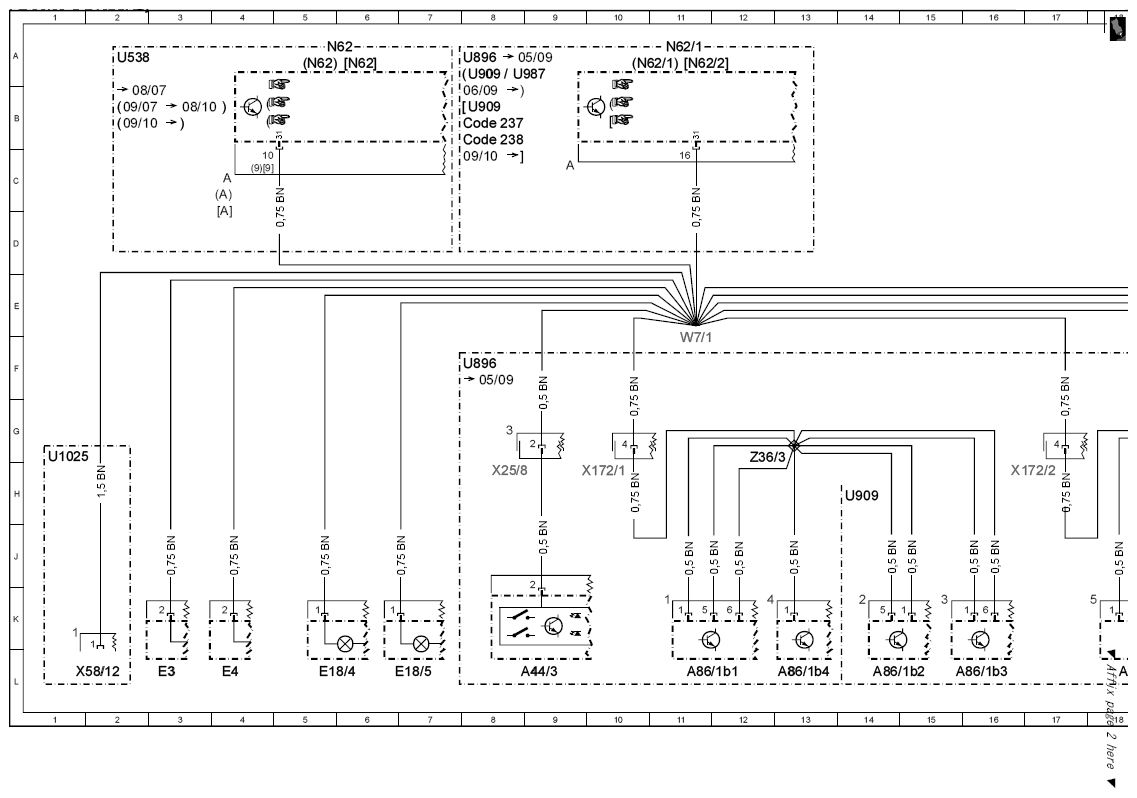

| A44/3 |
Rear PTS warning indicator |
9L |
| A86/1b1 |
Left outer radar sensor, front bumper |
11L |
| A86/1b2 |
Left inner radar sensor, front bumper |
14L |
| A86/1b2 |
Left inner radar sensor, front bumper |
26L |
| A86/1b2 |
Left inner radar sensor, front bumper |
35L |
| A86/1b3 |
Right inner radar sensor, front bumper |
16L |
| A86/1b3 |
Right inner radar sensor, front bumper |
27L |
| A86/1b3 |
Right inner radar sensor, front bumper |
36L |
| A86/1b4 |
Right outer radar sensor, front bumper |
13L |

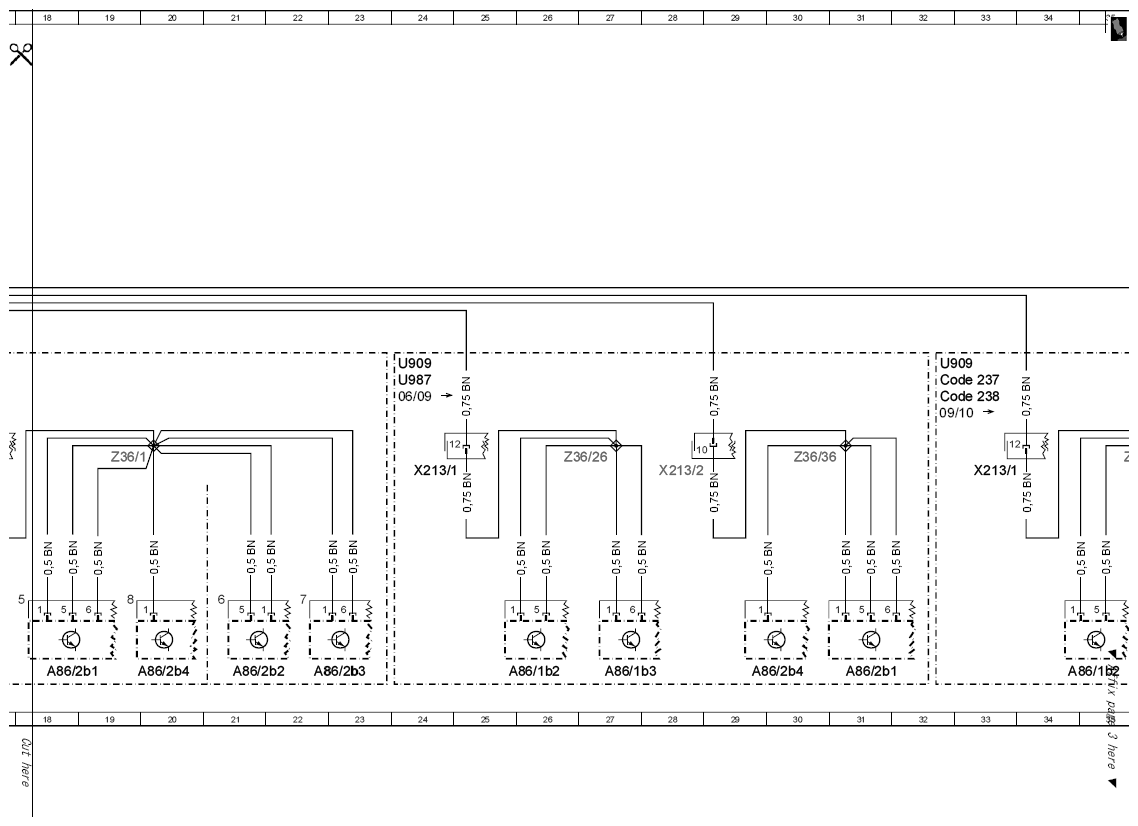

| A86/2b1 |
Right outer radar sensor, rear bumper |
18L |
| A86/2b1 |
Right outer radar sensor, rear bumper |
31L |
| A86/2b1 |
Right outer radar sensor, rear bumper |
40L |
| A86/2b2 |
Right inner radar sensor, rear bumper |
21L |
| A86/2b3 |
Left inner radar sensor, rear bumper |
22L |
| A86/2b4 |
Left outer radar sensor, rear bumper |
20L |
| A86/2b4 |
Left outer radar sensor, rear bumper |
29L |
| A86/2b4 |
Left outer radar sensor, rear bumper |
39L |
| C4/1 |
Radio interference suppression capacitor 1 |
47A |
| C4/2 |
Radio interference suppression capacitor 2 |
44A |
| Code 237 |
Active Blind Spot Assist |
8B |
| Code 237 |
Active Blind Spot Assist |
32F |
| Code 238 |
Active Lane Keeping Assist |
8B |
| Code 238 |
Active Lane Keeping Assist |
32G |
| E18/4 |
Right luggage compartment lamp |
5L |
| E18/5 |
Left luggage compartment lamp |
7L |
| E3 |
Left taillamp |
3L |
| E4 |
Right taillamp |
4L |

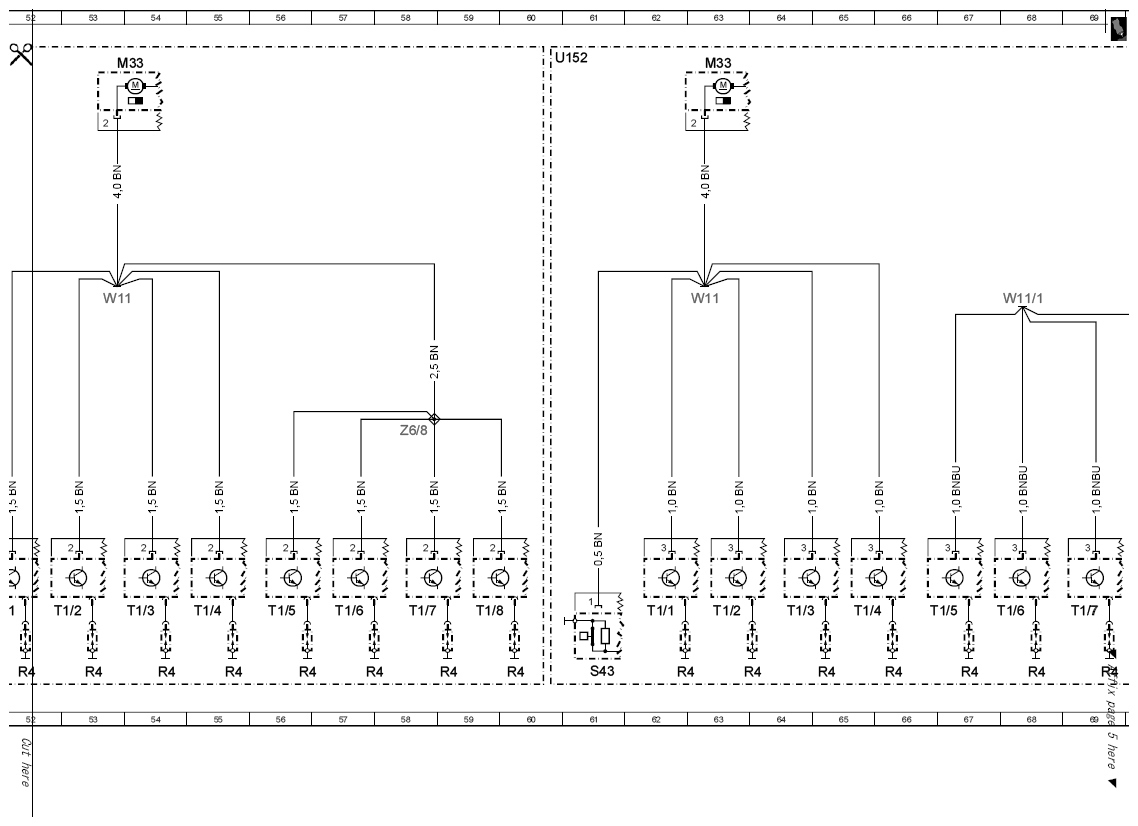

| M33 |
Electric air pump |
49A |
| M33 |
Electric air pump |
54A |
| M33 |
Electric air pump |
63A |
| N62 |
PTS control unit |
6A |
| N62 |
PTS control unit |
5A |
| N62 |
PTS control unit |
5A |
| N62/1 |
Radar sensors control unit (SGR) |
11A |
| N62/1 |
Radar sensors control unit (SGR) |
10A |
| N62/2 |
Video and radar sensor system control unit |
11A |

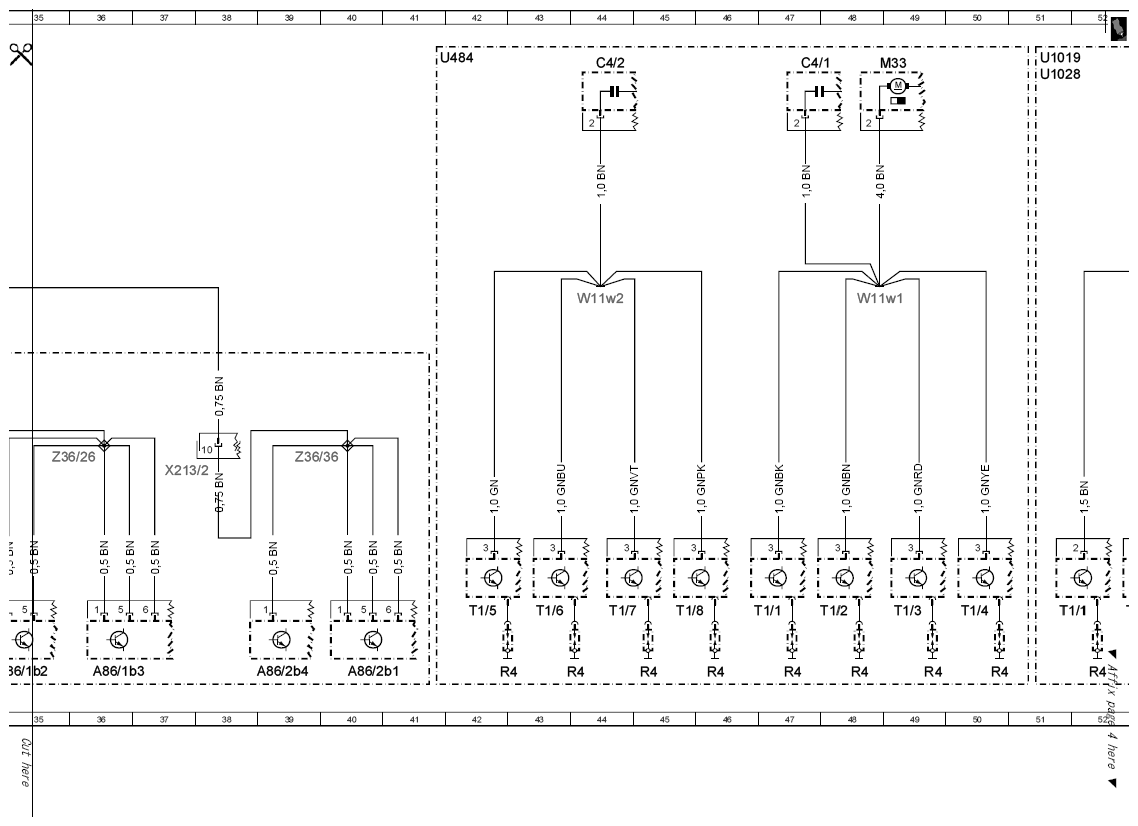

| R4 |
Spark plugs |
48L |
| R4 |
Spark plugs |
42L |
| R4 |
Spark plugs |
45L |
| R4 |
Spark plugs |
44L |
| R4 |
Spark plugs |
46L |
| R4 |
Spark plugs |
47L |
| R4 |
Spark plugs |
49L |
| R4 |
Spark plugs |
50L |
| R4 |
Spark plugs |
53L |
| R4 |
Spark plugs |
52L |
| R4 |
Spark plugs |
54L |
| R4 |
Spark plugs |
56L |
| R4 |
Spark plugs |
55L |
| R4 |
Spark plugs |
57L |
| R4 |
Spark plugs |
59L |
| R4 |
Spark plugs |
60L |
| R4 |
Spark plugs |
62L |
| R4 |
Spark plugs |
63L |
| R4 |
Spark plugs |
66L |
| R4 |
Spark plugs |
65L |
| R4 |
Spark plugs |
67L |
| R4 |
Spark plugs |
69L |
| R4 |
Spark plugs |
68L |
| R4 |
Spark plugs |
70L |
| S43 |
Oil level check switch |
61L |
| T1/1 |
Cylinder 1 ignition coil |
47K |
| T1/1 |
Cylinder 1 ignition coil |
51K |
| T1/1 |
Cylinder 1 ignition coil |
62K |
| T1/2 |
Cylinder 2 ignition coil |
48K |
| T1/2 |
Cylinder 2 ignition coil |
52K |
| T1/2 |
Cylinder 2 ignition coil |
63K |
| T1/3 |
Cylinder 3 ignition coil |
49K |
| T1/3 |
Cylinder 3 ignition coil |
54K |
| T1/3 |
Cylinder 3 ignition coil |
64K |
| T1/4 |
Cylinder 4 ignition coil |
55K |
| T1/4 |
Cylinder 4 ignition coil |
50K |
| T1/4 |
Cylinder 4 ignition coil |
65K |
| T1/5 |
Cylinder 5 ignition coil |
42K |
| T1/5 |
Cylinder 5 ignition coil |
56K |
| T1/5 |
Cylinder 5 ignition coil |
66K |
| T1/6 |
Cylinder 6 ignition coil |
68K |
| T1/6 |
Cylinder 6 ignition coil |
43K |
| T1/6 |
Cylinder 6 ignition coil |
57K |
| T1/7 |
Cylinder 7 ignition coil |
44K |
| T1/7 |
Cylinder 7 ignition coil |
58K |
| T1/7 |
Cylinder 7 ignition coil |
69K |

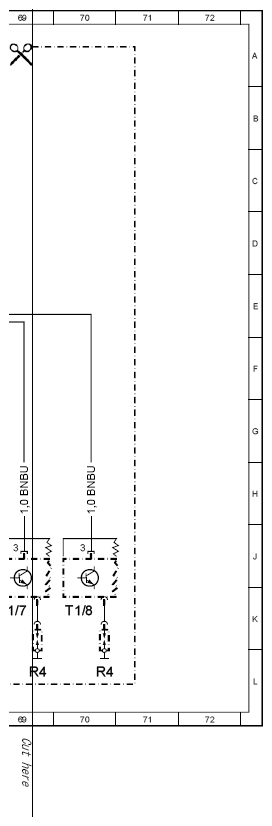

| T1/8 |
Cylinder 8 ignition coil |
45K |
| T1/8 |
Cylinder 8 ignition coil |
59K |
| T1/8 |
Cylinder 8 ignition coil |
70K |
| U1019 |
Valid for engine 278 |
51A |
| U1025 |
Valid for 12 V socket |
1G |
| U1028 |
Valid for engine 157 |
51A |
| U152 |
Valid for engine 156 |
60A |
| U484 |
Valid for M273 ME |
41A |
| U538 |
Valid for Parktronic System |
2A |
| U896 |
Valid for City Assist System |
8F |
| U896 |
Valid for City Assist System |
8A |
| U909 |
Valid for DISTRONIC PLUS |
14H |
| U909 |
Valid for DISTRONIC PLUS |
8B |
| U909 |
Valid for DISTRONIC PLUS |
8A |
| U909 |
Valid for DISTRONIC PLUS |
24F |
| U909 |
Valid for DISTRONIC PLUS |
32F |
| U987 |
Valid for Distronic Plus (light) |
8A |
| U987 |
Valid for Distronic Plus (light) |
24F |
| W11 |
Ground (engine - electrical line connected) |
53E |
| W11 |
Ground (engine - electrical line connected) |
63E |
| W11/1 |
Ground (engine - ground strap) |
68E |
| W11w1 |
Ground (engine - electrical line connected), left cylinder bank |
48E |
| W11w2 |
Ground (engine - electrical line connected), right cylinder bank |
44E |
| W7/1 |
Ground (right taillamp in trunk) |
11F |
| X172/1 |
Radar sensors/FFS [RBA] connector, front bumper |
10H |
| X172/2 |
Radar sensors/FFS [RBA] connector, rear bumper |
17H |
| X213/1 |
Front bumper Distronic (DTR) connecting point |
33H |
| X213/1 |
Front bumper Distronic (DTR) connecting point |
24H |
| X213/2 |
Rear bumper Distronic (DTR) connecting point |
37H |
| X213/2 |
Rear bumper Distronic (DTR) connecting point |
28H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
8H |
| X58/12 |
Luggage compartment socket |
2L |
| Z36/1 |
Rear PTS sensor ground connector sleeve |
19G |
| Z36/26 |
Front DISTRONIC PLUS sensor ground connector sleeve |
27G |
| Z36/26 |
Front DISTRONIC PLUS sensor ground connector sleeve |
36G |
| Z36/3 |
Front PTS sensor ground connector sleeve |
12G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
30G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
39G |
| Z6/8 |
Sensor ground connector sleeve |
58G |
