Remove/install soundproofing bottom sections - AR94.30-P-5300T

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211 with diesel engine

Front soundproofing bottom section

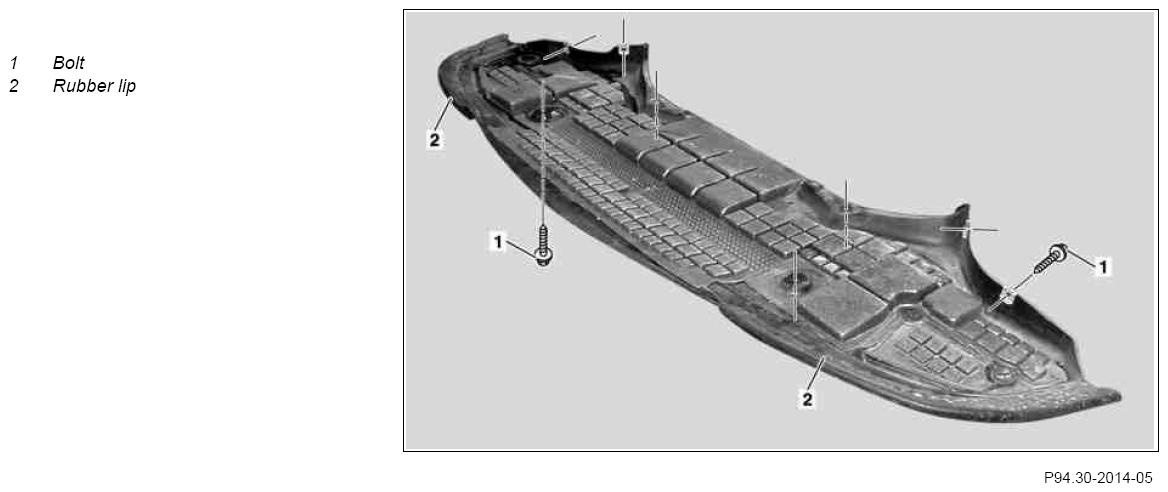

Fig 1: Identifying Front Soundproofing Bottom Section, Bolt And Rubber Lip

Courtesy of MERCEDES-BENZ USA

Center soundproofing bottom section

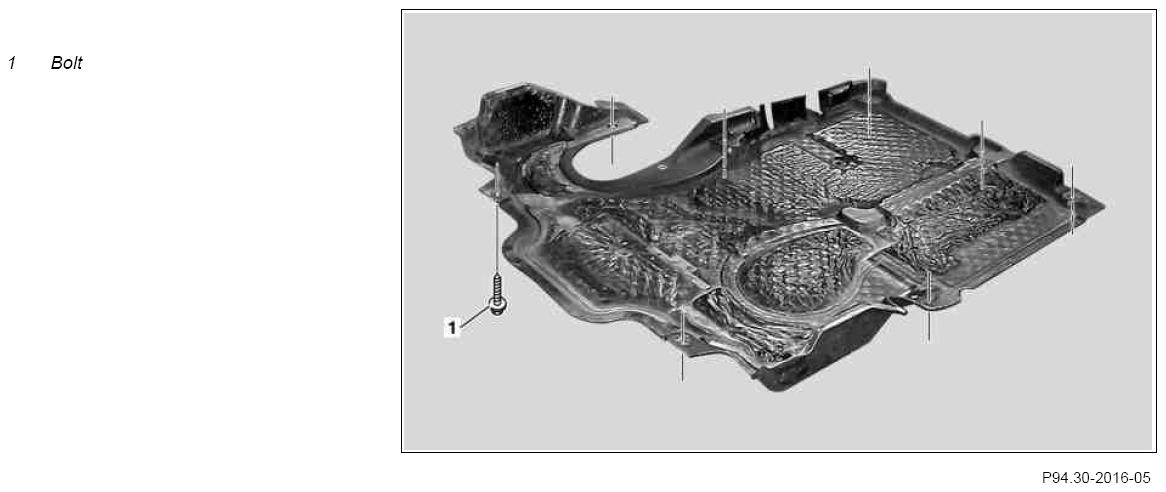

Fig 2: Identifying Center Soundproofing Bottom Section & Bolt

Courtesy of MERCEDES-BENZ USA

Rear soundproofing bottom section

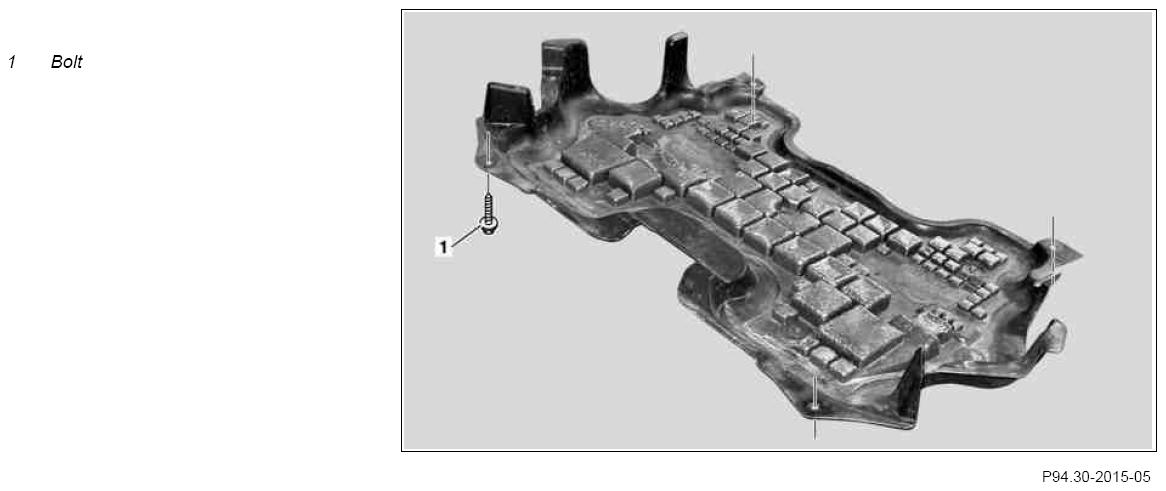

Fig 3: Identifying Rear Soundproofing Bottom Section & Bolt

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with lifting platform		AR00.60-P-1000T
2	Unscrew bolts (1) and remove soundproofing bottom sections	Observe removal sequence for soundproofing bottom sections: First remove center soundproofing bottom section. Installation: Install front soundproofing bottom section so that rubber lips (2) are concealed by bumper.
3	Install in the reverse order
