Remove/install bottom parts of soundproofing - AR94.30-P-5300EW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218 (except 204.9) Vehicles with diesel engine

Shown on model 212

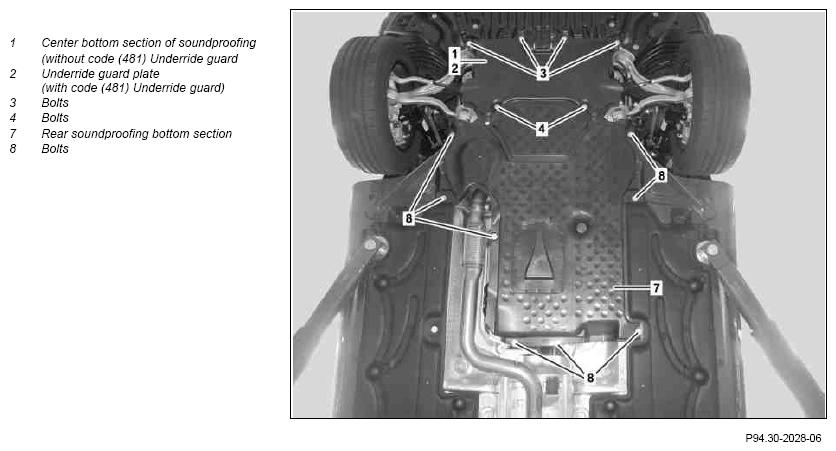

Fig 1: Identifying Soundproofing Bottom Parts (Model 212)

Courtesy of MERCEDES-BENZ USA

Shown on model 212 with engine 642

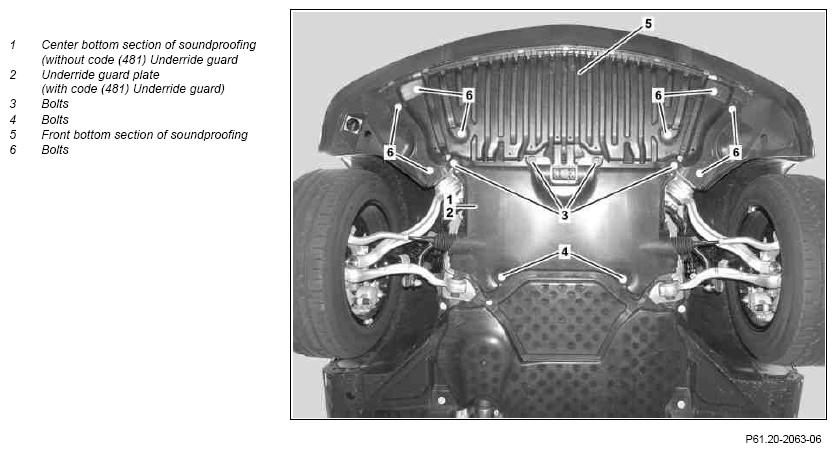

Fig 2: Identifying Soundproofing Bottom Parts (Model 212 With Engine 642)

Courtesy of MERCEDES-BENZ USA

Picture item, etc.	Work instructions
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Raise vehicle with vehicle lift
1	Middle bottom section of soundproofing	Vehicle without code (481) Underride guard Unscrew bolts (3, 4) and remove center bottom section of soundproofing (1). Rechargeable drill / screwdriver gotis://G_58.0_01.1
2	Underride guard plate	Vehicles with code (481) Underride guard Unscrew bolts (3, 4) and remove underride guard plate (2).
2	Underride guard plate		*BA61.40-P-1001-01D
5	Front bottom section of soundproofing	On vehicles without code (481) Underride guard; first remove center bottom section of soundproofing (1). On vehicles with code (481) Underride guard; first remove underride guard plate (2). Unscrew bolts (6) and remove front bottom section soundproofing (5). An additional bolt is installed at the front in the center on model 218. Rechargeable drill / screwdriver gotis://G_58.0_01.1
7	Rear soundproofing bottom section	Vehicles without code (481) Underride guard: Unscrew bolts (4, 8) and remove rear bottom section of soundproofing (7) Vehicles with code (481) Underride guard: Remove bolts (4, 8). Move underride guard plate (2) down by loosening bolts (3) and remove rear bottom section of soundproofing (7).
7	Rear soundproofing bottom section	Bolts (3, 4) Rechargeable drill / screwdriver gotis://G_58.0_01.1	*BA61.40-P-1001-01D

UNDERBODY PROTECTION

Number	Designation		Model 204 with code 481/430	Model 207 with code 481
BA61.40-P-1001-01D	Bolt, underbody protection plate	Nm	17	17

UNDERBODY PROTECTION

Number	Designation		Model 212 with code 481	Model 218 with code 481
BA61.40-P-1001-01D	Bolt, underbody protection plate	Nm	17	17
