Repair supplemental restraint system (SRS) squib wiring harness - AR54.18-P-0600A

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 124, 129, 140, 163, 164, 168, 169, 170, 171, 172, 197, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 240, 245, 251, 414, 461 as of 1.4.94, 463

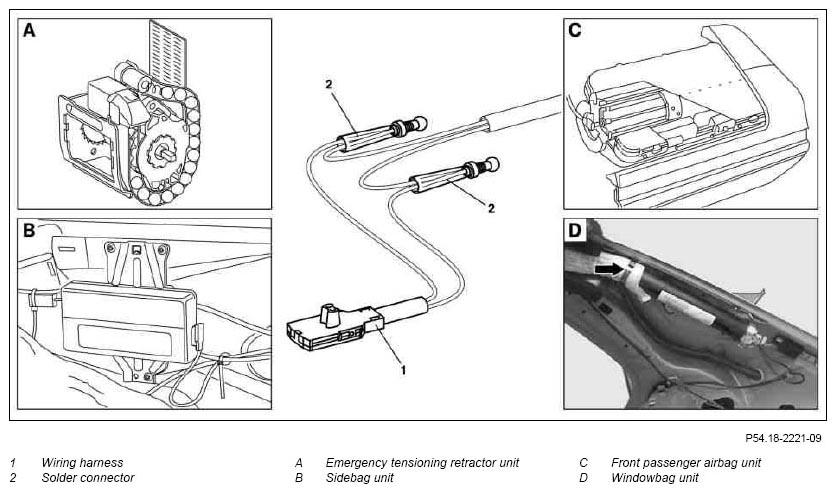

Fig 1: Identifying Wiring Harness And Solder Connector
G07742177Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units. Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. AS91.00-Z-0001-01A
DANGER Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units. Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect power supply and unplug the SRS test connector (X11/13). AS91.00-Z-0001-01B
DANGER Risk of injury  to skin and eyes caused by handling hot or glowing objects. Wear safety gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
DANGER Risk of injury  caused by burns to skin and eyes. Risk of poisoning  caused by inhaling fumes when working with heat-shrinkable tubing. Work in well ventilated rooms only. Wear safety glasses with side protection and protective gloves. AS00.19-Z-0001-01A
NOTES Notes on replacement of safety-relevant and special components   AH00.19-P-1000-08A
IMPORTANT Assessment of airbag and belt tensioner units in accident vehicles Except model 124, 126, 129 up to 30.6.93, 140, 202 up to 30.6.93 AH91.00-P-0006-01B
IMPORTANT Notes on cable protection   AH00.19-P-1000-11A
1 Remove detachable body components in area to be repaired
2 Repair wiring harness (1) using solder connector (2)   AR00.19-P-0100-09A
SPECIAL TOOL Wiring harness repair kit, basic Fig 2
SPECIAL TOOL New passenger vehicle wiring harness repair kit Fig 9
SPECIAL TOOL Wire stripper Fig 6
SPECIAL TOOL Reflector Fig 7
SPECIAL TOOL Adapter Fig 8
SPECIAL TOOL Welding bead catcher Fig 4
3 Protect repair area after cable repairs   AR00.19-P-0100-08A
4 Check wiring harness (1) IMPORTANT Function check on completion of repair. AR54.18-P-0600-01A
SPECIAL TOOL Electrical connection set Fig 5
SPECIAL TOOL 126-pin socket box Fig 3
5 Install in the reverse order
Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G07743943Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying 126-Pin Socket Box (129 589 00 21 00)
G07743945Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Welding Bead Catcher (129 589 01 98 00)
G07740805Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Electrical Connection Kit (220 589 00 99 00)
G07743324Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Wire Stripper (220 589 01 99 40)
G07740817Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Reflector (220 589 01 99 41)
G07740818Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Adapter (220 589 01 99 42)
G07740819Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)
G07740827Courtesy of MERCEDES-BENZ USA
