Relay assignment of fuse and relay box in trunk - GF54.15-P-1257-04CE

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

up to 31.5.09

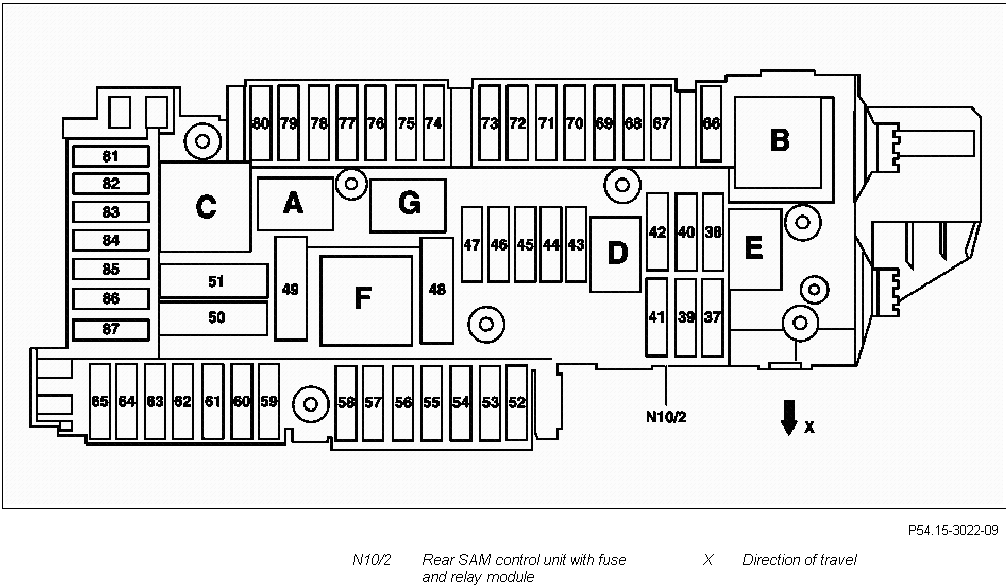

Fig 1: Fuse & Relay Assignment Of Fuse And Relay Box In Luggage Compartment

Courtesy of MERCEDES-BENZ USA

As of 1.6.09

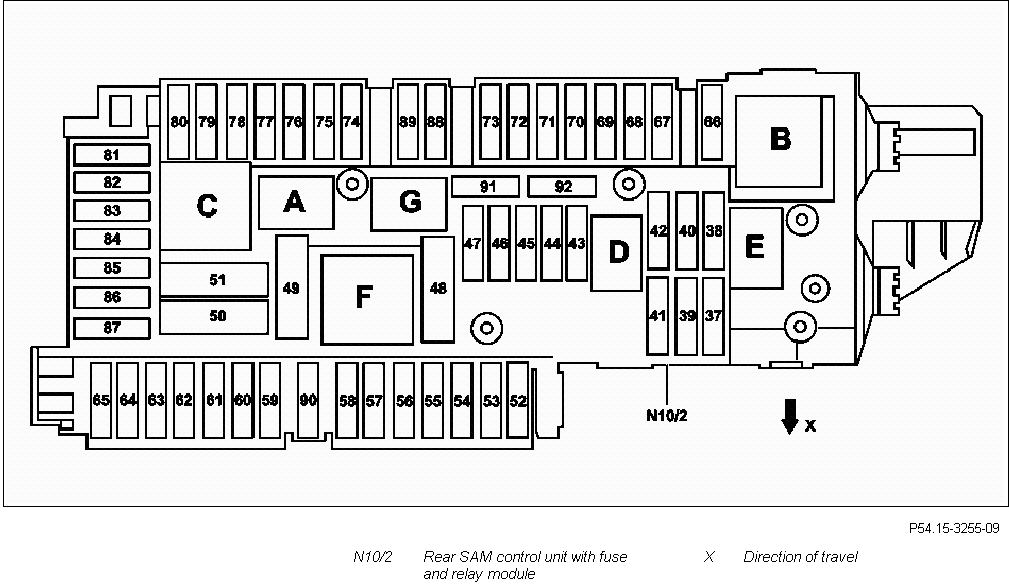

Fig 2: Fuse & Relay Assignment Of Fuse And Relay Box In Luggage Compartment

Courtesy of MERCEDES-BENZ USA

Socket	Designation
A	Terminal 15 relay (N10/2kA)
B	Circuit 15R relay (1) (N10/2kB)
C	Heated rear window relay (N10/2kC)
D	Valid for diesel engine: Fuel pump relay (N10/2kD)
R	Valid for model 204.2/9: (N10/2kE Tailgate windshield wiper relay)
F	Valid without code (275) Memory package (driver seat, steering column, mirrors): Seat adjustment relay (N10/2kF)
G	Circuit 15R relay (2) (N10/2kG)
