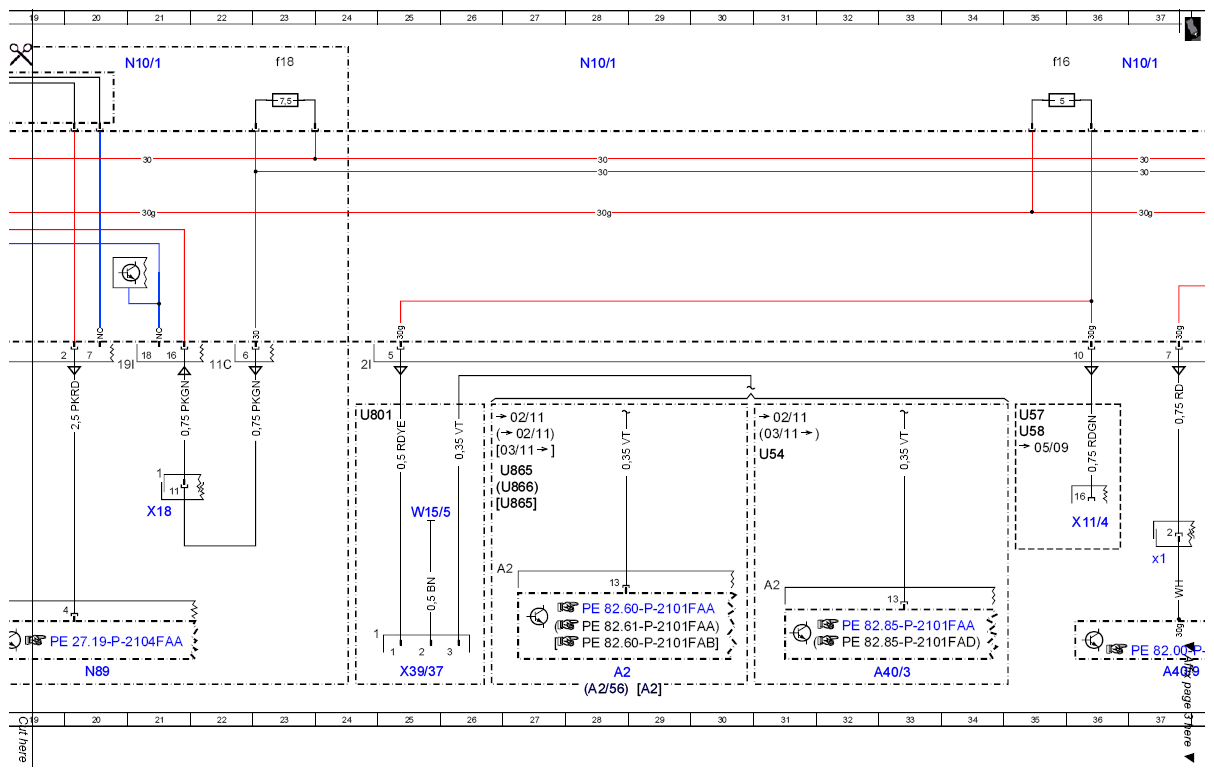

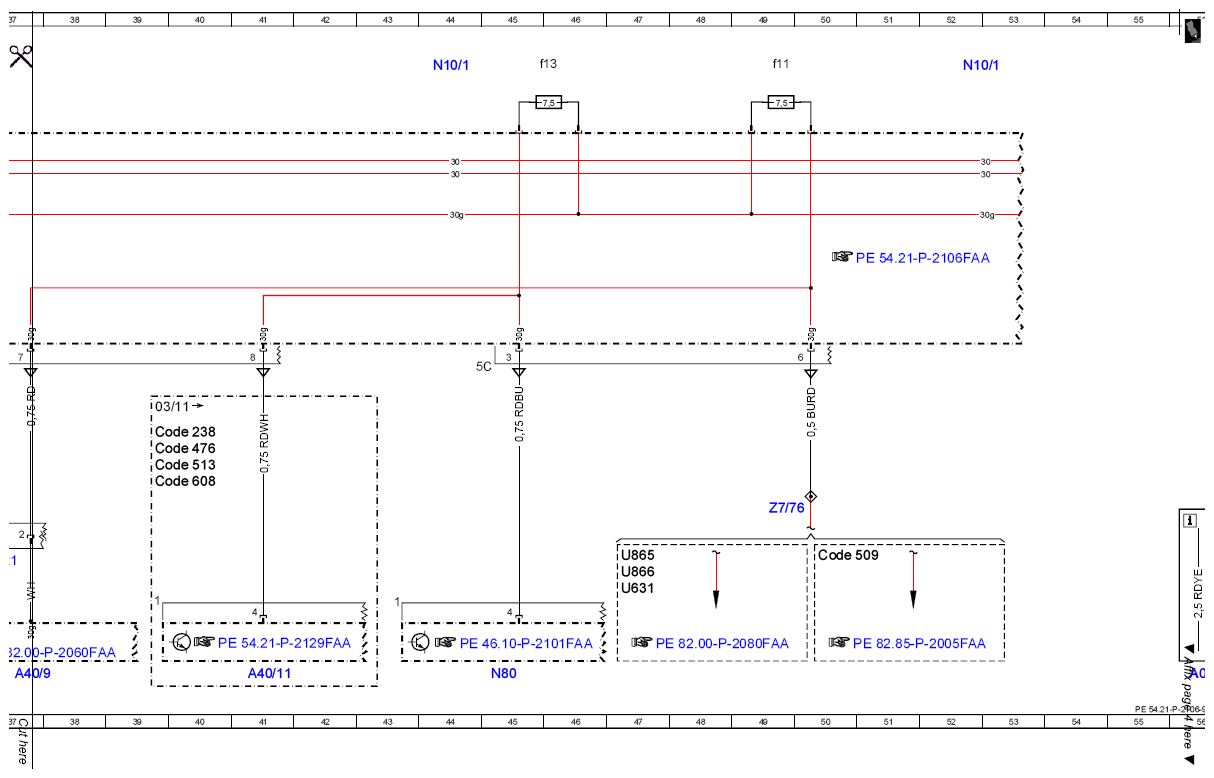

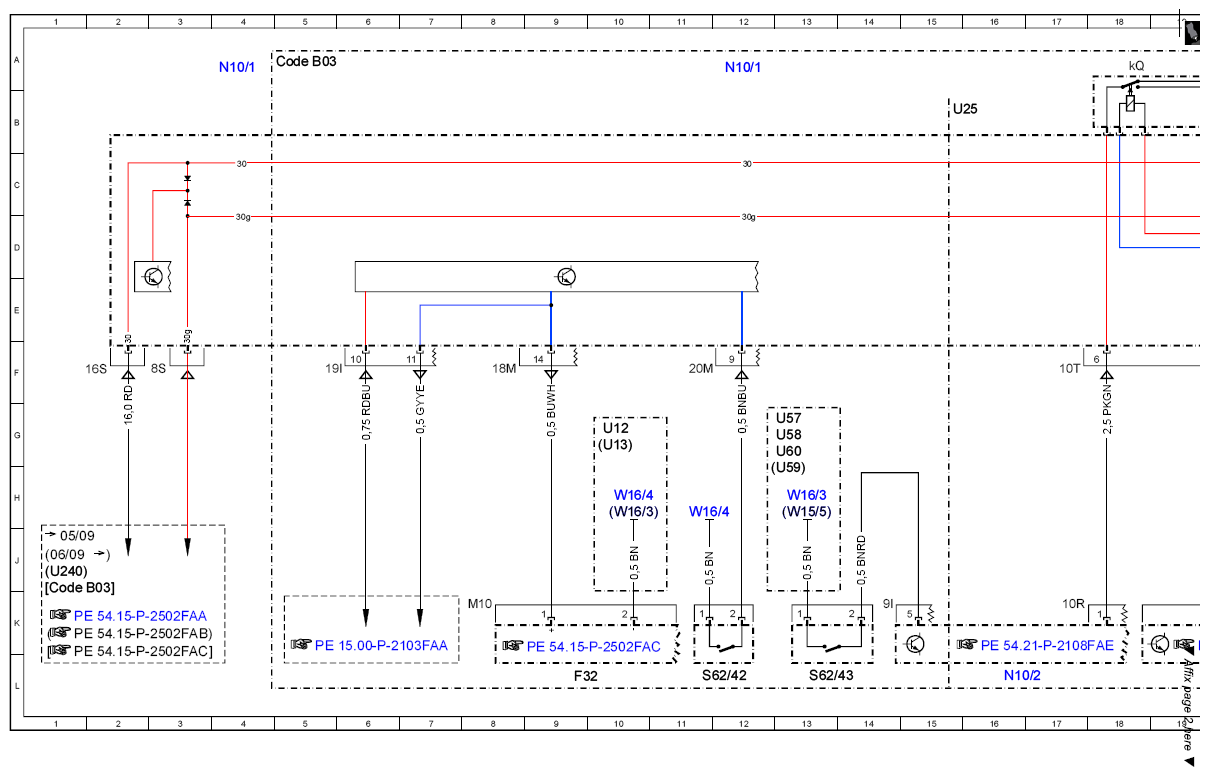

Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97FAI
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| A2 | Radio | 28L |
| A2 | Radio | 29L |
| A2/56 | Radio with auto pilot system | 28L |
| A40/11 | Multifunction camera | 41L |
| A40/3 | COMAND control unit | 33L |
| A40/9 | Audio/COMAND control panel | 37L |
| A40/9x1 | Audio/COMAND control panel electrical connector | 37J |
| Code 238 | Active Lane Keeping Assist | 39G |
| Code 476 | Automatic lane detection | 39G |
| Code 513 | Speed Limit Assist | 39H |
| Code 608 | Adaptive Highbeam Assist | 39H |
| Code B03 | ECO start/stop function | 1K |
| Code B03 | ECO start/stop function | 5A |
| F32 | Front electrical prefuse box | 9L |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 21A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 37A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N10/1f11 | Fuse 11 | 49A |
| N10/1f13 | Fuse 13 | 45A |
| N10/1f16 | Fuse 16 | 35A |
| N10/1f18 | Fuse 18 | 23A |
| N10/1kQ | Backup relay | 18A |
| N10/2 | Rear SAM control unit with fuse and relay module | 16L |
| N80 | Steering column module control unit | 45L |
| N89 | Transmission oil auxiliary pump control unit | 20L |
| S62/42 | Right engine hood contact switch | 12L |
| S62/43 | Left engine hood contact switch | 13L |
| U12 | Valid for left-hand drive vehicles | 10G |
| U13 | Valid for right-hand drive vehicles | 10G |
| U240 | Valid for all except ECO start/stop function | 1J |
| U25 | Valid for automatic transmission | 15B |
| U54 | Valid for all except Japan | 31G |
| U57 | Valid for model 204.2 | 35G |
| U58 | Valid for model 204.0 | 35G |
| U631 | Valid for COMAND | 47K |
| U777 | Valid for navigation | |
| U801 | Valid for mobile phone preinstallation with universal interface | 24G |
| U865 | Valid for Audio 20 | 26H |
| U865 | Valid for Audio 20 | 26H |
| U865 | Valid for Audio 20 | 47J |
| U866 | Valid for Audio 50 | 26H |
| U866 | Valid for Audio 50 | 47J |
| W15/5 | Left front footwell ground point | 25H |
| W15/5 | Left front footwell ground point | 13H |
| W16/3 | Left major assembly compartment ground point | 10H |
| W16/4 | Right wheelhouse ground point | 10H |
| W16/4 | Right wheelhouse ground point | 11H |
| X11/4 | Diagnostic connector | 36J |
| X18 | Vehicle interior and harness for taillamp electrical connector | 21H |
| X225 | Additional battery relay fuse electrical connector | |
| X39/37 | Mobile phone electrical connector | 25L |
