Connector separation point wiring diagram - PE54.18-P-2300-97FAI

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
A0 Color code key 80A
A9 Refrigerant compressor 8L
A9 Refrigerant compressor 38A
A9 Refrigerant compressor 72A
A9/7 Refrigerant compressor with magnetic clutch 11L
A9/7 Refrigerant compressor with magnetic clutch 74A
B16 Temperature sensor upstream of NOx storage catalytic converter, right 21L
B16/1 Temperature sensor upstream of NOx storage catalytic converter, left 23L
B19/9 Temperature sensor upstream of diesel particulate filter 77A
B4/3 Fuel tank pressure sensor 26L
B4/7 Fuel pressure sensor 41A
B4/7 Fuel pressure sensor 63A
B76/1 Condensation sensor for fuel filter with heating element 40A
B79/2 Transmission neutral position sensor 53L
CAN I Drive train sensor CAN 19K
Code 494 USA version 25D
Code 835 South Korea version 25D
Code 920 Gasoline direct injection with stratified charge 17D
Code B03 ECO start/stop function 51C
M1 Starter 7L
M1 Starter 37A
M1 Starter 70A
N10/1 Front SAM control unit with fuse and relay module 38L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 10A
N10/1 Front SAM control unit with fuse and relay module 45L
N10/1 Front SAM control unit with fuse and relay module 70L
N118 Fuel pump control unit 48L
N118 Fuel pump control unit 58L
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 27A
N3/9 CDI control unit 78L
N3/9 CDI control unit 54A
N3/9 CDI control unit 68A
N30/4 Electronic Stability Program control unit 16L
N30/4 Electronic Stability Program control unit 55L
N30/4 Electronic Stability Program control unit 50L
U1018 Valid for gasoline engine 276 1A
U12 Valid for left-hand drive vehicles 32H
U12 Valid for left-hand drive vehicles 5D
U12 Valid for left-hand drive vehicles 12E
U12 Valid for left-hand drive vehicles 64H
U13 Valid for right-hand drive vehicles 32J
U13 Valid for right-hand drive vehicles 5E
U13 Valid for right-hand drive vehicles 12E
U13 Valid for right-hand drive vehicles 64H
U24 Valid for manual transmission 51D
U486 Valid for refrigerant compressor 7H
U486 Valid for refrigerant compressor 71A
U487 Valid for refrigerant compressor with magnetic clutch 9H
U487 Valid for refrigerant compressor with magnetic clutch 74F
U487 Valid for refrigerant compressor with magnetic clutch 73A
U57 Valid for model 204.2 28H
U58 Valid for model 204.0 28H
U59 Valid for model 204.9 30H
U60 Valid for model 204.3 28H
U600 Valid for power steering pump 42A
U600 Valid for power steering pump 15D
U600 Valid for power steering pump 49H
U600 Valid for power steering pump 60A
U948 Valid for diesel engine 651 32A
U948 Valid for diesel engine 651 51A
U963 Valid for piezo fuel injector 33A
U963 Valid for piezo fuel injector 64A
U964 Valid for all except piezo fuel injector 33F
U964 Valid for all except piezo fuel injector 65F
W16/3 Left major assembly compartment ground point 13E
W16/3 Left major assembly compartment ground point 75L
W16/4 Right wheelhouse ground point 13E
W16/5 Left major assembly compartment electronics ground point 32L
W16/5 Left major assembly compartment electronics ground point 6E
W16/5 Left major assembly compartment electronics ground point 65L
W16/6 Right major assembly compartment ground point 32L
W16/6 Right major assembly compartment ground point 5E
W16/6 Right major assembly compartment ground point 65L
X220 Manual transmission neutral position sensor electrical connector 52H
X25/4 Fuel tank electrical connector 25H
X26 Interior and engine wiring harness electrical connector 1H
X26 Interior and engine wiring harness electrical connector 32H
X26 Interior and engine wiring harness electrical connector 61H
X26/7 Rear engine compartment electrical connector 74H
X30/38 Potential distributor electrical connector (CAN I) 19L
X35/6 Instrument panel and module box electrical connector 15E
X35/6 Instrument panel and module box electrical connector 45H
X35/6 Instrument panel and module box electrical connector 47H
X35/6 Instrument panel and module box electrical connector 52E
X86/3 Left nitrogen oxides control unit electrical connector 23H
X86/4 Right nitrogen oxides control unit electrical connector 21H
Y10/1 Power steering pump quantity control valve 14L
Y10/1 Power steering pump quantity control valve 43A
Y10/1 Power steering pump quantity control valve 61A
Y58/4 Activated charcoal filter shutoff valve 28L
Y74 Pressure regulator valve 34A
Y74 Pressure regulator valve 65A
Y94 Quantity control valve 36A
Z111 Air conditioning 12 Volt connector sleeve (1) 11E
Z111 Air conditioning 12 Volt connector sleeve (1) 76L
Z6 Circuit 31 connector sleeve 32E
Z6 Circuit 31 connector sleeve 65E
Z6/8 Sensor ground connector sleeve 22L
Z6/8 Sensor ground connector sleeve 78G
Z6z1 Circuit 31 connector sleeve 5L
Z6z2 Circuit 31 connector sleeve 6L
Z7/35z1 Circuit 87 M1e connector sleeve 3L
Z7/36 Circuit 87 M2e connector sleeve 20C
Z7/36 Circuit 87 M2e connector sleeve 31G
Z7/36z1 Circuit 87 M2e connector sleeve 1L
Z7/38z1 Circuit 87 M1i connector sleeve 4L
Z7/39 Circuit 87 M2i connector sleeve 20G
Z7/39 Circuit 87 M2i connector sleeve 29L
Z7/43 Sensor ground connector sleeve 56A
Z7/55 Sensor supply connector sleeve 2 57A
Z7/5z1 Circuit 87 connector sleeve 69E
Z7/5z2 Circuit 87 connector sleeve 35E
Z7/5z2 Circuit 87 connector sleeve 67E
Z7/5z3 Circuit 87 connector sleeve 34E
Z7/5z3 Circuit 87 connector sleeve 68E

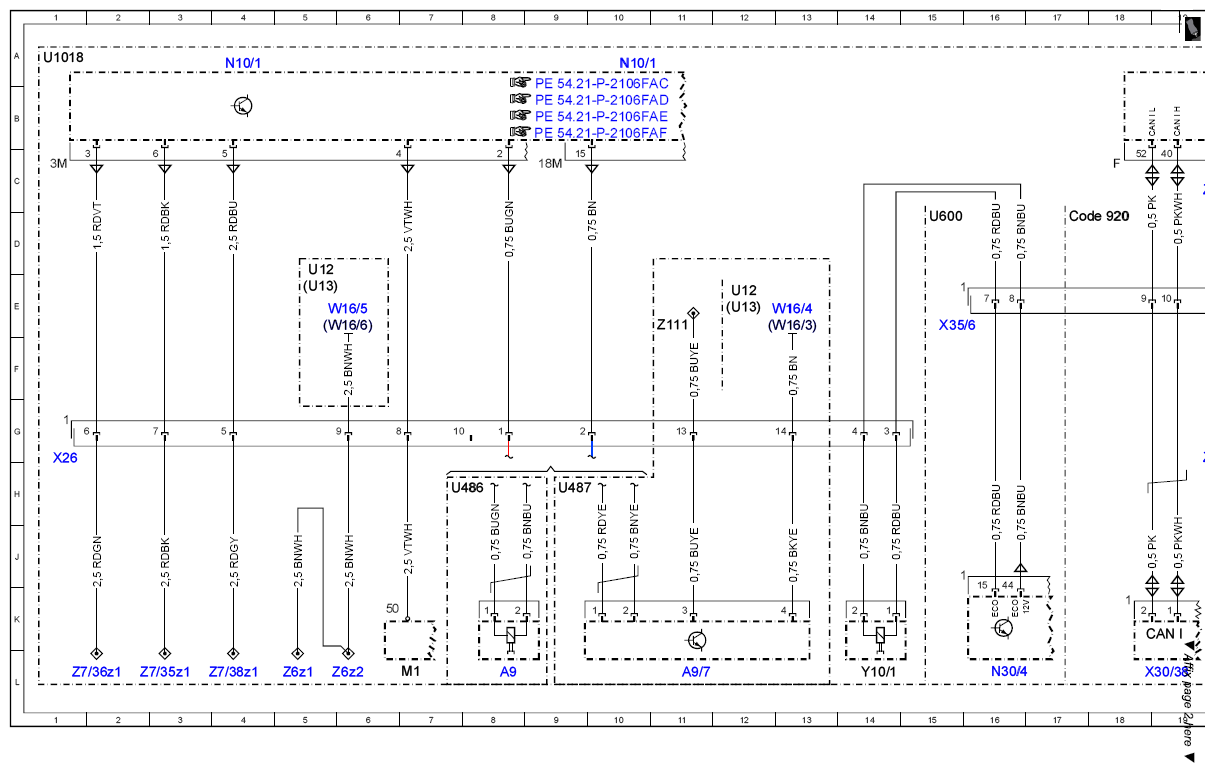

Fig 1: Connector Separation Point - Wiring Diagram (1 Of 5)
G07673987Courtesy of MERCEDES-BENZ USA

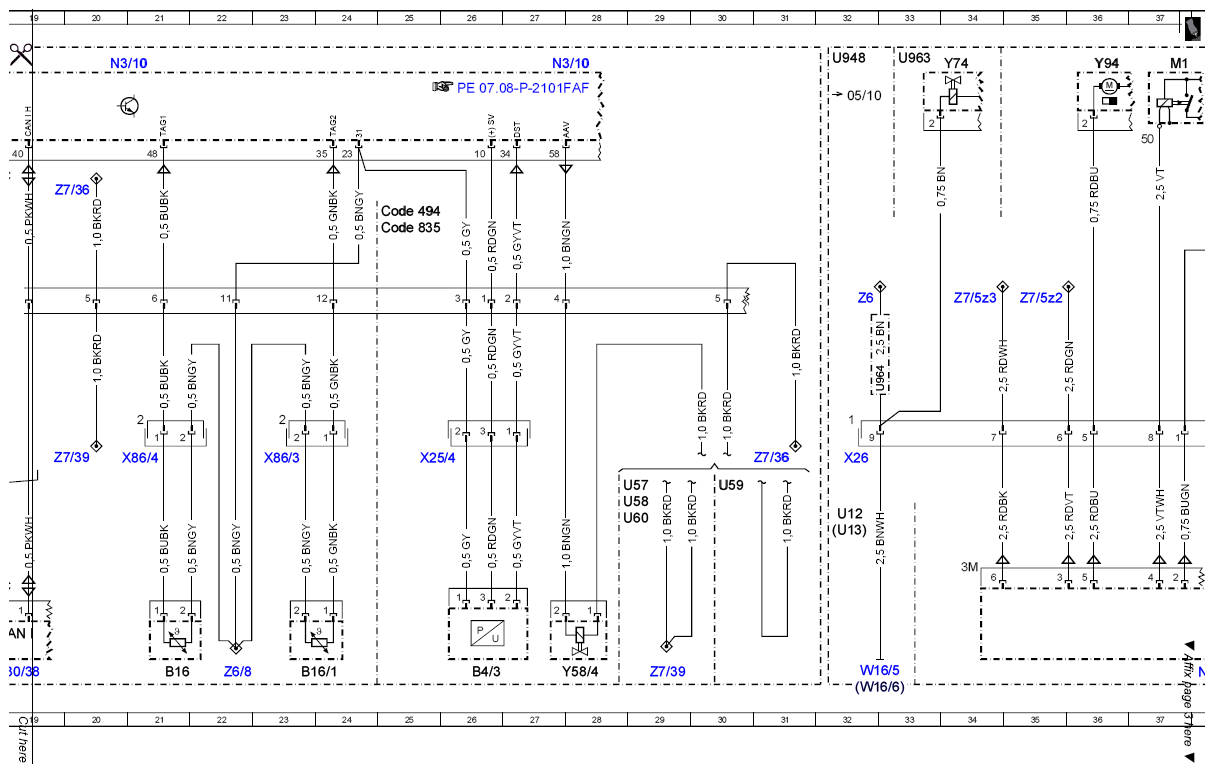

Fig 2: Connector Separation Point - Wiring Diagram (2 Of 5)
G07673988Courtesy of MERCEDES-BENZ USA

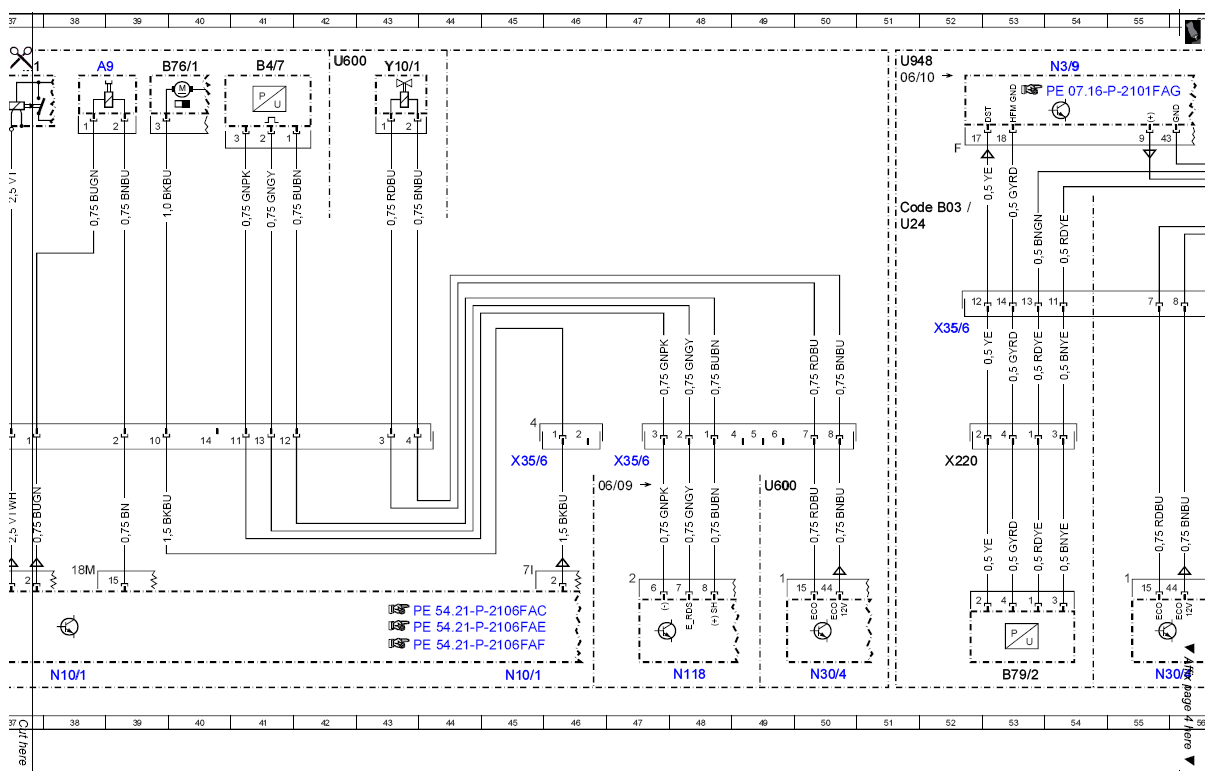

Fig 3: Connector Separation Point - Wiring Diagram (3 Of 5)
G07673989Courtesy of MERCEDES-BENZ USA

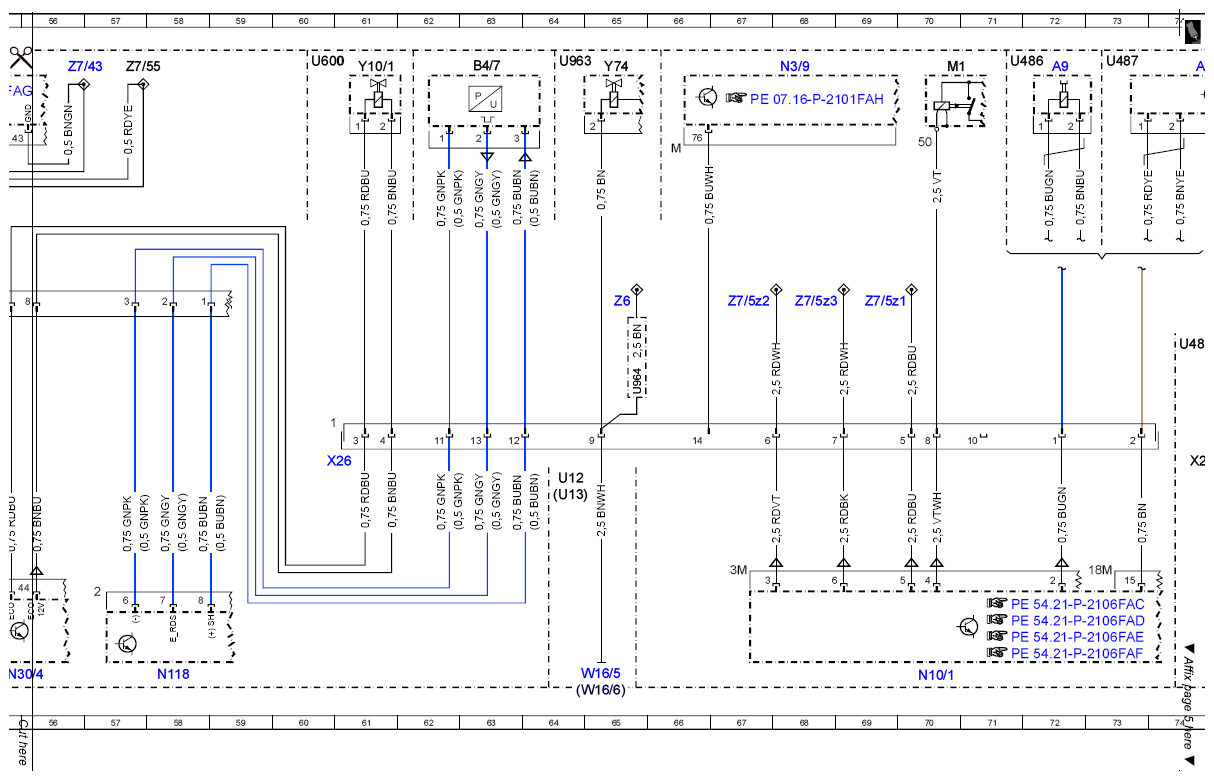

Fig 4: Connector Separation Point - Wiring Diagram (4 Of 5)
G07673990Courtesy of MERCEDES-BENZ USA

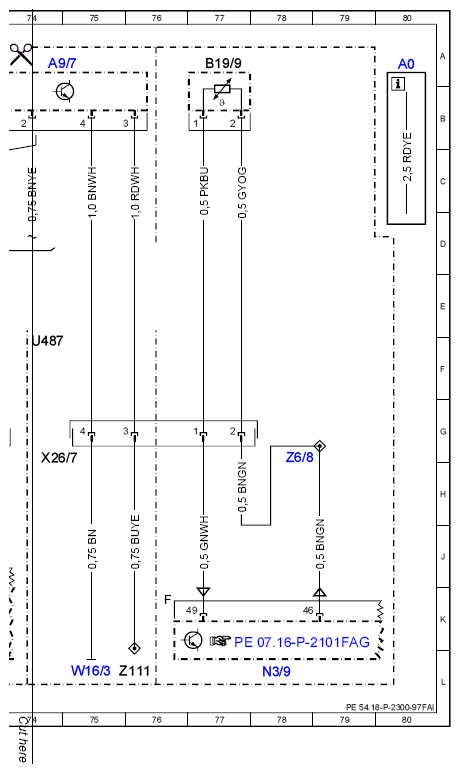

Fig 5: Connector Separation Point - Wiring Diagram (5 Of 5)
G07673991Courtesy of MERCEDES-BENZ USA
