Connector separation point wiring diagram - PE54.18-P-2300-97FAF

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Code:	Designation:	Position:
A0	Color code key	80A
B41/1	Front passenger seat occupied recognition	45L
B48	Front passenger seat occupied recognition and ACSR	43L
CAN B	Interior CAN	27B
M25/4	Driver seat lumbar support pneumatic pump	16L
M25/5	Front passenger seat lumbar support pneumatic pump	24L
N10/1	Front SAM control unit with fuse and relay module	55A
N10/2	Rear SAM control unit with fuse and relay module	12A
N10/2	Rear SAM control unit with fuse and relay module	31A
N10/2	Rear SAM control unit with fuse and relay module	62A
N110	Weight Sensing System (WSS) control unit	27L
N2/10	Supplemental restraint system control unit	34A
N2/10	Supplemental restraint system control unit	39A
N2/10	Supplemental restraint system control unit	45A
N2/10	Supplemental restraint system control unit	53A
N2/10	Supplemental restraint system control unit	65A
N2/10	Supplemental restraint system control unit	71A
N2/13	WSS (Weight Sensing System) control unit	33L
N32/23	Driver seat lumbar support adjustment control unit	18L
N32/24	Front passenger seat lumbar support adjustment control unit	22L
R12/10	Front passenger sidebag squib	40L
R12/41	Driver pelvis airbag squib	63L
R12/42	Front passenger pelvis airbag squib	48L
R12/9	Driver sidebag squib	68L
S22	Left front seat adjustment switch group	10L
S22/1	Driver seat partially electric seat adjustment switch	2L
S23	Right front seat adjustment switch group	13L
S23/1	Front passenger seat partially electric seat adjustment switch	6L
S68/3	Driver seat belt buckle restraint system switch	71L
S68/4	Front passenger seat belt buckle restraint system switch	38L
U1	Valid for USA	25A
U12	Valid for left-hand drive vehicles	9A
U12	Valid for left-hand drive vehicles	14A
U12	Valid for left-hand drive vehicles	40D
U12	Valid for left-hand drive vehicles	51E
U12	Valid for left-hand drive vehicles	66D
U13	Valid for right-hand drive vehicles	8A
U13	Valid for right-hand drive vehicles	14A
U13	Valid for right-hand drive vehicles	40E
U13	Valid for right-hand drive vehicles	51E
U13	Valid for right-hand drive vehicles	66E
U2	Valid for all except USA	42D
U284	Valid for fully electric seat adjustment	8F
U285	Valid for partially electric driver seat adjustment	1F
U286	Valid for partially electric front passenger seat adjustment	4F
U58	Valid for model 204.0	25D
U58	Valid for model 204.0	30D
U59	Valid for model 204.9	25D
U59	Valid for model 204.9	30D
U60	Valid for model 204.3	25D
U63	Valid for seat adjustment without memory function	16F
U848	Valid for ACSR	42E
U859	Valid for seat belt reminder warning	44E
U911	Valid for lumbar support	16F
U916	Valid for weight sensing system (WSS)	26A
U958	Valid for pelvis airbag	46D
U958	Valid for pelvis airbag	61D
V24	Driver overvoltage protection diode	75L
V25	Front passenger overvoltage protection diode	56L
W18	Left front seat crossmember ground point	9A
W18	Left front seat crossmember ground point	15A
W18	Left front seat crossmember ground point	41E
W18	Left front seat crossmember ground point	52E
W18	Left front seat crossmember ground point	67E
W19	Right front seat crossmember ground point	9A
W19	Right front seat crossmember ground point	15A
W19	Right front seat crossmember ground point	28E
W19	Right front seat crossmember ground point	33E
W19	Right front seat crossmember ground point	41E
W19	Right front seat crossmember ground point	52E
W19	Right front seat crossmember ground point	67E
X150/1	Driver NECK-PRO head restraint electrical connector	78H
X150/1	Driver NECK-PRO head restraint electrical connector	74H
X150/1	Driver NECK-PRO head restraint electrical connector	76H
X150/2	Front passenger NECK-PRO head restraint electrical connector	59H
X150/2	Front passenger NECK-PRO head restraint electrical connector	55H
X150/2	Front passenger NECK-PRO head restraint electrical connector	57H
X173/1	Driver pelvis airbag electrical connector	61J
X173/2	Front passenger pelvis airbag electrical connector	47J
X28/18	ACSR [AKSE] seat occupied recognition electrical connector	42K
X28/18	ACSR [AKSE] seat occupied recognition electrical connector	45K
X30/33	Right vehicle floor interior CAN voltage distributor electrical connector	27A
X55/3	Driver seat connector block	9E
X55/3	Driver seat connector block	64H
X55/4	Front passenger seat connector block	26H
X55/4	Front passenger seat connector block	13E
Y24/12	Driver seat NECK-PRO head restraint solenoid	74L
Y24/12	Driver seat NECK-PRO head restraint solenoid	79L
Y24/13	Front passenger seat NECK-PRO head restraint solenoid	55L
Y24/13	Front passenger seat NECK-PRO head restraint solenoid	60L
Z6/15	Right seat belt buckle circuit 31 connector sleeve	38E
Z6/15	Right seat belt buckle circuit 31 connector sleeve	45E
Z6/15	Right seat belt buckle circuit 31 connector sleeve	71E
Z6/94	Driver seat circuit 31 connector sleeve	9G
Z6/94	Driver seat circuit 31 connector sleeve	17G
Z6/95	Front passenger seat circuit 31 connector sleeve	14G
Z6/95	Front passenger seat circuit 31 connector sleeve	22G
Z61/18	Left seat circuit 15R connector sleeve	10G
Z61/18	Left seat circuit 15R connector sleeve	18G
Z61/19	Right seat circuit 15R connector sleeve	12G
Z61/19	Right seat circuit 15R connector sleeve	21G

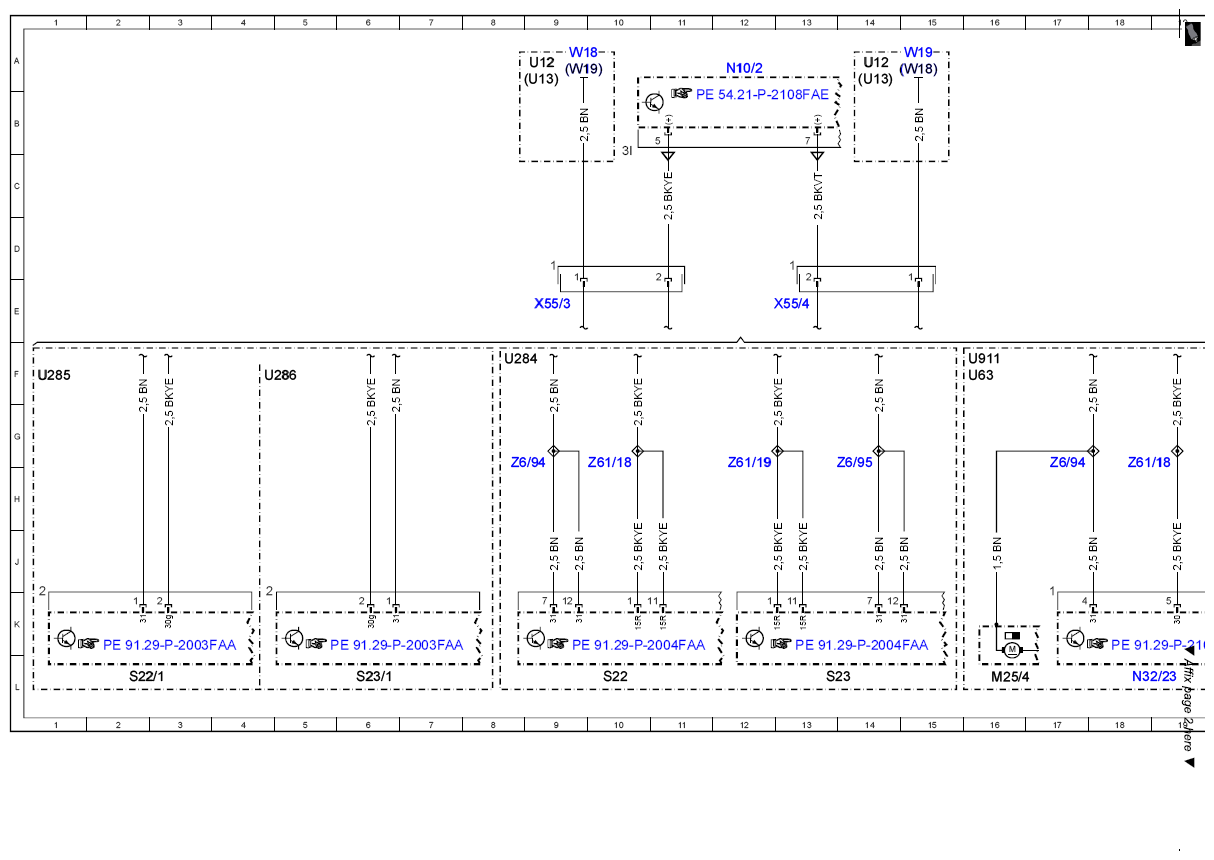

Fig 1: Connector Separation Point - Wiring Diagram (1 Of 5)

Courtesy of MERCEDES-BENZ USA

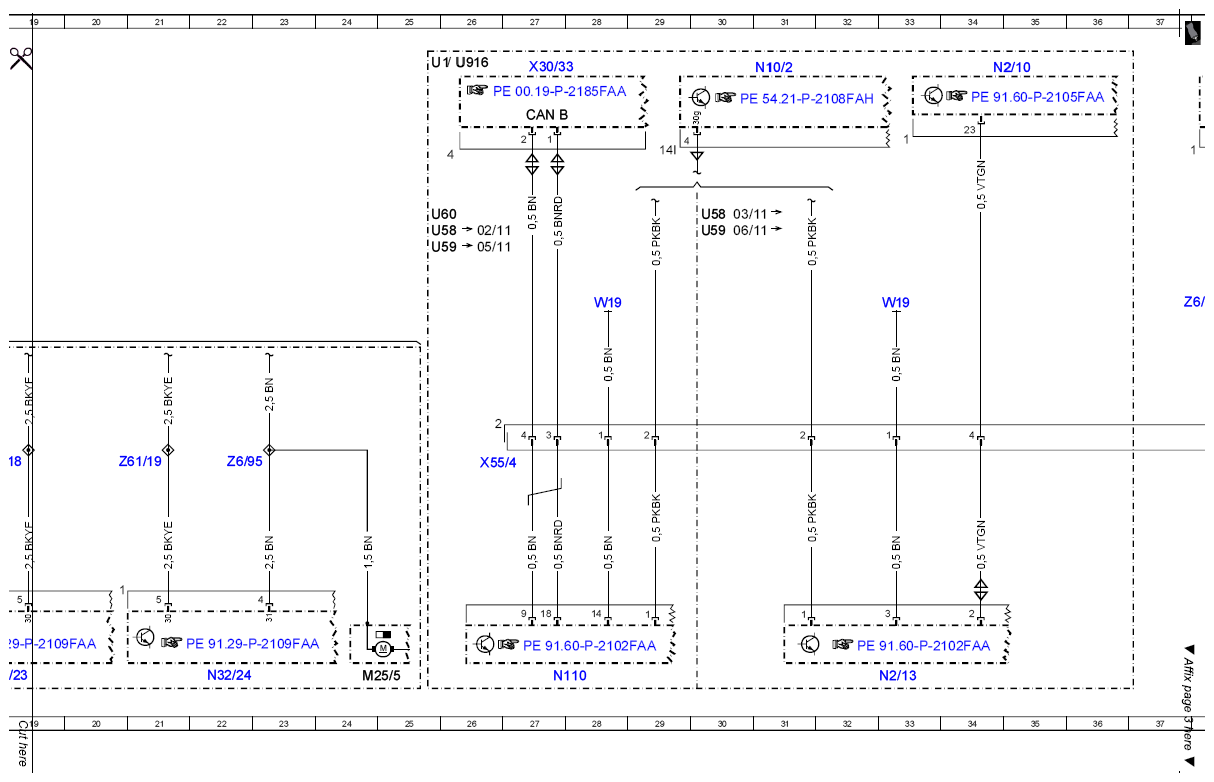

Fig 2: Connector Separation Point - Wiring Diagram (2 Of 5)

Courtesy of MERCEDES-BENZ USA

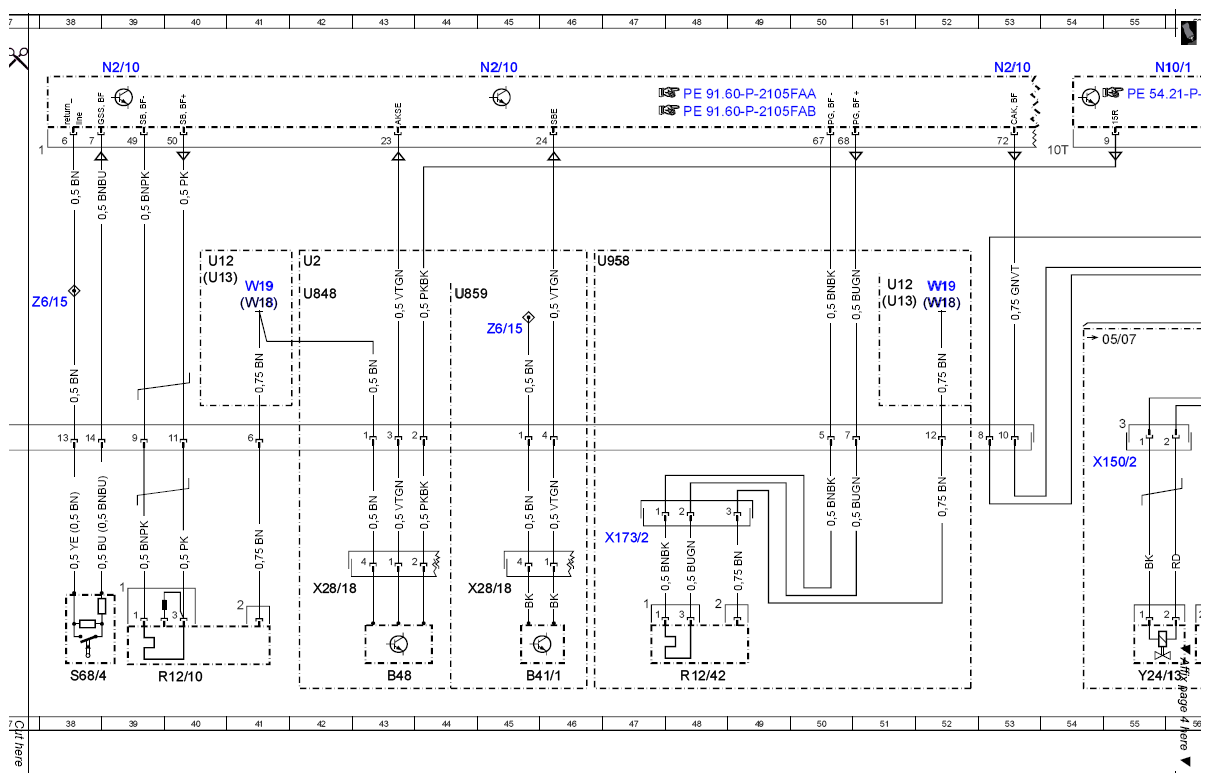

Fig 3: Connector Separation Point - Wiring Diagram (3 Of 5)

Courtesy of MERCEDES-BENZ USA

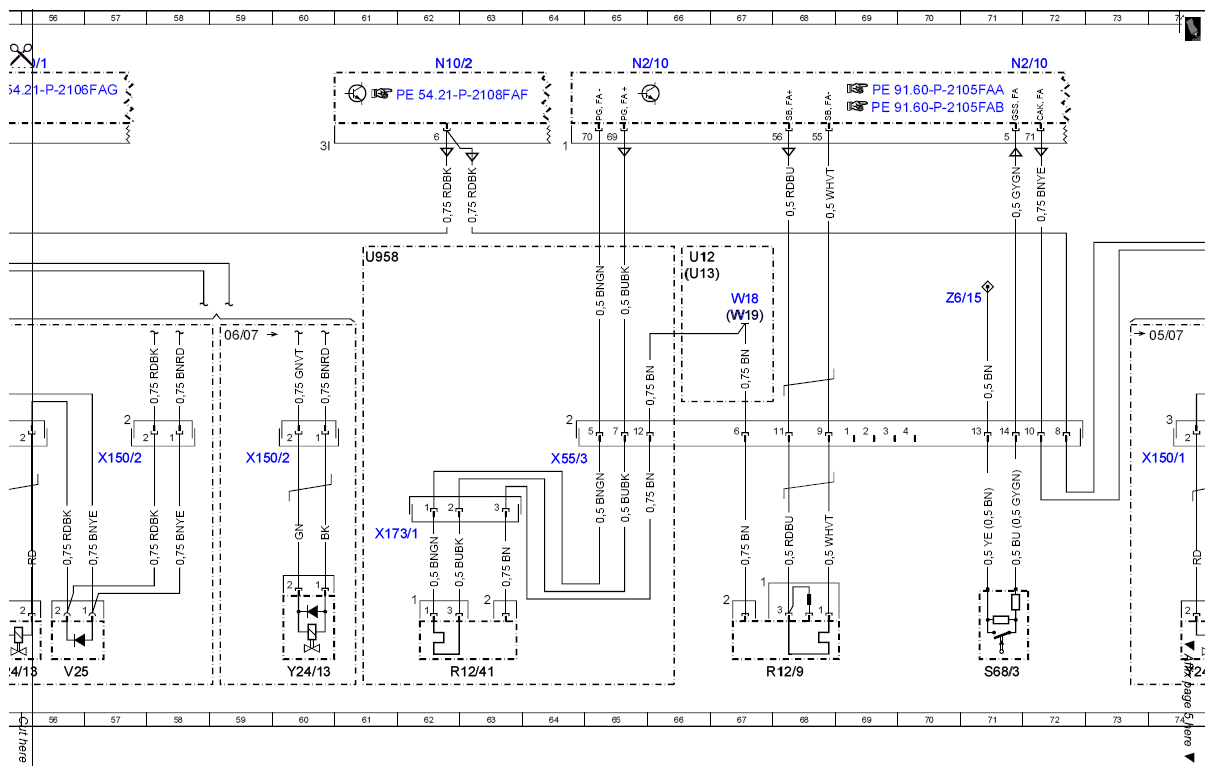

Fig 4: Connector Separation Point - Wiring Diagram (4 Of 5)

Courtesy of MERCEDES-BENZ USA

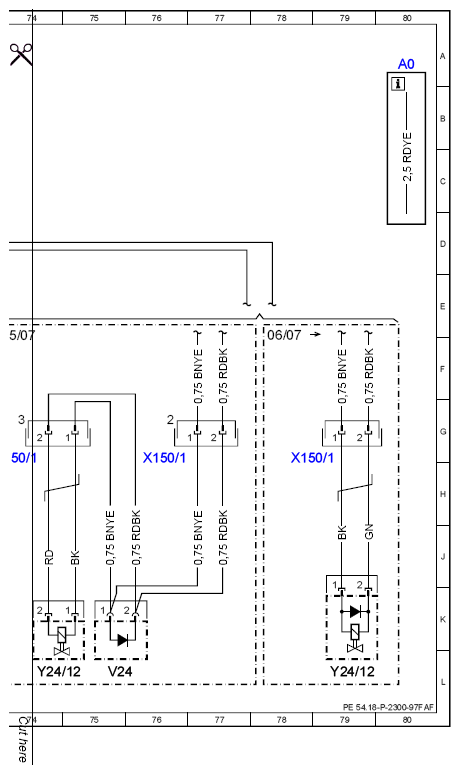

Fig 5: Connector Separation Point - Wiring Diagram (5 Of 5)

Courtesy of MERCEDES-BENZ USA
