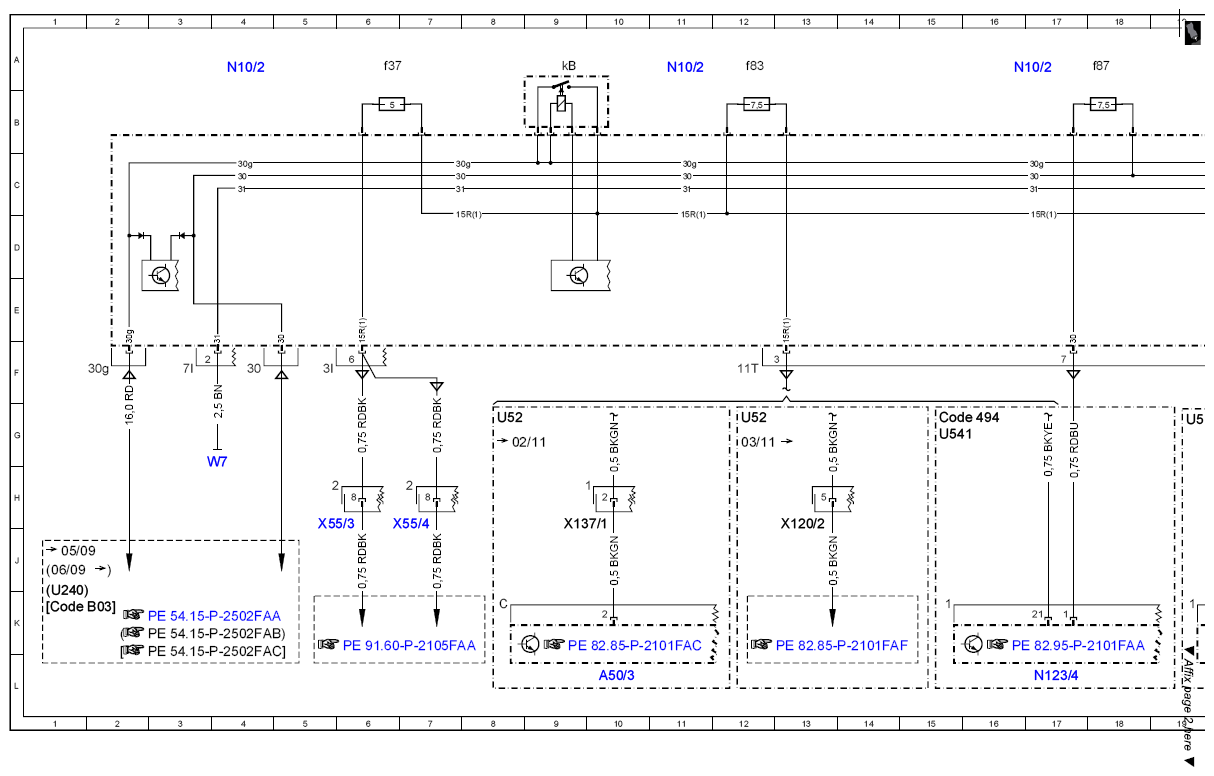

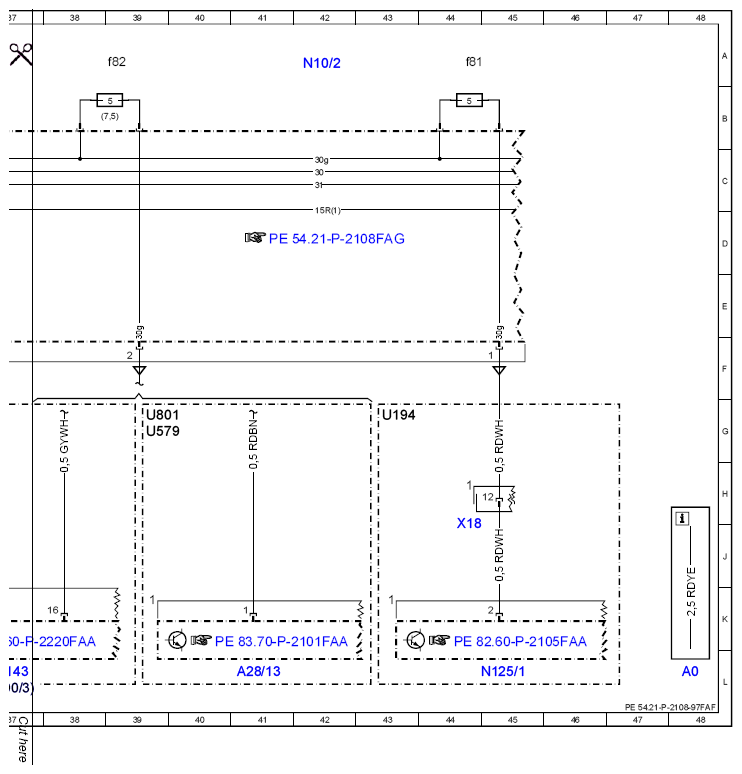

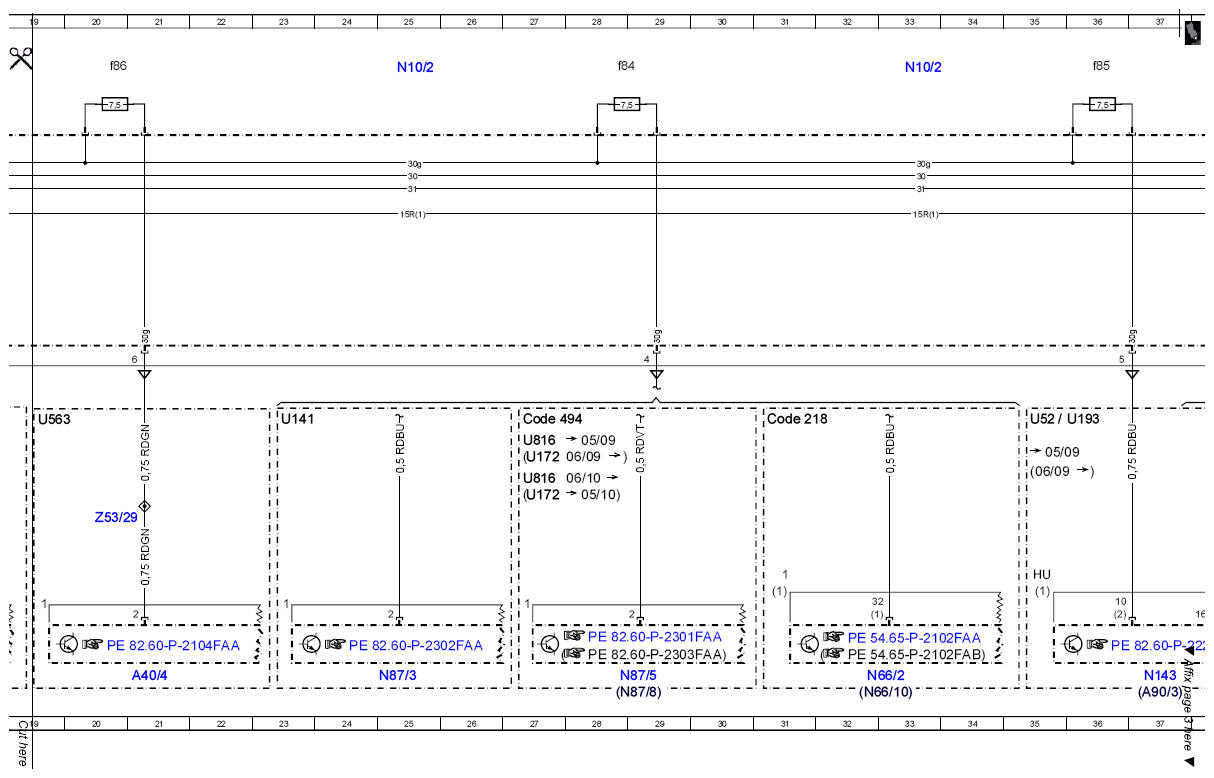

Wiring diagram for rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-97FAF
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A28/13 | Compensator /cellular telephone system UMTS | 41L |
| A40/4 | DVD player | 21L |
| A50/3 | Electronic Toll Collection control unit | 10L |
| A90/3 | TV digital tuner | 37L |
| Code 218 | Backup camera | 31G |
| Code 494 | USA version | 15G |
| Code 494 | USA version | 27G |
| Code B03 | ECO start/stop function | 1K |
| N10/2 | Rear SAM control unit with fuse and relay module | 16A |
| N10/2 | Rear SAM control unit with fuse and relay module | 11A |
| N10/2 | Rear SAM control unit with fuse and relay module | 25A |
| N10/2 | Rear SAM control unit with fuse and relay module | 33A |
| N10/2 | Rear SAM control unit with fuse and relay module | 42A |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2f37 | Fuse 37 | 6A |
| N10/2f81 | Fuse 81 | 44A |
| N10/2f82 | Fuse 82 | 39A |
| N10/2f83 | Fuse 83 | 12A |
| N10/2f84 | Fuse 84 | 28A |
| N10/2f85 | Fuse 85 | 36A |
| N10/2f86 | Fuse 86 | 20A |
| N10/2f87 | Fuse 87 | 18A |
| N10/2kB | Circuit 15R relay (1) | 9A |
| N123/4 | Emergency call system control unit | 17L |
| N125/1 | Media interface control unit | 45L |
| N143 | TV tuner control unit | 37L |
| N66/10 | Backup camera voltage supply module | 32L |
| N66/2 | Backup camera control unit | 32L |
| N87/3 | Digital Audio Broadcasting control unit | 25L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 29L |
| N87/8 | SDAR control unit / high definition tuner | 28L |
| U141 | Valid for Digital Audio Broadcasting | 23G |
| U172 | Valid for high-definition tuner control unit | 27G |
| U172 | Valid for high-definition tuner control unit | 27H |
| U193 | Valid for TV and Video | 36G |
| U194 | Valid for AUX jack | 43G |
| U240 | Valid for all except ECO start/stop function | 1K |
| U52 | Valid for Japan | 8G |
| U52 | Valid for Japan | 35G |
| U52 | Valid for Japan | 12G |
| U541 | Valid for TELEAID emergency call system | 15G |
| U563 | Valid for rear entertainment (DVD) | 19G |
| U579 | Valid for stationary heater | 39G |
| U801 | Valid for mobile phone preinstallation with universal interface | 39G |
| U816 | Valid for satellite digital audio radio (SDAR) | 27G |
| U816 | Valid for satellite digital audio radio (SDAR) | 27H |
| W7 | Right wheelhouse trunk ground point | 4H |
| X120/2 | External fan electrical connector, frame floor assembly/cockpit | 13H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 9H |
| X18 | Vehicle interior and harness for taillamp electrical connector | 44J |
| X55/3 | Driver seat connector block | 6H |
| X55/4 | Front passenger seat connector block | 7H |
| Z53/29 | Rear entertainment system circuit 30 connector sleeve | 20H |
