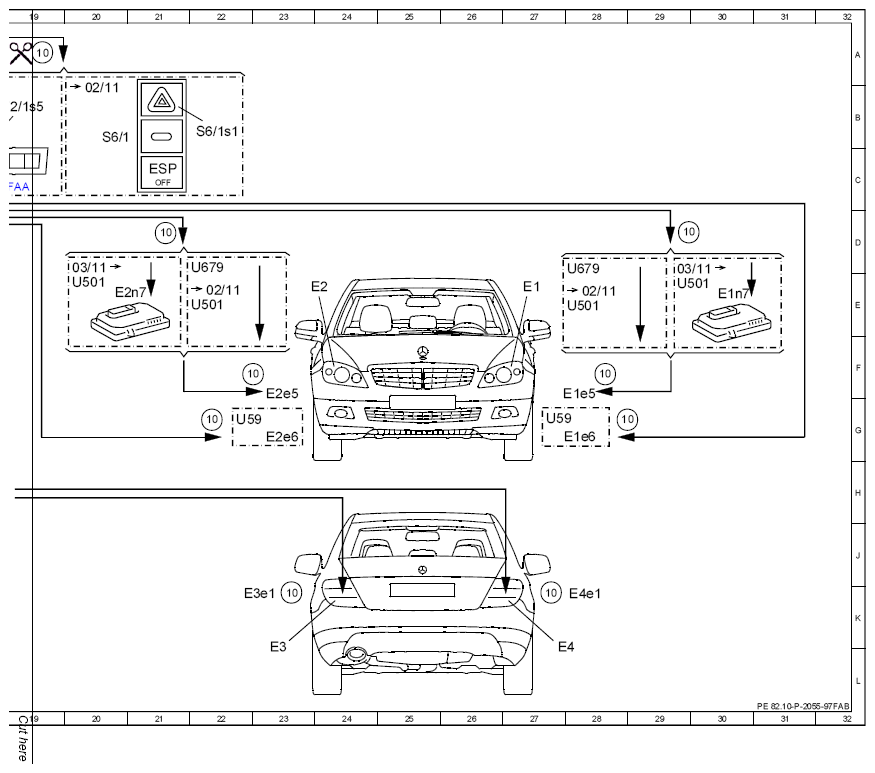

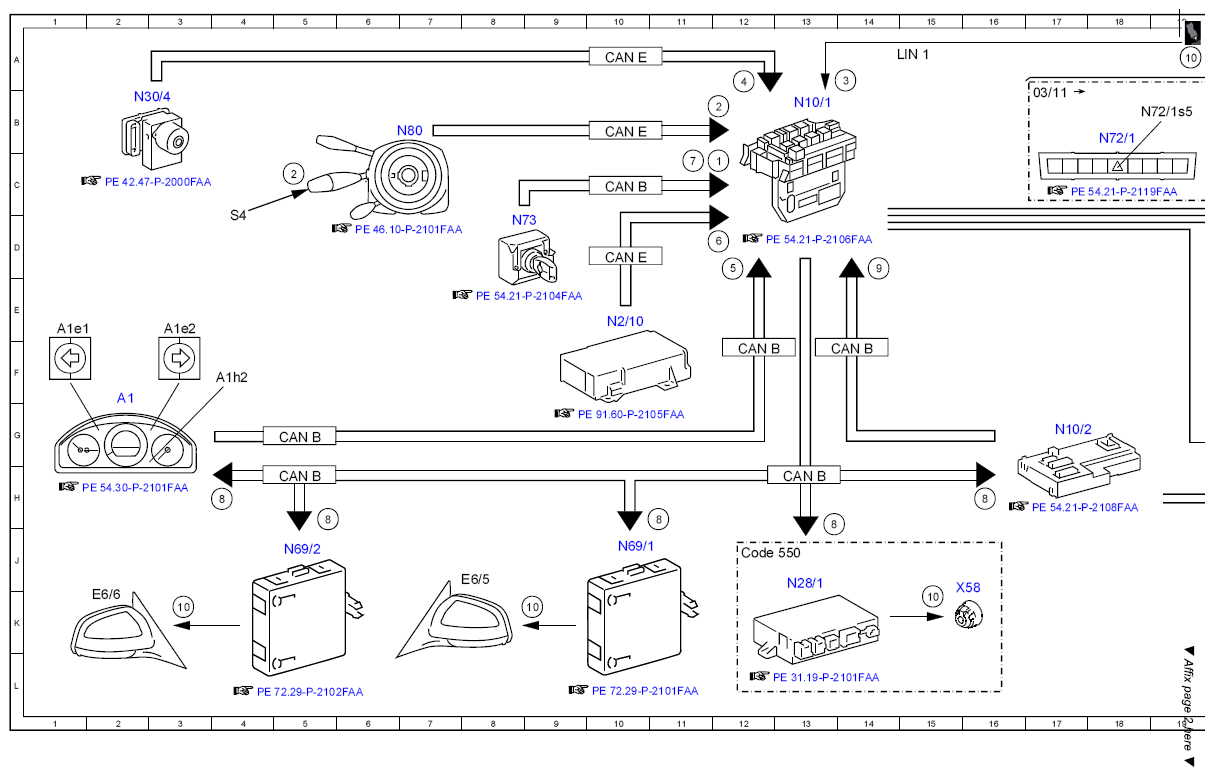

Electrical function schematic, turn signal light actuation - PE82.10-P-2055-97FAB
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12C |
| 10 | Turn signal lamp, actuation | 3K |
| 10 | Turn signal lamp, actuation | 9K |
| 10 | Turn signal lamp, actuation | 15K |
| 10 | Turn signal lamp, actuation | 23K |
| 10 | Turn signal lamp, actuation | 27K |
| 10 | Turn signal lamp, actuation | 19A |
| 10 | Turn signal lamp, actuation | 22F |
| 10 | Turn signal lamp, actuation | 28F |
| 10 | Turn signal lamp, actuation | 29D |
| 10 | Turn signal lamp, actuation | 21D |
| 10 | Turn signal lamp, actuation | 22G |
| 10 | Turn signal lamp, actuation | 28G |
| 2 | Combination switch, status | 12B |
| 2 | Combination switch, status | 5C |
| 3 | Hazard warning flasher switch, status | 14A |
| 4 | Emergency stop, signal | 12A |
| 5 | Vehicle speed, signal | 12D |
| 6 | Crash, signal | 12D |
| 7 | Central locking (CL[ZV]), status | 11C |
| 8 | Flasher frequency, signal | 5H |
| 8 | Flasher frequency, signal | 11H |
| 8 | Flasher frequency, signal | 4H |
| 8 | Flasher frequency, signal | 16H |
| 8 | Flasher frequency, signal | 13H |
| 9 | ATA [EDW] flashing, request | 14D |
| A1 | Instrument cluster | 2F |
| A1e1 | Left turn signal indicator light | 1E |
| A1e2 | Right turn signal indicator light | 3E |
| A1h2 | Turn signal light function check, acoustic | 4F |
| CAN B | Interior CAN | 5H |
| CAN B | Interior CAN | 10C |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 14F |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 5G |
| CAN E | Chassis CAN | 10D |
| CAN E | Chassis CAN | 10B |
| CAN E | Chassis CAN | 10A |
| Code 550 | Trailer hitch | 12J |
| E1 | Left front lamp unit | 27E |
| E1e5 | Left front turn signal lamp | 27F |
| E1e6 | Left front side-marker lamp | 27G |
| E1n7 | Left signal lamp actuation module LED | 30E |
| E2 | Right front lamp unit | 23E |
| E2e5 | Right front turn signal lamp | 23F |
| E2e6 | Right front side-marker lamp | 23G |
| E2n7 | Right signal lamp actuation module LED | 20E |
| E3 | Left rear lamp unit | 23L |
| E3e1 | Left rear turn signal lamp | 22K |
| E4 | Right rear lamp unit | 27L |
| E4e1 | Right rear turn signal lamp | 28K |
| E6/5 | Left outside mirror turn signal lamp | 7J |
| E6/6 | Right outside mirror turn signal lamp | 2K |
| LIN 1 | Instrument panel LIN | 15A |
| N10/1 | Front SAM control unit with fuse and relay module | 13B |
| N10/2 | Rear SAM control unit with fuse and relay module | 17G |
| N2/10 | Supplemental restraint system control unit | 10E |
| N28/1 | Trailer recognition control unit | 13J |
| N30/4 | Electronic Stability Program control unit | 2B |
| N69/1 | Left front door control unit | 10J |
| N69/2 | Right front door control unit | 5J |
| N72/1 | Upper control panel control unit | 18B |
| N72/1s5 | Hazard warning system button | 18B |
| N73 | Electronic ignition switch control unit | 8D |
| N80 | Steering column module control unit | 6B |
| S4 | Combination switch | 4D |
| S6/1 | Instrument panel switch group | 20B |
| S6/1s1 | Hazard warning flasher switch | 22B |
| U501 | Valid for xenon headlamps | 20E |
| U501 | Valid for xenon headlamps | 29E |
| U501 | Valid for xenon headlamps | 22E |
| U501 | Valid for xenon headlamps | 28E |
| U59 | Valid for model 204.9 | 22G |
| U59 | Valid for model 204.9 | 27G |
| U679 | Valid for version without xenon headlamps | 22D |
| U679 | Valid for version without xenon headlamps | 28D |
| X58 | Trailer socket | 15K |
