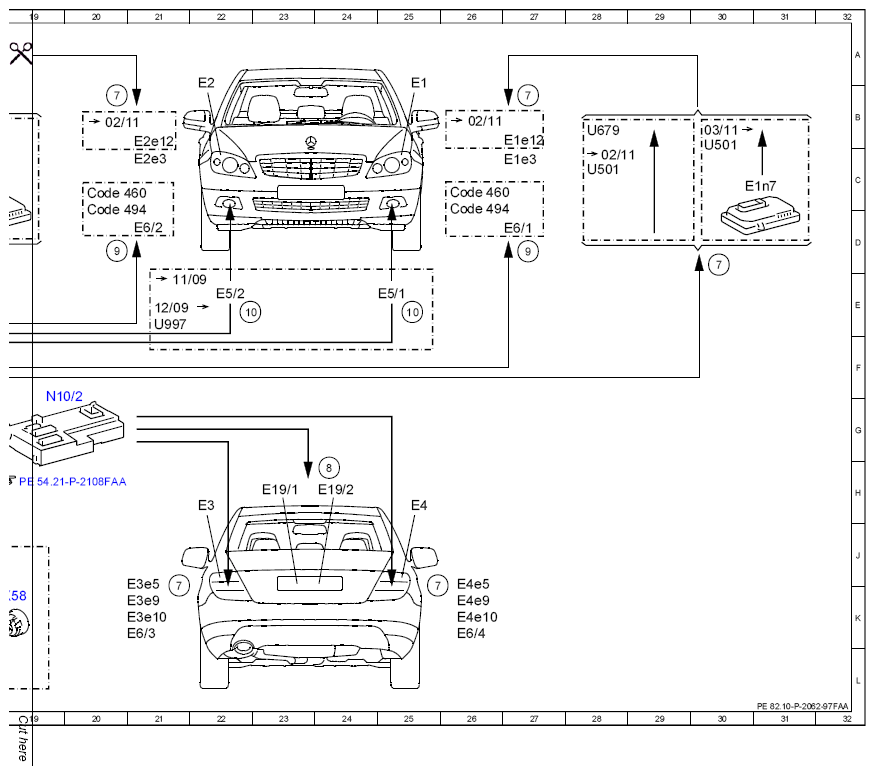

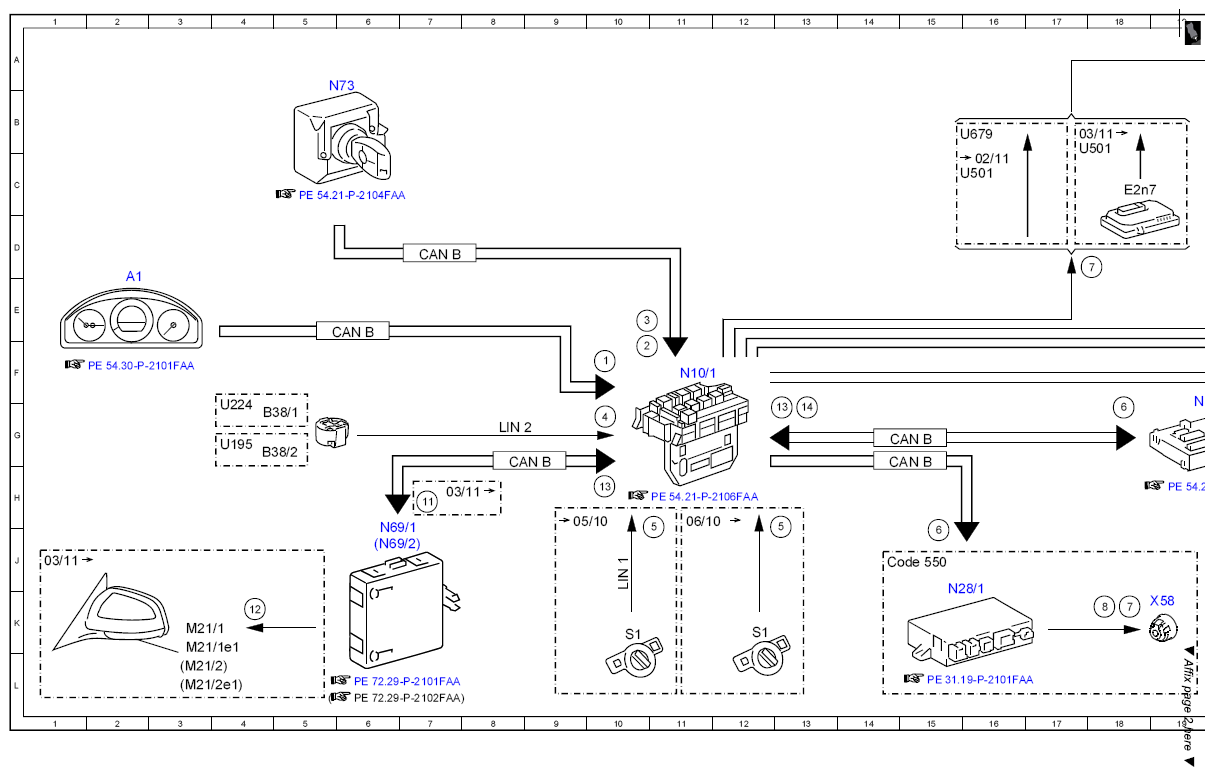

Electrical function schematic, headlamp switch-off delay (SWA) - PE82.10-P-2062-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Headlamp switch-off delay, request | 10F |
| 10 | Front fog lamps, actuation | 22E |
| 10 | Front fog lamps, actuation | 25E |
| 11 | Ambient lamp, request | 7H |
| 12 | Ambient lamp, actuation | 4K |
| 13 | Door rotary tumbler switch, status | 10H |
| 13 | Door rotary tumbler switch, status | 13G |
| 14 | Rotary tumbler switch, status | 13G |
| 2 | Circuit 15, status | 10F |
| 3 | Central locking (CL[ZV]), status | 10E |
| 4 | Light sensor, status | 10G |
| 5 | Exterior lights switch, status | 13J |
| 5 | Exterior lights switch, status | 11J |
| 6 | Standing and parking lights, request | 18G |
| 6 | Standing and parking lights, request | 15J |
| 7 | Standing and parking lights, actuation | 21K |
| 7 | Standing and parking lights, actuation | 25K |
| 7 | Standing and parking lights, actuation | 20B |
| 7 | Standing and parking lights, actuation | 18D |
| 7 | Standing and parking lights, actuation | 30D |
| 7 | Standing and parking lights, actuation | 18K |
| 7 | Standing and parking lights, actuation | 27B |
| 8 | License plate lamp, actuation | 24H |
| 8 | License plate lamp, actuation | 18K |
| 9 | Side-marker lamp, actuation | 20D |
| 9 | Side-marker lamp, actuation | 27D |
| A1 | Instrument cluster | 2E |
| B38/1 | Light sensor | 4G |
| B38/2 | Rain/light sensor | 4G |
| CAN B | Interior CAN | 15G |
| CAN B | Interior CAN | 7D |
| CAN B | Interior CAN | 6E |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 15H |
| Code 460 | Additional parts for Canada vehicles | 20C |
| Code 460 | Additional parts for Canada vehicles | 26C |
| Code 494 | USA version | 20D |
| Code 494 | USA version | 26D |
| Code 550 | Trailer hitch | 14J |
| E1 | Left front lamp unit | 25B |
| E19/1 | Left license plate lamp | 23H |
| E19/2 | Right license plate lamp | 24H |
| E1e12 | Left front standing light 2 | 27B |
| E1e3 | Left front standing and parking lamp | 27C |
| E1n7 | Left signal lamp actuation module LED | 30C |
| E2 | Right front lamp unit | 22B |
| E2e12 | Right front standing light 2 | 21B |
| E2e3 | Right front standing and parking lamp | 21C |
| E2n7 | Right signal lamp actuation module LED | 18C |
| E3 | Left rear lamp unit | 22H |
| E3e10 | Inner left stop lamp and taillamp | 20K |
| E3e5 | Left rear fog lamp | 20K |
| E3e9 | Left stop lamp and taillamp and parking lamp | 20K |
| E4 | Right rear lamp unit | 25H |
| E4e10 | Inner right brake light and taillight | 26K |
| E4e5 | Right rear fog lamp | 26K |
| E4e9 | Right stop lamp and taillamp and parking lamp | 26K |
| E5/1 | Left fog lamp | 24E |
| E5/2 | Right fog lamp | 22E |
| E6/1 | Left front side-marker lamp | 27D |
| E6/2 | Right front side-marker lamp | 21D |
| E6/3 | Left rear side-marker lamp | 20K |
| E6/4 | Right rear side-marker lamp | 26K |
| LIN 1 | Instrument panel LIN | 10J |
| LIN 2 | Wiper/inside rearview mirror LIN | 8G |
| M21/1 | Left outside mirror | 3K |
| M21/1e1 | Left outside mirror ambient lamp | 3K |
| M21/2 | Right outside mirror | 3L |
| M21/2e1 | Right outside mirror ambient lamp | 3L |
| N10/1 | Front SAM control unit with fuse and relay module | 11F |
| N10/2 | Rear SAM control unit with fuse and relay module | 19G |
| N28/1 | Trailer recognition control unit | 15K |
| N69/1 | Left front door control unit | 6J |
| N69/2 | Right front door control unit | 6J |
| N73 | Electronic ignition switch control unit | 5A |
| S1 | Exterior lights switch | 10K |
| S1 | Exterior lights switch | 12K |
| U195 | Valid for rain/light sensor | 4G |
| U224 | Valid without rain sensor | 4G |
| U501 | Valid for xenon headlamps | 17B |
| U501 | Valid for xenon headlamps | 30C |
| U501 | Valid for xenon headlamps | 15C |
| U501 | Valid for xenon headlamps | 28C |
| U679 | Valid for version without xenon headlamps | 15B |
| U679 | Valid for version without xenon headlamps | 28B |
| U997 | Not valid for Intelligent Light System | 21E |
| X58 | Trailer socket | 18K |
