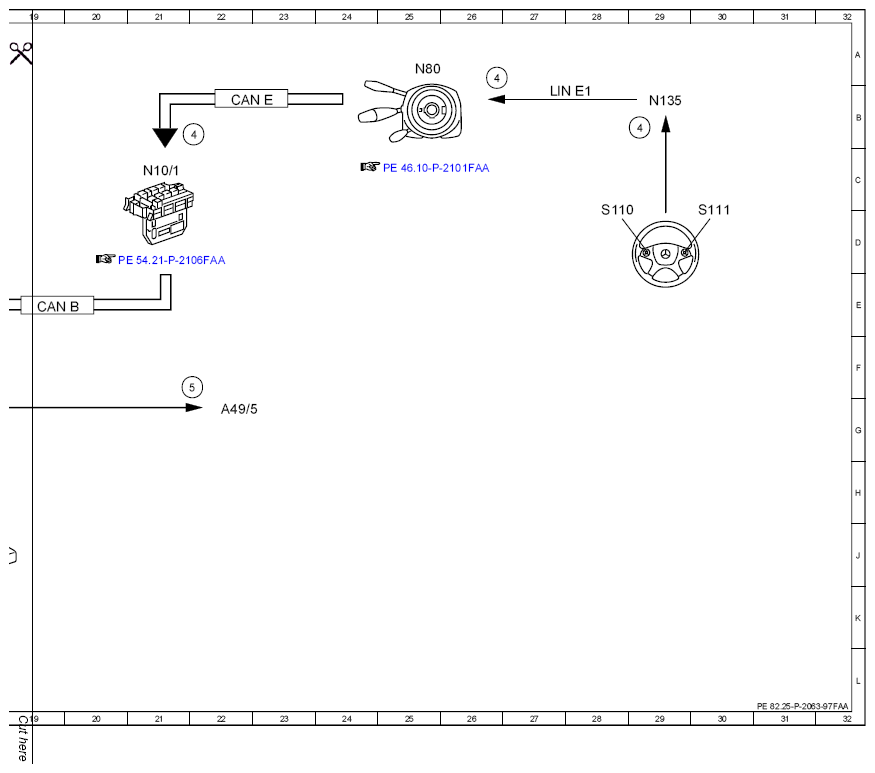

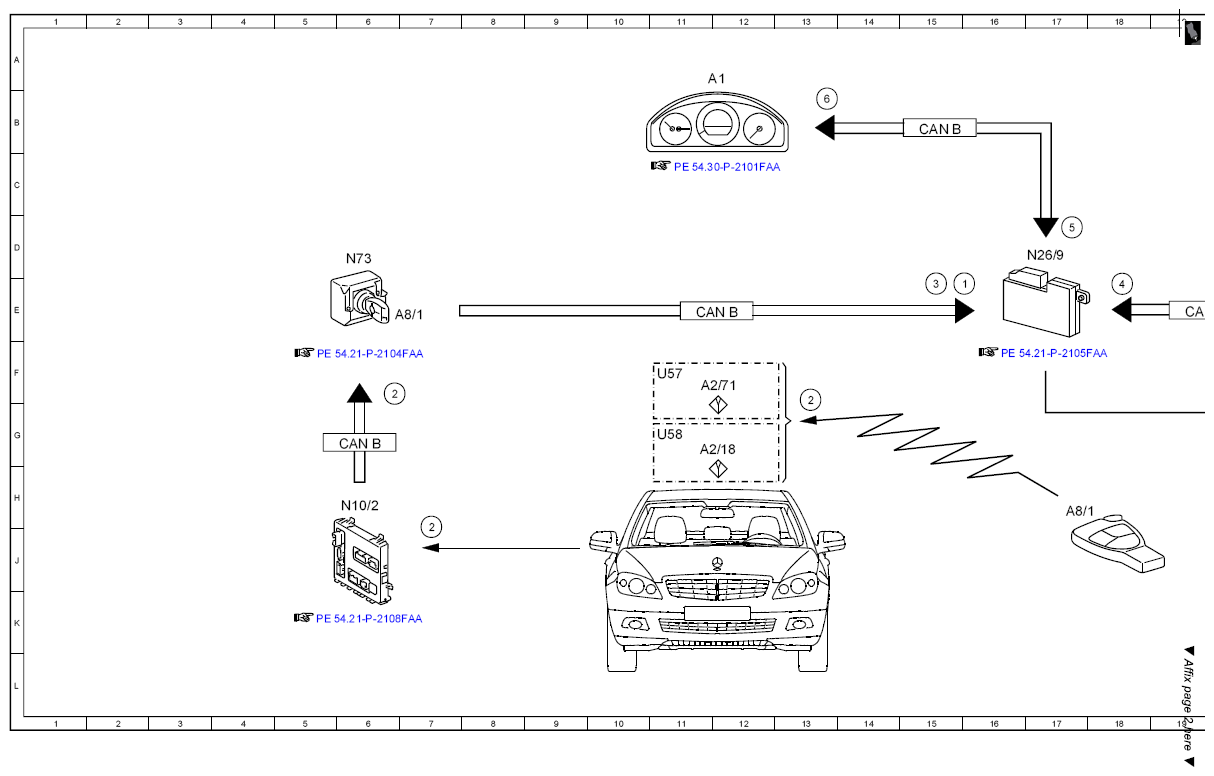

Electrical function schematic for two-way radio integration - PE82.25-P-2063-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Clamp 15, Status | 16E |
| 2 | Central unlocked / locked, request | 13G |
| 2 | Central unlocked / locked, request | 7J |
| 2 | Central unlocked / locked, request | 6F |
| 3 | Central, Status | 15E |
| 4 | Key group Multi function steering wheel, signal | 29B |
| 4 | Key group Multi function steering wheel, signal | 18E |
| 4 | Key group Multi function steering wheel, signal | 22B |
| 4 | Key group Multi function steering wheel, signal | 26A |
| 5 | Radio data, radio on / off signal | 22F |
| 5 | Radio data radio, on / off signal | 17D |
| 6 | Radio data transmission, status | 13B |
| A1 | instrument cluster | 11A |
| A2/18 | Antenna Amplifier FM, AM and ZV | 11G |
| A2/71 | Rear window antenna amplifier 1 | 11F |
| A49/5 | Radio data transmission | 22G |
| A8/1 | transmitter Key | 17H |
| A8/1 | transmitter Key | 7E |
| CAN B | Interior CAN | 11E |
| CAN B | Interior CAN | 15B |
| CAN B | Interior CAN | 6G |
| CAN B | Interior CAN | 19E |
| CAN E | Suspension - CAN | 22B |
| LIN E1 | Steering LIN | 27B |
| N10/1 | SAM control unit with fuse and relay module, front | 21C |
| N10/2 | SAM control unit with fuse and relay module, rear | 6H |
| N135 | steering wheel electronics | 29B |
| N26/9 | Multifunction control unit, Special vehicle | 17D |
| N73 | Electronic ignition lock control unit | 6D |
| N80 | Control unit casing pipe module | 25A |
| S110 | Key Group, multifunction steering wheel, to the left | 28D |
| S111 | Key Group, multifunction steering wheel, to the right | 30D |
| U57 | Valid for Type 204.2 | 11F |
| U58 | Valid for Type 204.0 | 11G |
