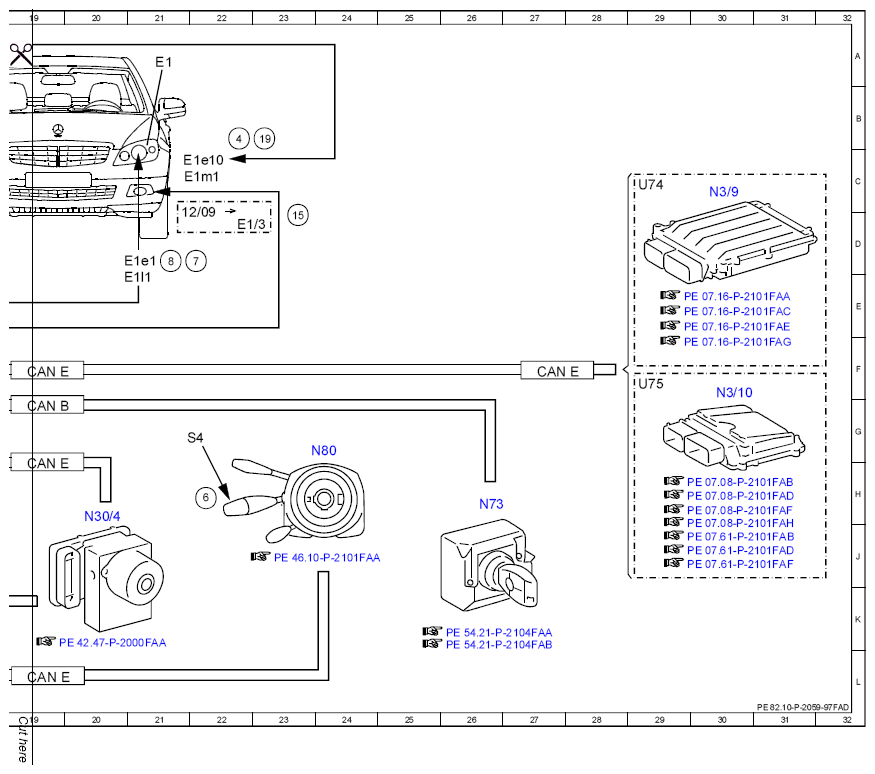

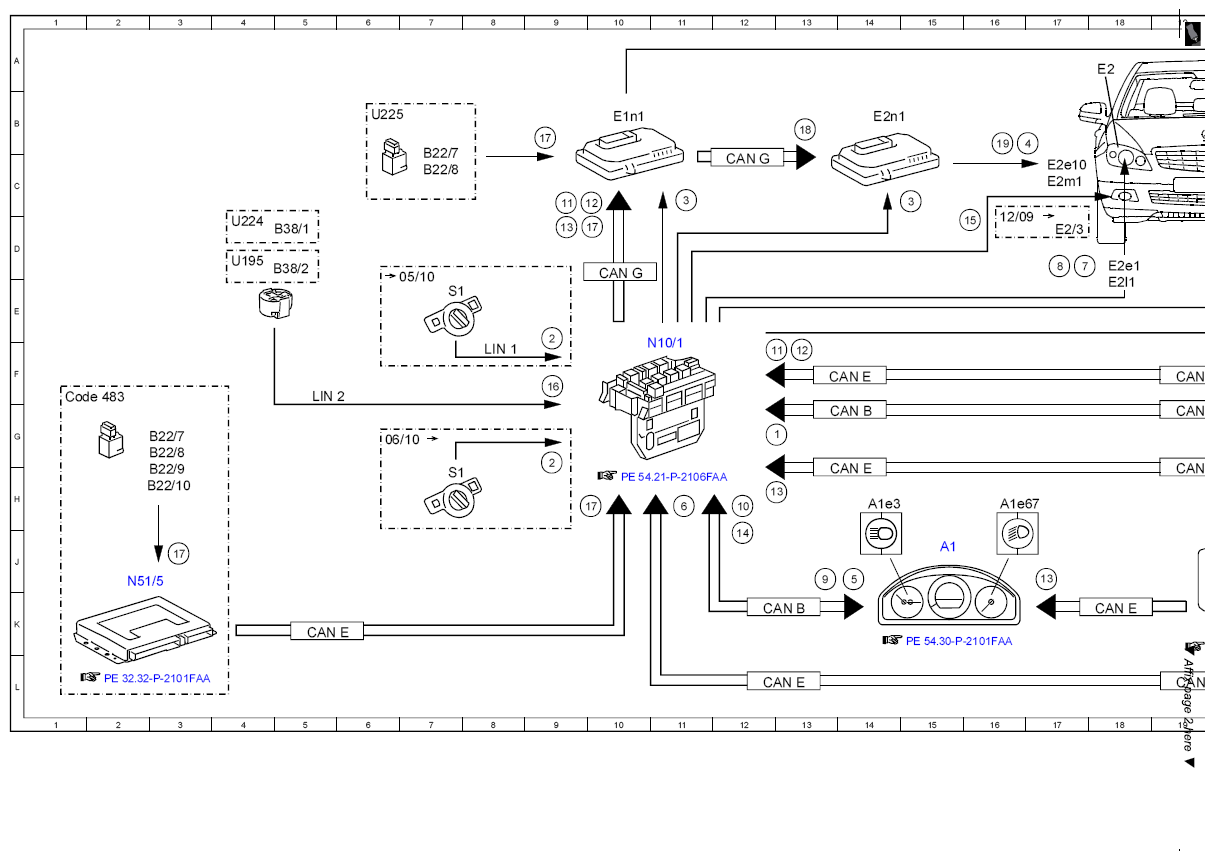

Electrical function schematic for driving lights actuation - PE82.10-P-2059-97FAD
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12G |
| 10 | Daytime running lights, request | 12H |
| 11 | Engine running, signal | 12F |
| 11 | Engine running, signal | 9C |
| 12 | Drivetrain operational, signal | 13F |
| 12 | Drivetrain operational, signal | 10C |
| 13 | Wheel speed, signal | 12H |
| 13 | Wheel speed, signal | 17J |
| 13 | Wheel speed, signal | 9D |
| 14 | Vehicle speed, signal | 12J |
| 15 | Daytime running lights, actuation | 16D |
| 15 | Daytime running lights, actuation | 23D |
| 16 | Light sensor, status | 9F |
| 17 | Level sensor, status | 3J |
| 17 | Level sensor, status | 10H |
| 17 | Level sensor, status | 9B |
| 17 | Level sensor, status | 10D |
| 18 | Synchronization, signal | 13B |
| 19 | Headlamp range adjustment actuator motor, actuation | 16B |
| 19 | Headlamp range adjustment actuator motor, actuation | 23B |
| 2 | Exterior lights switch, status | 9F |
| 2 | Exterior lights switch, status | 9G |
| 3 | Low beams, request | 11C |
| 3 | Low beams, request | 15C |
| 4 | Xenon bulb with integrated ignition module, actuation | 17B |
| 4 | Xenon bulb with integrated ignition module, actuation | 22B |
| 5 | Low beams indicator lamp, actuation | 14J |
| 6 | Combination switch, status | 22H |
| 6 | Combination switch, status | 11H |
| 7 | High beam solenoid, actuation | 17D |
| 7 | High beam solenoid, actuation | 22D |
| 8 | High beams, actuation | 17D |
| 8 | High beams, actuation | 21D |
| 9 | High beam indicator lamp, actuation | 13J |
| A1 | Instrument cluster | 15J |
| A1e3 | High beam indicator lamp | 14H |
| A1e67 | Low beam indicator lamp | 16H |
| B22/10 | Right rear level sensor | 3H |
| B22/7 | Left rear level sensor | 3G |
| B22/7 | Left rear level sensor | 7C |
| B22/8 | Left front level sensor | 3G |
| B22/8 | Left front level sensor | 7C |
| B22/9 | Right front level sensor | 3H |
| B38/1 | Light sensor | 5D |
| B38/2 | Rain/light sensor | 5D |
| CAN B | Interior CAN | 14G |
| CAN B | Interior CAN | 13K |
| CAN B | Interior CAN | 19G |
| CAN E | Chassis CAN | 19L |
| CAN E | Chassis CAN | 14F |
| CAN E | Chassis CAN | 5K |
| CAN E | Chassis CAN | 13L |
| CAN E | Chassis CAN | 14H |
| CAN E | Chassis CAN | 27F |
| CAN E | Chassis CAN | 19F |
| CAN E | Chassis CAN | 19H |
| CAN E | Chassis CAN | 18K |
| CAN G | Front end CAN | 10D |
| CAN G | Front end CAN | 12C |
| Code 483 | Vehicle dynamics package | 1F |
| E1 | Left front lamp unit | 21A |
| E1/3 | Left daytime running lamps headlamp | 22D |
| E1e1 | Left high beam | 20D |
| E1e10 | Left xenon bulb with integrated ignition module | 21C |
| E1l1 | Left high beam solenoid | 20E |
| E1m1 | Left headlamp range adjustment actuator motor | 21C |
| E1n1 | Left xenon lamp control unit | 10B |
| E2 | Right front lamp unit | 18A |
| E2/3 | Right daytime running lamps headlamp | 17D |
| E2e1 | Right high beam | 18D |
| E2e10 | Right xenon bulb with integrated ignition module | 17C |
| E2l1 | Right high beam solenoid | 18E |
| E2m1 | Right headlamp range adjustment actuator motor | 17C |
| E2n1 | Right xenon light control unit | 14B |
| LIN 1 | Instrument panel LIN | 8F |
| LIN 2 | Wiper/inside rearview mirror LIN | 5F |
| N10/1 | Front SAM control unit with fuse and relay module | 11F |
| N3/10 | ME-SFI [ME] control unit | 30F |
| N3/9 | CDI control unit | 30C |
| N30/4 | Electronic Stability Program control unit | 20H |
| N51/5 | Adaptive damping system control unit | 2J |
| N73 | Electronic ignition switch control unit | 26H |
| N80 | Steering column module control unit | 23G |
| S1 | Exterior lights switch | 7E |
| S1 | Exterior lights switch | 7H |
| S4 | Combination switch | 21G |
| U195 | Valid for rain/light sensor | 4D |
| U224 | Valid without rain sensor | 4D |
| U225 | Valid without code 483 Vehicle dynamics package | 6B |
| U74 | Valid for diesel engines | 29C |
| U75 | Valid for gasoline engines | 29F |
