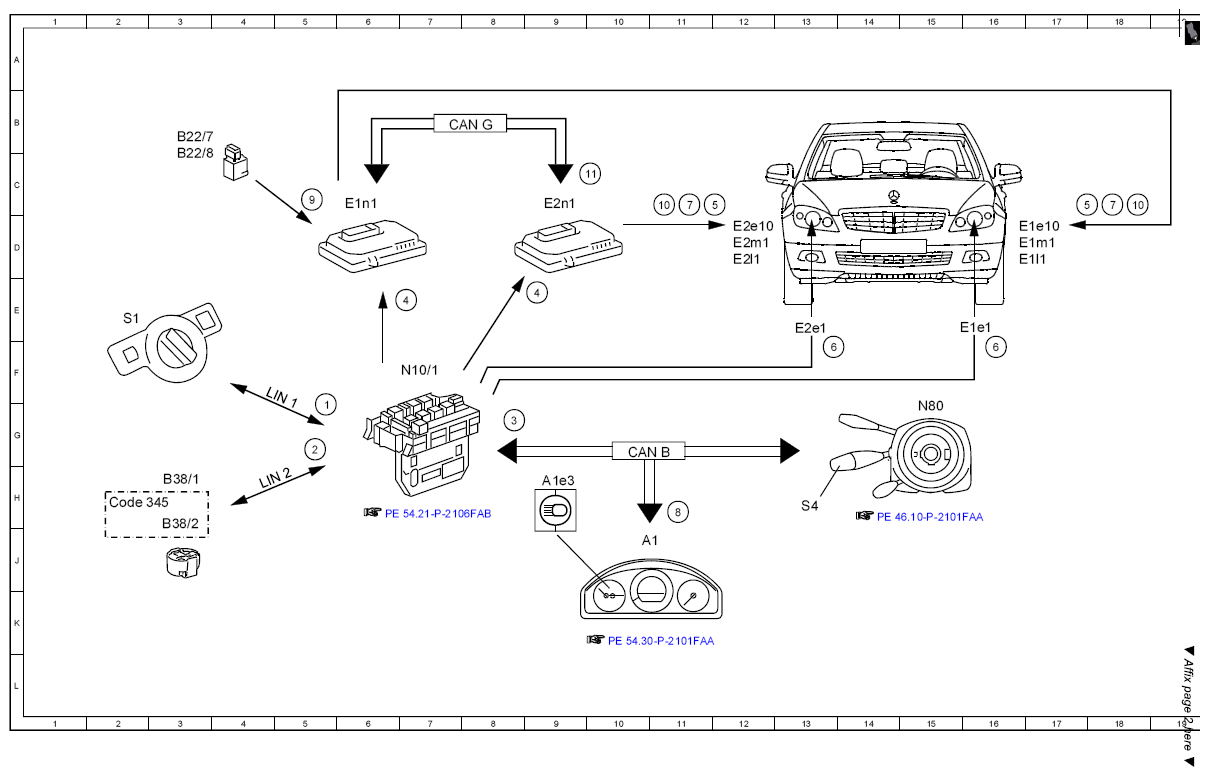

Electrical function schematic for driving light actuation - PE82.10-P-2059-97FAB
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 5G |
| 10 | Headlamp range adjustment actuator motor, actuation | 11C |
| 10 | Headlamp range adjustment actuator motor, actuation | 18C |
| 11 | Synchronization, signal | 9C |
| 2 | Ambient brightness, signal | 5G |
| 3 | Combination switch, status | 8G |
| 4 | Xenon bulb with integrated ignition module, request | 7E |
| 4 | Xenon bulb with integrated ignition module, request | 9E |
| 5 | Xenon bulb with integrated ignition module, actuation | 12C |
| 5 | Xenon bulb with integrated ignition module, actuation | 17C |
| 6 | High beams, actuation | 13F |
| 6 | High beams, actuation | 16F |
| 7 | High beam solenoid, actuation | 11C |
| 7 | High beam solenoid, actuation | 18C |
| 8 | High beam indicator lamp, actuation | 11H |
| 9 | Level sensor, status | 5C |
| A1 | Instrument cluster | 10J |
| A1e3 | High beam indicator lamp | 9H |
| B22/7 | Left rear level sensor | 3B |
| B22/8 | Left front level sensor | 3C |
| B38/1 | Light sensor | 3H |
| B38/2 | Rain/light sensor | 3H |
| CAN B | Interior CAN | |
| CAN G | Front end CAN | |
| Code 345 | Rain sensor | |
| E1e1 | Left high beam | 15E |
| E1e10 | Left xenon bulb with integrated ignition module | 16D |
| E1l1 | Left high beam solenoid | 16D |
| E1m1 | Left headlamp range adjustment actuator motor | 16D |
| E1n1 | Left xenon lamp control unit | 6C |
| E2e1 | Right high beam | 13E |
| E2e10 | Right xenon bulb with integrated ignition module | 12D |
| E2l1 | Right high beam solenoid | 12D |
| E2m1 | Right headlamp range adjustment actuator motor | 12D |
| E2n1 | Right xenon light control unit | 9C |
| LIN 1 | Instrument panel LIN | |
| LIN 2 | Wiper/inside rearview mirror LIN | |
| N10/1 | Front SAM control unit with fuse and relay module | 7F |
| N80 | Steering column module control unit | 15G |
| S1 | Exterior lights switch | 2E |
| S4 | Combination switch | 13H |
