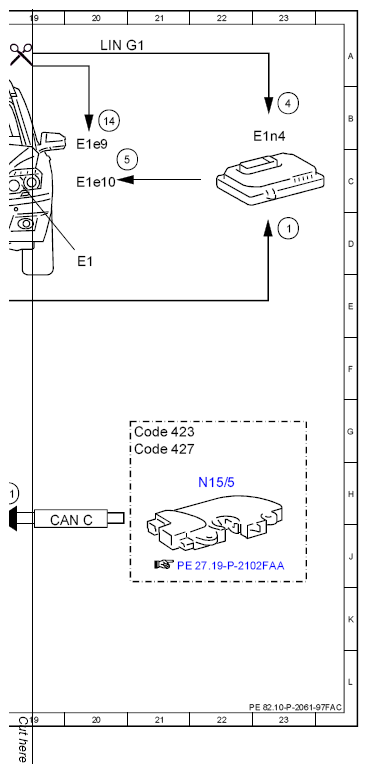

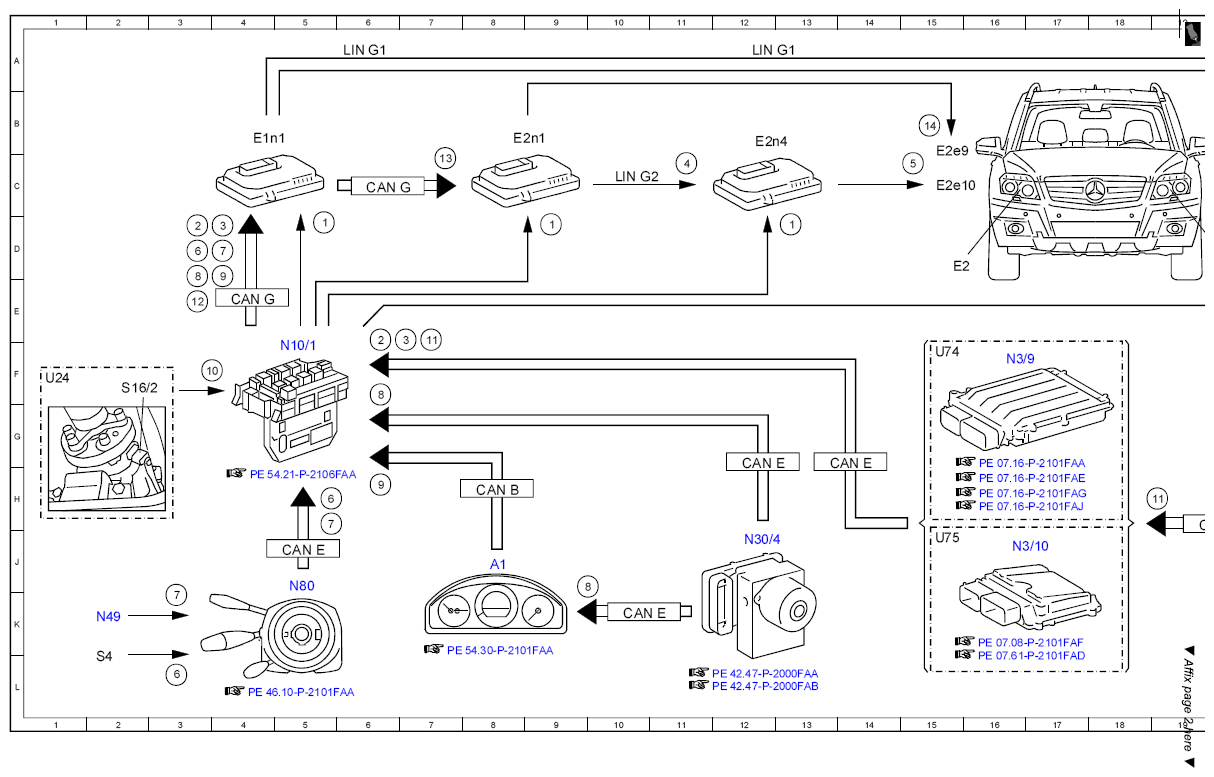

Electrical function schematic for cornering illumination - PE82.10-P-2061-97FAC
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Low beams, request | 13D |
| 1 | Low beams, request | 9D |
| 1 | Low beams, request | 5D |
| 1 | Low beams, request | 23D |
| 10 | Backup lamp switch, status | 3F |
| 11 | Selector lever position, status | 19H |
| 11 | Selector lever position, status | 7F |
| 12 | Reverse gear, status | 3E |
| 13 | Synchronization, signal | 7C |
| 14 | Cornering illumination, actuation | 15B |
| 14 | Cornering illumination, actuation | 20B |
| 2 | Engine running, signal | 6F |
| 2 | Engine running, signal | 3D |
| 3 | Drivetrain operational, signal | 7F |
| 3 | Drivetrain operational, signal | 4D |
| 4 | Enable, signal | 11C |
| 4 | Enable, signal | 23B |
| 5 | Xenon bulb with integrated ignition module, actuation | 15C |
| 5 | Xenon bulb with integrated ignition module, actuation | 20C |
| 6 | Combination switch, status | 3L |
| 6 | Combination switch, status | 5H |
| 6 | Combination switch, status | 3D |
| 7 | Steering angle, signal | 3K |
| 7 | Steering angle, signal | 5H |
| 7 | Steering angle, signal | 4D |
| 8 | Wheel speed, signal | 6F |
| 8 | Wheel speed, signal | 3E |
| 8 | Wheel speed, signal | 9J |
| 9 | Vehicle speed, signal | 4E |
| 9 | Vehicle speed, signal | 6H |
| A1 | Instrument cluster | 8J |
| CAN B | Interior CAN | 8H |
| CAN C | Drive train CAN | 19H |
| CAN E | Chassis CAN | 5J |
| CAN E | Chassis CAN | 12H |
| CAN E | Chassis CAN | 14H |
| CAN E | Chassis CAN | 10K |
| CAN G | Front end CAN | 4E |
| CAN G | Front end CAN | 6C |
| Code 423 | 5-speed automatic transmission | 21G |
| Code 427 | 7-speed automatic transmission | 21G |
| E1 | Left front lamp unit | 20D |
| E1e10 | Left xenon bulb with integrated ignition module | 20C |
| E1e9 | Left cornering illumination | 20B |
| E1n1 | Left xenon lamp control unit | 4B |
| E1n4 | Left xenon light power supply module | 23B |
| E2 | Right front lamp unit | 15D |
| E2e10 | Right xenon bulb with integrated ignition module | 15C |
| E2e9 | Right cornering illumination | 15C |
| E2n1 | Right xenon light control unit | 8B |
| E2n4 | Right xenon light power supply module | 12B |
| LIN G1 | Left headlamp LIN | 12A |
| LIN G1 | Left headlamp LIN | 6A |
| LIN G1 | Left headlamp LIN | 20A |
| LIN G2 | Right headlamp LIN | 10C |
| N10/1 | Front SAM control unit with fuse and relay module | 5F |
| N15/5 | Electronic selector lever module control unit | 22H |
| N3/10 | ME-SFI [ME] control unit | 16J |
| N3/9 | CDI control unit | 16F |
| N30/4 | Electronic Stability Program control unit | 12J |
| N49 | Steering angle sensor | 2K |
| N80 | Steering column module control unit | 5J |
| S16/2 | Backup lamp switch | 2F |
| S4 | Combination switch | 2L |
| U24 | Valid for manual transmission | 1F |
| U74 | Valid for diesel engines | 15F |
| U75 | Valid for gasoline engines | 15J |
