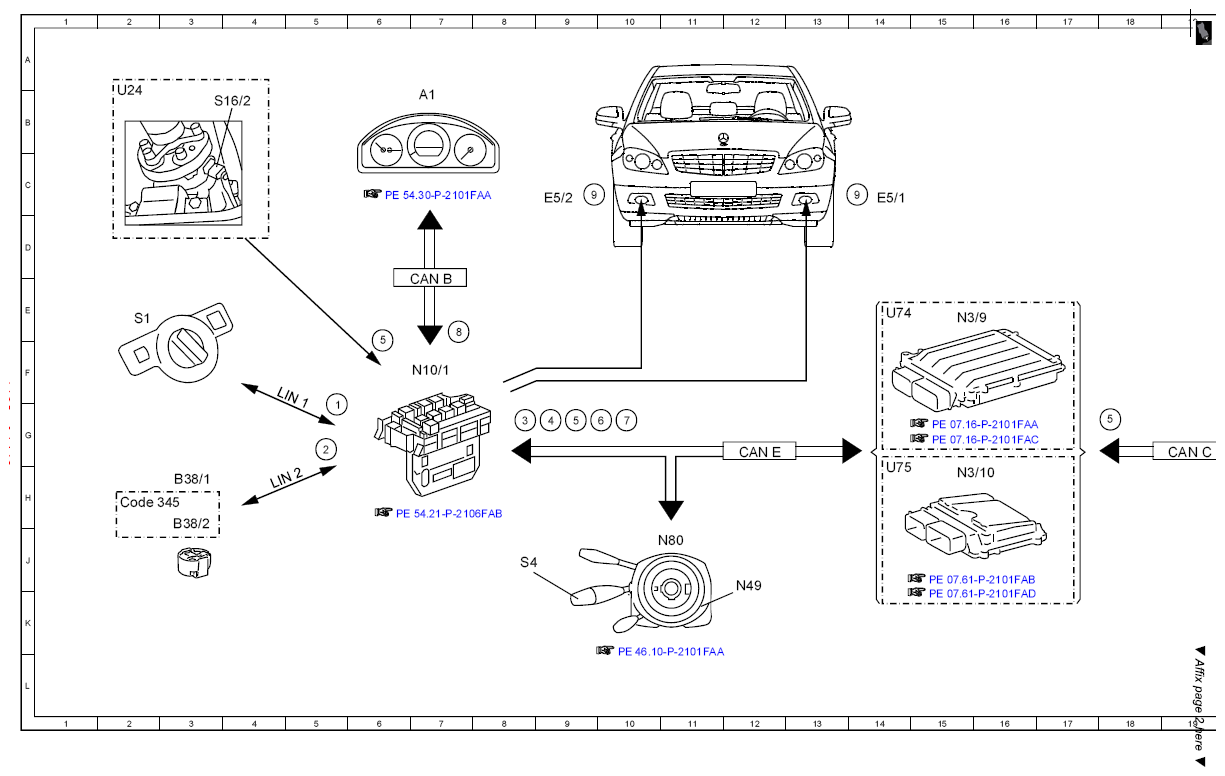

Electrical function schematic for cornering illumination - PE82.10-P-2061-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 5G |
| 2 | Ambient brightness, signal | 5G |
| 3 | Combination switch, status | 8G |
| 4 | Steering angle, signal | 9G |
| 5 | Reverse gear, status | 9G |
| 5 | Reverse gear, status | |
| 5 | Reverse gear, status | |
| 6 | Engine speed, signal | 10G |
| 7 | Circuit 61, status | 10G |
| 8 | Vehicle speed, signal | 7E |
| 9 | Front fog lamps, actuation | 9C |
| 9 | Front fog lamps, actuation | 14C |
| A1 | Instrument cluster | 7B |
| B38/1 | Light sensor | 3H |
| B38/2 | Rain/light sensor | 3H |
| CAN B | Interior CAN | |
| CAN C | Drive train CAN | |
| CAN E | Chassis CAN | |
| Code 345 | Rain sensor | |
| Code 423 | 5-speed automatic transmission | |
| Code 427 | 7-speed automatic transmission | |
| E5/1 | Left fog lamp | 14C |
| E5/2 | Right fog lamp | 9C |
| LIN 1 | Instrument panel LIN | |
| LIN 2 | Wiper/inside rearview mirror LIN | |
| N10/1 | Front SAM control unit with fuse and relay module | 7F |
| N15/5 | Electronic selector lever module control unit | 22G |
| N3/10 | ME-SFI [ME] control unit | 15H |
| N3/9 | CDI control unit | 15E |
| N49 | Steering angle sensor | 12J |
| N80 | Steering column module control unit | 10J |
| S1 | Exterior lights switch | 2E |
| S16/2 | Backup lamp switch | 4B |
| S4 | Combination switch | 8J |
| U24 | Valid for manual transmission | 2B |
| U74 | Valid for diesel engines | 14E |
| U75 | Valid for gasoline engines | 14H |
