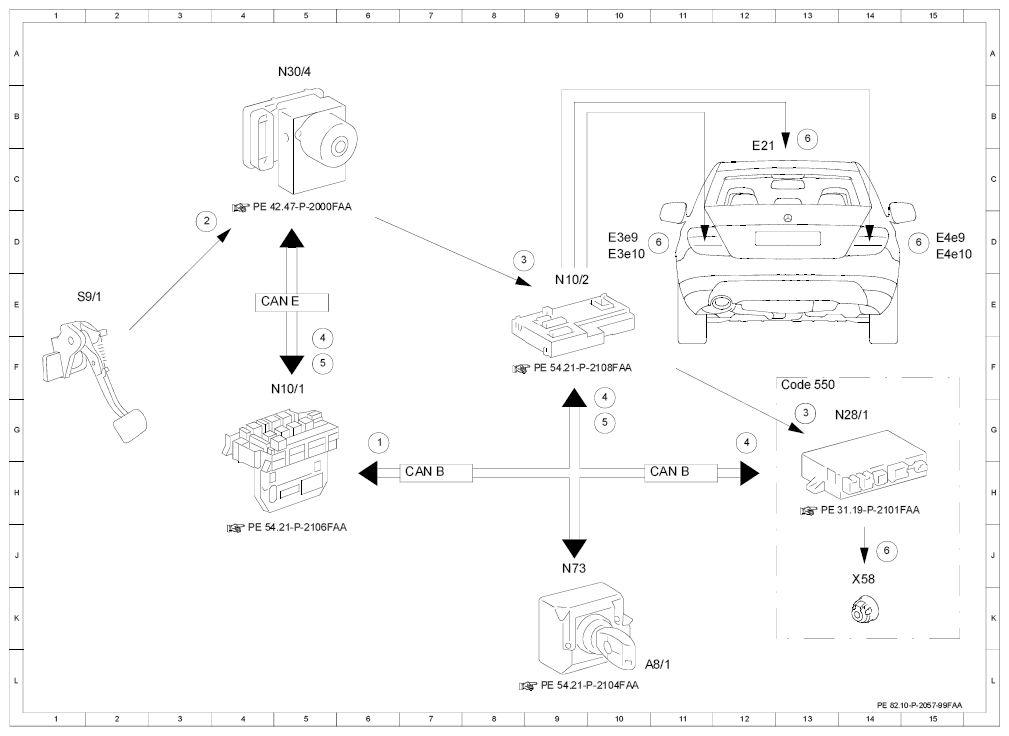

Electrical function schematic for brake light actuation - PE82.10-P-2057-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6 G |
| 2 | Brake light switch, status | 3 D |
| 3 | Circuit 54, status | 8 D |
| 3 | Circuit 54, status | 13 G |
| 4 | Brake lights, request | 5 F |
| 4 | Brake lights, request | 10 G |
| 4 | Brake lights, request | 12 G |
| 5 | Flashing brake lights, request | 5 F |
| 5 | Flashing brake lights, request | 10 G |
| 6 | Brake lights, actuation | 11 D |
| 6 | Brake lights, actuation | 13 C |
| 6 | Brake lights, actuation | 14 J |
| 6 | Brake lights, actuation | 15 D |
| A8/1 | Transmitter key | 10 L |
| CAN B | Interior CAN | 7 H |
| CAN B | Interior CAN | 10 H |
| CAN E | Chassis CAN | 4 E |
| Code 550 | Trailer hitch | 13 F |
| E21 | Center stop lamp | 12 C |
| E3e10 | Inner left stop lamp and taillamp | 10 D |
| E3e9 | Left stop lamp and taillamp and parking lamp | 10 D |
| E4e10 | Inner right brake light and taillight | 15 D |
| E4e9 | Right stop lamp and taillamp and parking lamp | 15 D |
| N10/1 | Front SAM control unit with fuse and relay module | 4 G |
| N10/2 | Rear SAM control unit with fuse and relay module | 9 E |
| N28/1 | Trailer recognition control unit | 13 G |
| N30/4 | Electronic Stability Program control unit | 5 A |
| N73 | Electronic ignition switch control unit | 9 J |
| S9/1 | Stop lamp switch | 1 E |
| X58 | Trailer socket | 14 K |
