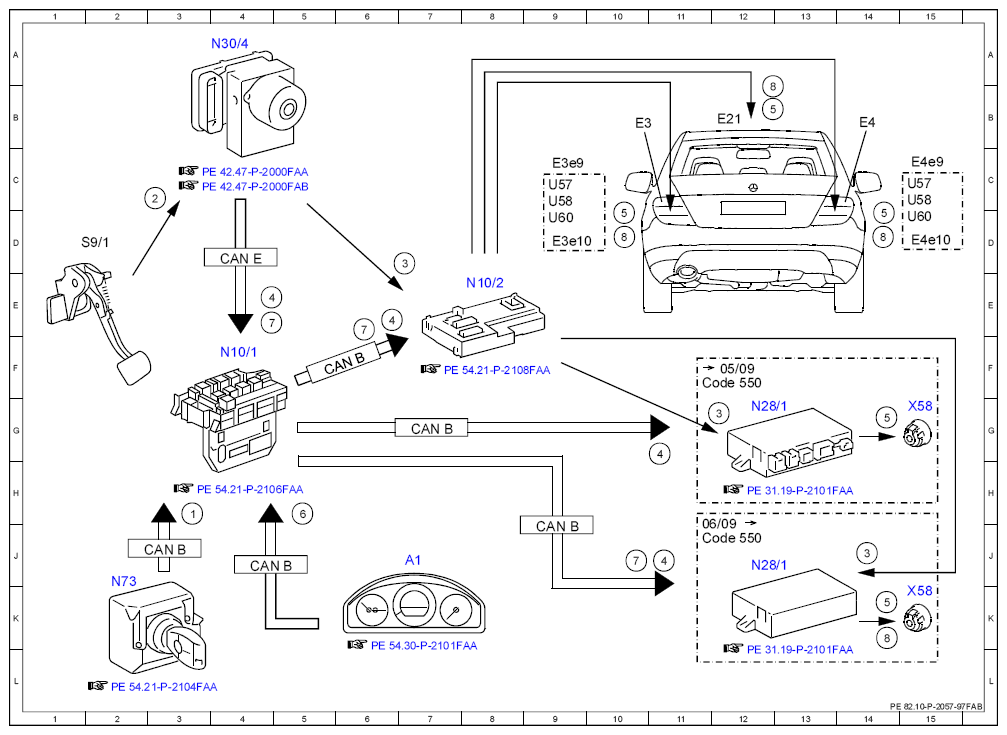

Electrical function schematic for brake light actuation - PE82.10-P-2057-97FAB
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 3H |
| 2 | Brake light switch, status | 3C |
| 3 | Circuit 54, status | 7D |
| 3 | Circuit 54, status | 12G |
| 3 | Circuit 54, status | 14J |
| 4 | Brake lights, request | 6E |
| 4 | Brake lights, request | 4E |
| 4 | Brake lights, request | 11J |
| 4 | Brake lights, request | 11G |
| 5 | Brake lights, actuation | 14G |
| 5 | Brake lights, actuation | 10D |
| 5 | Brake lights, actuation | 12B |
| 5 | Brake lights, actuation | 14D |
| 5 | Brake lights, actuation | 14K |
| 6 | Vehicle speed, signal | 5H |
| 7 | Flashing brake lights, request | 6E |
| 7 | Flashing brake lights, request | 4E |
| 7 | Flashing brake lights, request | 10J |
| 8 | Flashing brake lights, actuation | 14K |
| 8 | Flashing brake lights, actuation | 12B |
| 8 | Flashing brake lights, actuation | 10D |
| 8 | Flashing brake lights, actuation | 14D |
| A1 | Instrument cluster | 7J |
| CAN B | Interior CAN | 9J |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 3J |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 4J |
| CAN E | Chassis CAN | 4D |
| Code 550 | Trailer hitch | 11F |
| Code 550 | Trailer hitch | 11J |
| E21 | Center stop lamp | 12B |
| E3 | Left rear lamp unit | 10B |
| E3e10 | Inner left stop lamp and taillamp | 9D |
| E3e9 | Left stop lamp and taillamp and parking lamp | 9C |
| E4 | Right rear lamp unit | 14B |
| E4e10 | Inner right brake light and taillight | 15D |
| E4e9 | Right stop lamp and taillamp and parking lamp | 15C |
| N10/1 | Front SAM control unit with fuse and relay module | 4F |
| N10/2 | Rear SAM control unit with fuse and relay module | 8E |
| N28/1 | Trailer recognition control unit | 12G |
| N28/1 | Trailer recognition control unit | 12J |
| N30/4 | Electronic Stability Program control unit | 4A |
| N73 | Electronic ignition switch control unit | 2J |
| S9/1 | Stop lamp switch | 1D |
| U57 | Valid for model 204.2 | 9C |
| U57 | Valid for model 204.2 | 15C |
| U58 | Valid for model 204.0 | 9C |
| U58 | Valid for model 204.0 | 15C |
| U60 | Valid for model 204.3 | 9D |
| U60 | Valid for model 204.3 | 15D |
| X58 | Trailer socket | 15G |
| X58 | Trailer socket | 15K |
