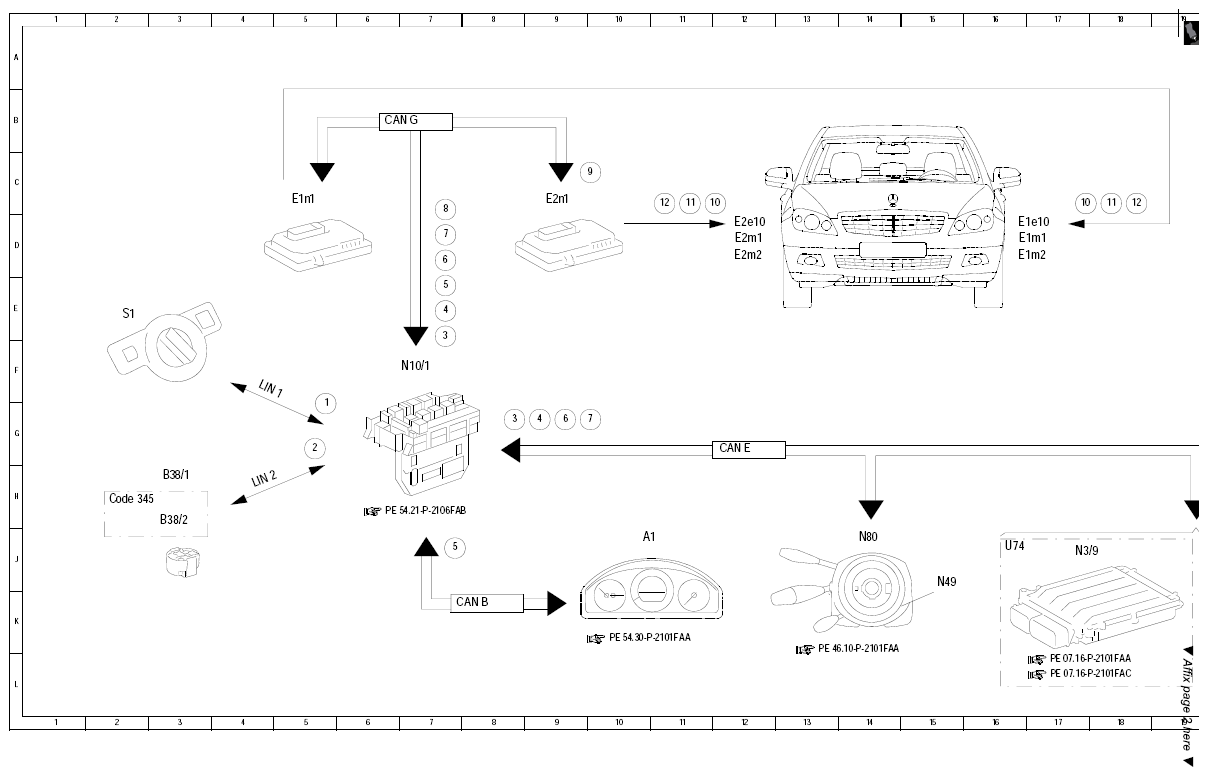

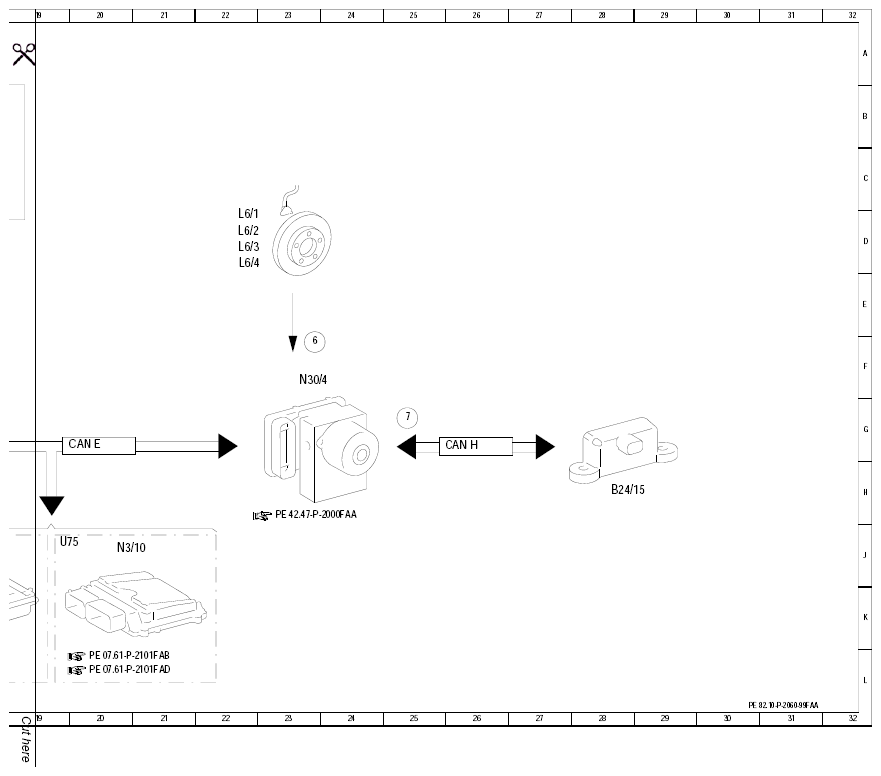

Electrical function schematic for Intelligent Light System - PE82.10-P-2060-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 5 G |
| 10 | Xenon bulb with integrated ignition module, actuation | 11 C |
| 10 | Xenon bulb with integrated ignition module, actuation | 17 C |
| 11 | Headlamp range adjustment actuator motor, actuation | 11 C |
| 11 | Headlamp range adjustment actuator motor, actuation | 18 C |
| 12 | Active curve illumination actuator motor, actuation | 11 C |
| 12 | Active curve illumination actuator motor, actuation | 18 C |
| 2 | Ambient brightness, signal | 5 G |
| 3 | Steering angle, signal | 7 F |
| 3 | Steering angle, signal | 8 G |
| 4 | Circuit 61, status | 7 E |
| 4 | Circuit 61, status | 9 G |
| 5 | Intelligent Light System, status | 7 E |
| 5 | Intelligent Light System, status | 7 J |
| 6 | Wheel speed, signal | 7 D |
| 6 | Wheel speed, signal | 9 G |
| 6 | Wheel speed, signal | 23 F |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 7 D |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 9 G |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 25 G |
| 8 | Low beams, status | 7 D |
| 9 | Synchronization, signal | 9 C |
| A1 | Instrument cluster | 10 J |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 28 H |
| B38/1 | Light sensor | 3 H |
| B38/2 | Rain/light sensor | 3 J |
| CAN B | Interior CAN | 7 K |
| CAN E | Chassis CAN | 12 G |
| CAN E | Chassis CAN | 19 G |
| CAN G | Front end CAN | 6 B |
| CAN H | Vehicle dynamics CAN | 25 G |
| Code 345 | Rain sensor | 2 H |
| E1e10 | Left xenon bulb with integrated ignition module | 16 D |
| E1m1 | Left headlamp range adjustment actuator motor | 16 D |
| E1m2 | Left active curve illumination actuator motor | 16 D |
| E1n1 | Left xenon lamp control unit | 5 C |
| E2e10 | Right xenon bulb with integrated ignition module | 12 D |
| E2m1 | Right headlamp range adjustment actuator motor | 12 D |
| E2m2 | Right active curve illumination actuator motor | 12 D |
| E2n1 | Right xenon light control unit | 9 C |
| L6/1 | Left front axle RPM sensor | 22 D |
| L6/2 | Right front axle RPM sensor | 22 D |
| L6/3 | Left rear axle RPM sensor | 22 D |
| L6/4 | Right rear axle RPM sensor | 22 E |
| LIN 1 | Instrument panel LIN | 4 F |
| LIN 2 | Wiper/inside rearview mirror LIN | 4 H |
| N10/1 | Front SAM control unit with fuse and relay module | 7 F |
| N3/10 | ME-SFI [ME] control unit | 20 J |
| N3/9 | CDI control unit | 17 J |
| N30/4 | Electronic Stability Program control unit | 23 F |
| N49 | Steering angle sensor | 15 K |
| N80 | Steering column module control unit | 14 J |
| S1 | Exterior lights switch | 2 E |
| U74 | Valid for diesel engines | 16 J |
| U75 | Valid for gasoline engines | 19 J |
