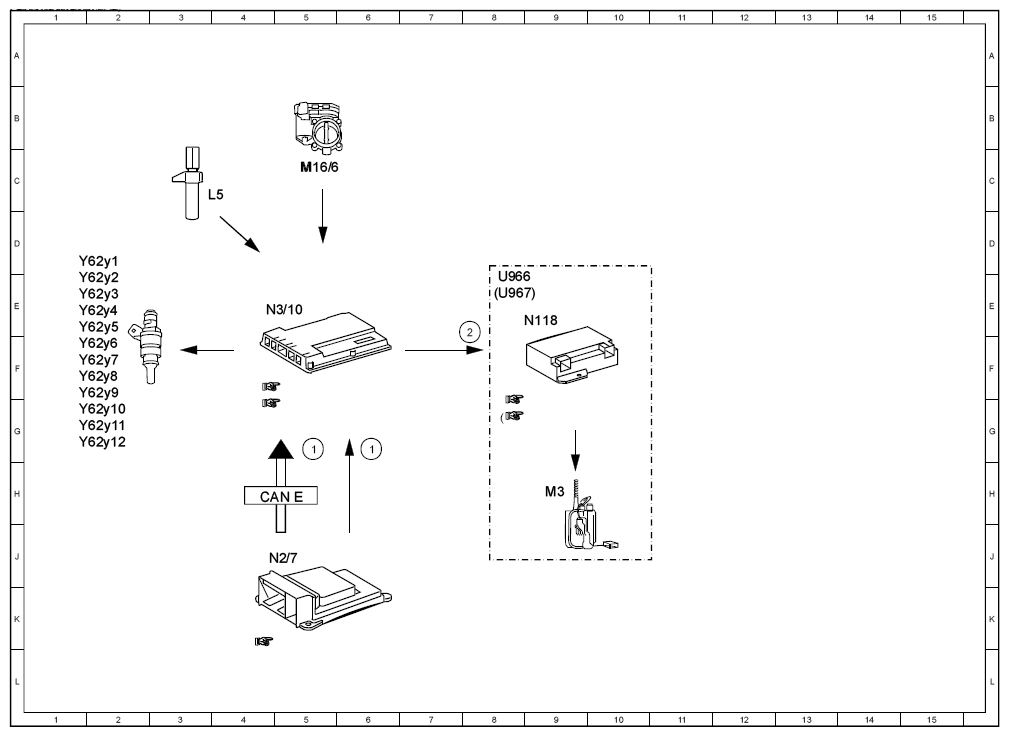

| 1 |
Crash, signal |
5G |
| 1 |
Crash, signal |
6G |
| 2 |
Fuel pump, request OFF |
8E |
| CAN E |
Chassis CAN |
4H |
| L5 |
Crankshaft position sensor |
4C |
| M16/6 |
Throttle valve actuator |
5C |
| M3 |
Fuel pump (FP) |
9H |
| N118 |
Fuel pump control unit |
9E |
| N2/7 |
Restraint systems control unit |
5J |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| U966 |
Valid for engine 275.953 |
8E |
| U967 |
Valid for engine 275.982 |
8E |
| Y62y1 |
Cylinder 1 fuel injection valve |
1D |
| Y62y10 |
Cylinder 10 fuel injection valve |
1G |
| Y62y11 |
Cylinder 11 fuel injection valve |
1G |
| Y62y12 |
Cylinder 12 fuel injection valve |
1G |
| Y62y2 |
Cylinder 2 fuel injection valve |
1E |
| Y62y3 |
Cylinder 3 fuel injection valve |
1E |
| Y62y4 |
Cylinder 4 fuel injection valve |
1E |
| Y62y5 |
Cylinder 5 fuel injection valve |
1E |
| Y62y6 |
Cylinder 6 fuel injection valve |
1F |
| Y62y7 |
Cylinder 7 fuel injection valve |
1F |
| Y62y8 |
Cylinder 8 fuel injection valve |
1F |
| Y62y9 |
Cylinder 9 fuel injection valve |
1F |
