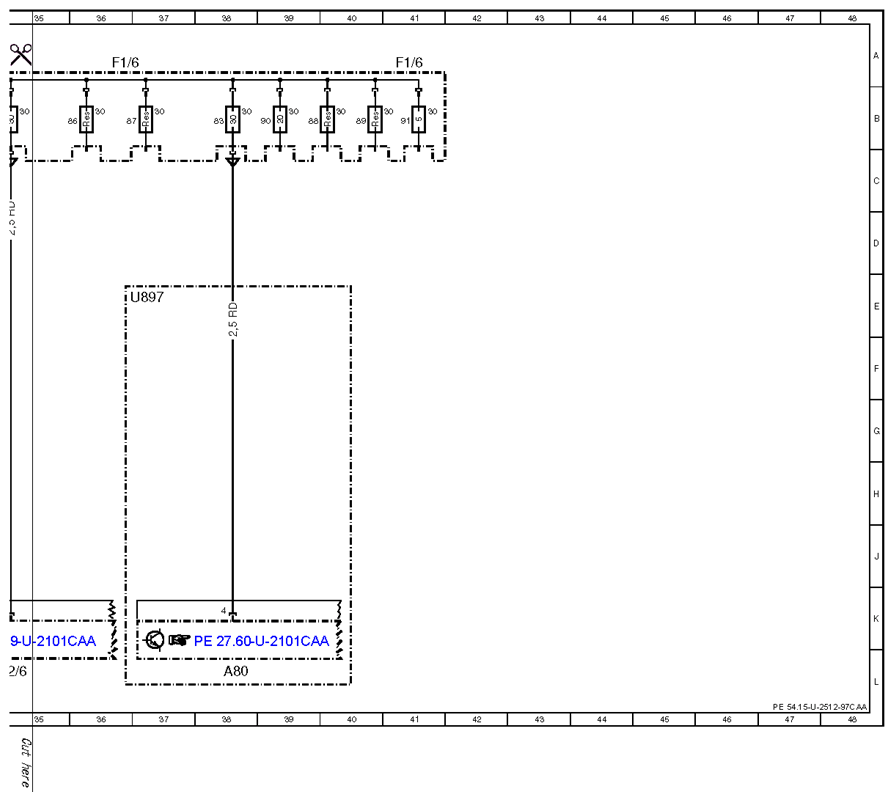

| A80 |
Intelligent servo module for DIRECT SELECT |
38L |
| F1/6 |
Right instrument panel fuse box |
4A |
| F1/6 |
Right instrument panel fuse box |
12A |
| F1/6 |
Right instrument panel fuse box |
20A |
| F1/6 |
Right instrument panel fuse box |
29A |
| F1/6 |
Right instrument panel fuse box |
36A |
| F1/6 |
Right instrument panel fuse box |
41A |
| F1/6f70 |
Fuse 70 |
6B |
| F1/6f71 |
Fuse 71 |
10B |
| F1/6f72 |
Fuse 72 |
13B |
| F1/6f73 |
Fuse 73 |
14B |
| F1/6f74 |
Fuse 74 |
18B |
| F1/6f75 |
Fuse 75 |
21B |
| F1/6f76 |
Fuse 76 |
22B |
| F1/6f77 |
Fuse 77 |
23B |
| F1/6f78 |
Fuse 78 |
28B |
| F1/6f79 |
Fuse 79 |
25B |
| F1/6f80 |
Fuse 80 |
30B |
| F1/6f81 |
Fuse 81 |
33B |
| F1/6f82 |
Fuse 82 |
34B |
| F1/6f83 |
Fuse 83 |
38B |
| F1/6f84 |
Fuse 84 |
24B |
| F1/6f85 |
Fuse 85 |
32B |
| F1/6f86 |
Fuse 86 |
36B |
| F1/6f87 |
Fuse 87 |
36B |
| F1/6f88 |
Fuse 88 |
39B |
| F1/6f89 |
Fuse 89 |
40B |
| F1/6f90 |
Fuse 90 |
39B |
| F1/6f91 |
Fuse 91 |
41B |
| F32/4 |
Interior prefuse box |
2L |

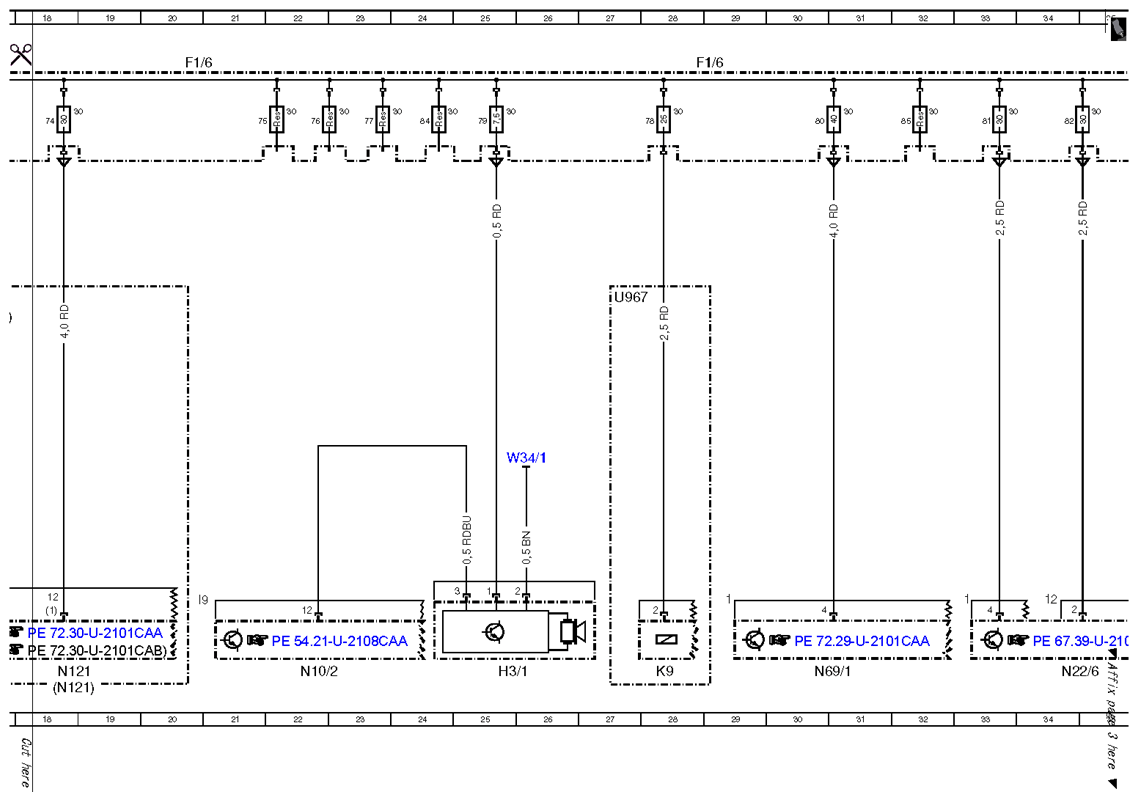

| H3/1 |
Alarm signal siren |
25L |
| K9 |
Additional fan relay |
28L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
22L |
| N121 |
TLC [HDS] control unit |
18L |
| N121 |
TLC [HDS] control unit |
18L |
| N123/4 |
Emergency call system control unit |
14L |
| N22/6 |
Rear control unit |
34L |
| N69/1 |
Left door control unit |
30L |
| N69/2 |
Right door control unit |
6L |
| N69/5 |
KEYLESS-GO control unit |
10L |

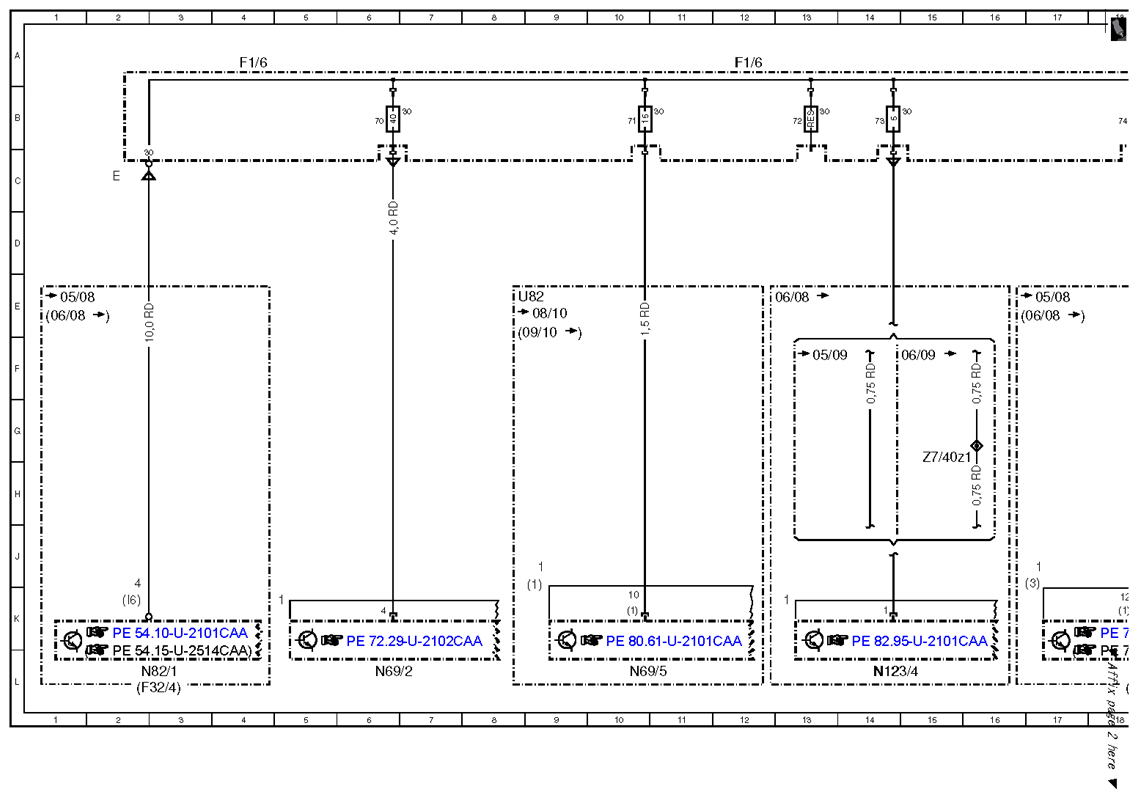

| N82/1 |
Vehicle power supply control unit |
3L |
| U82 |
Valid for KEYLESS GO |
8E |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
36E |
| U967 |
Valid for engine 275.982 |
27E |
| W34/1 |
Ground (electronics - left footwell) |
26H |
| Z7/40z1 |
|
15G |
