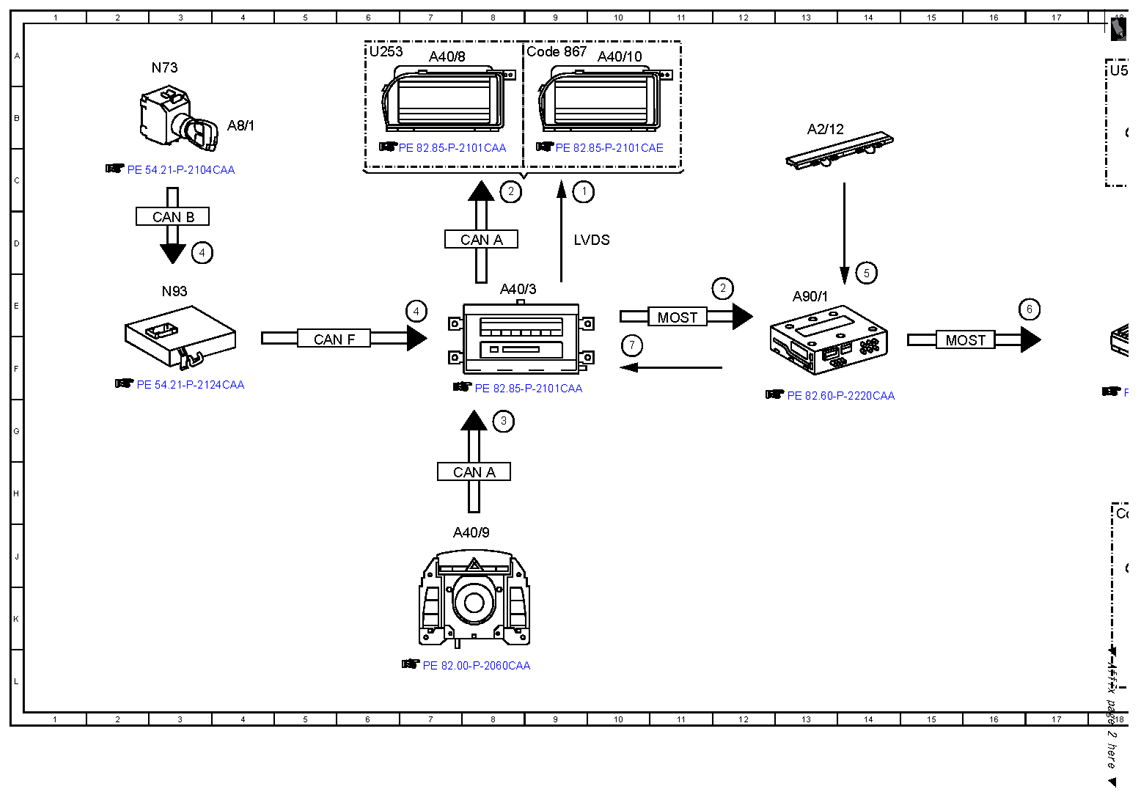

Electrical function diagram for TV mode, function - PE82.85-P-2065-97CAA
MODEL 216 with CODE (863) Digital/analog TV tuner as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Audio/COMAND display, signal | 9C |
| 2 | Switch-on request, signal | 8C |
| 2 | Switch-on request, signal | 12E |
| 3 | 8G | |
| 4 | Circuit 15R/circuit 15, status ON | 3D |
| 4 | Circuit 15R/circuit 15, status ON | 7E |
| 5 | TV antennas, signal | 14E |
| 6 | Audio applications, signal | 17E |
| 7 | Video and TV, signal | 10F |
| 8 | Speaker, actuation | 19H |
| 8 | Speaker, actuation | 19C |
| A2/12 | Rear window antenna amplifier module | 13B |
| A40/10 | SPLITVIEW display | 10A |
| A40/3 | COMAND control unit | 8E |
| A40/8 | COMAND display | 7A |
| A40/9 | Front central operating unit | 8J |
| A8/1 | Transmitter key | 4B |
| A90/1 | TV combination tuner (analog/digital) | 13E |
| CAN A | Telematics CAN | 8D |
| CAN A | Telematics CAN | 8H |
| CAN B | Interior CAN | 3D |
| CAN F | Central CAN | 6E |
| Code 810 | Sound system | 18H |
| Code 867 | SPLITVIEW | 9A |
| H4/1 | Left door speaker group | 19B |
| H4/17 | Bass module speaker | 19C |
| H4/17 | Bass module speaker | 19J |
| H4/2 | Right door speaker group | 19B |
| H4/27 | Center cockpit speaker (centerfill) | 19C |
| H4/27 | Center cockpit speaker (centerfill) | 19J |
| H4/3 | Left door rear speaker | 19B |
| H4/3 | Left door rear speaker | 19J |
| H4/4 | Right door rear speaker | 19B |
| H4/4 | Right door rear speaker | 19J |
| H4/54 | Left rear surround speaker | 19K |
| H4/57 | Right rear surround speaker | 19K |
| H4/68 | Left door Sound tweeter | 19K |
| H4/69 | Right door Sound tweeter | 19K |
| H4/72 | Left door Sound woofer and midrange speaker group | 19L |
| H4/73 | Right door Sound woofer and midrange speaker group | 19L |
| LVDS | Low voltage differential signal | 10D |
| MOST | Media Oriented System Transport | 11E |
| MOST | Media Oriented System Transport | 15E |
| N73 | EIS [EZS] control unit | 3A |
| N93 | Central gateway control unit | 3E |
| N93/1 | Audio tuner control unit | 19E |
| U253 | Not valid for SPLITVIEW display | 6A |
| U500 | Not valid for Sound System | 18A |
