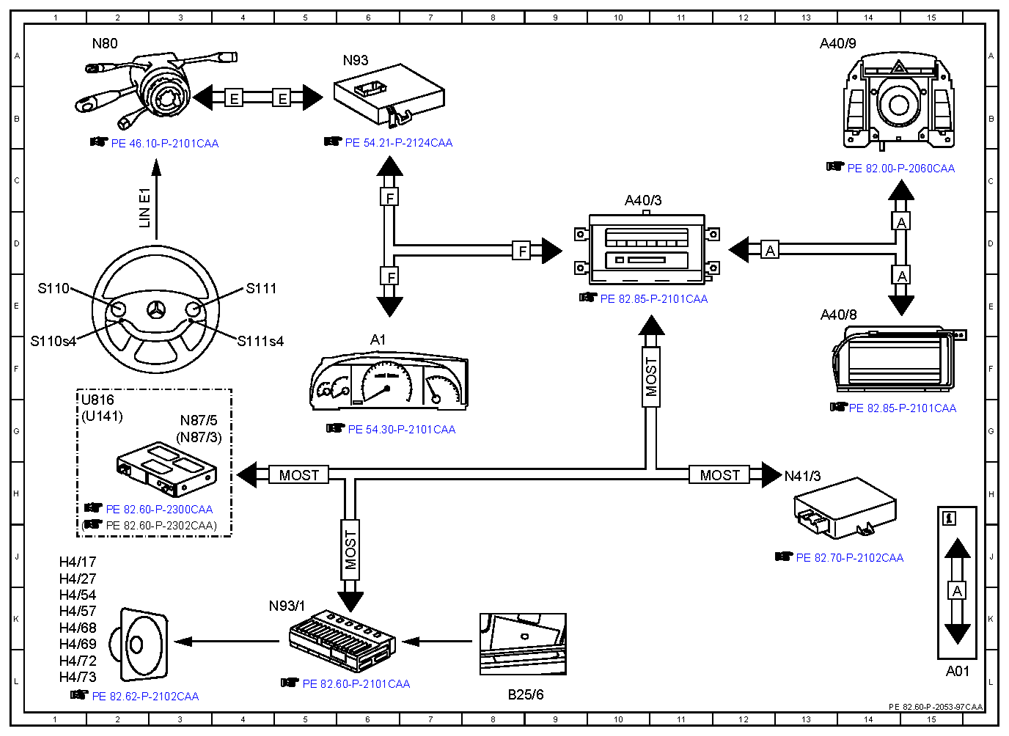

Electrical function schematic, sound - PE82.60-P-2053-97CAA
MODEL 216 up to model year 08/YoM 07 Surround system
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 15L |
| A1 | Instrument cluster | 6F |
| A40/3 | COMAND control unit | 11C |
| A40/8 | COMAND display | 14E |
| A40/9 | Front central operating unit | 14A |
| B25/6 | Sound amplifier microphone | 8L |
| H4/17 | Bass module speaker | 1J |
| H4/27 | Center cockpit speaker (centerfill) | 1J |
| H4/54 | Left rear surround speaker | 1K |
| H4/57 | Right rear surround speaker | 1K |
| H4/68 | Left door Sound tweeter | 1K |
| H4/69 | Right door Sound tweeter | 1K |
| H4/72 | Left door Sound woofer and midrange speaker group | 1L |
| H4/73 | Right door Sound woofer and midrange speaker group | 1L |
| LIN E1 | Steering LIN | 3D |
| MOST | Media Oriented System Transport | 5J |
| MOST | Media Oriented System Transport | 4H |
| MOST | Media Oriented System Transport | 11H |
| MOST | Media Oriented System Transport | 10F |
| N41/3 | Voice control system (VCS [SBS]) control unit | 12H |
| N80 | Steering column module | 2A |
| N87/3 | Digital Audio Broadcasting control unit | 3G |
| N87/5 | SDAR control unit | 3G |
| N93 | Central gateway control unit | 6A |
| N93/1 | Audio tuner control unit | 5K |
| S110 | Left multifunction steering wheel button group | 1E |
| S110s4 | "Back" and SBS off button | 1F |
| S111 | Right multifunction steering wheel button group | 4E |
| S111s4 | VCS [SBS] on button | 4F |
| U141 | Valid for Digital Audio Broadcasting | 1G |
| U816 | Valid for satellite radio (SDAR) | 1G |
