Remove/install blocking circuit of rear window antenna - AR82.62-P-7200SX
MODEL 216.3, 221.0/1

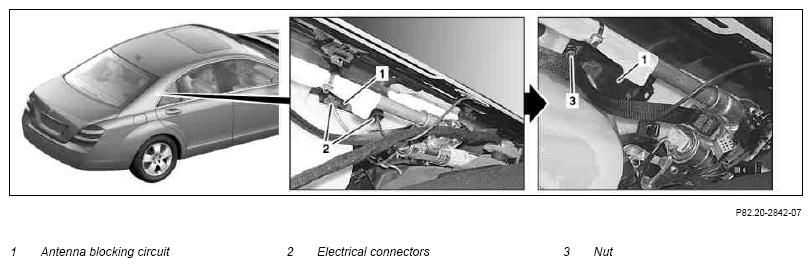

Shown on model 221.0
| Remove/install | |||
| 1 | Remove right C-pillar paneling at top | Model 221.0/1 without code (Z07) Top protection. | AR68.30-P-4490SX |
| Model 221.1 with code (Z07) Top protection. | AR68.30-P-4490SXS | ||
| Model 216.3 | AR68.30-P-4490SC | ||
| 2 | Disconnect electrical connectors (2). | ||
| 3 | Unscrew nut (3) and remove antenna trap circuit (1) | ||
| 4 | Install in the reverse order |
