Retrofit video jack - AZ82.60-P-0022SC
MODEL 216.3
| Removing | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 1 | Disconnect battery ground line | ||
| AR54.10-P-0003SX | |||
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 2 | Remove COMAND controller unit | AR82.85-P-1100SC | |
| 3 | Remove glove compartment | ||
| AR68.10-P-1400SX | |||
| Install | |||

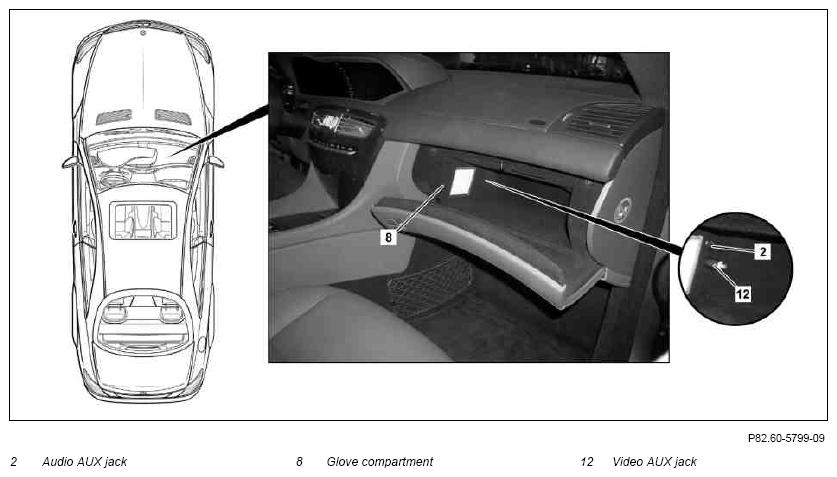

| 4 | Retrofit AUX jack wiring harness | If no audio AUX jack (2) is installed, it must be retrofitted. |
AZ82.60-P-0021-01SC |
| 5 | Retrofit video jack wiring harness | AZ82.60-P-0022-01SC | |
| 6 | Install in the reverse order | ||
| 7 | Activate audio AUX jack (2) and video AUX jack (12) using STAR DIAGNOSIS | STAR DIAGNOSIS Compact diagnosis system for passenger cars, Order number 6511 1801 00 |
|
| 8 | Carry out function check |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 31 18 | Audio AUX jack wiring harness (only if no audio AUX jack is available) | As required |
| B6 782 31 21 | Wiring harness for video AUX jack | 1 |
